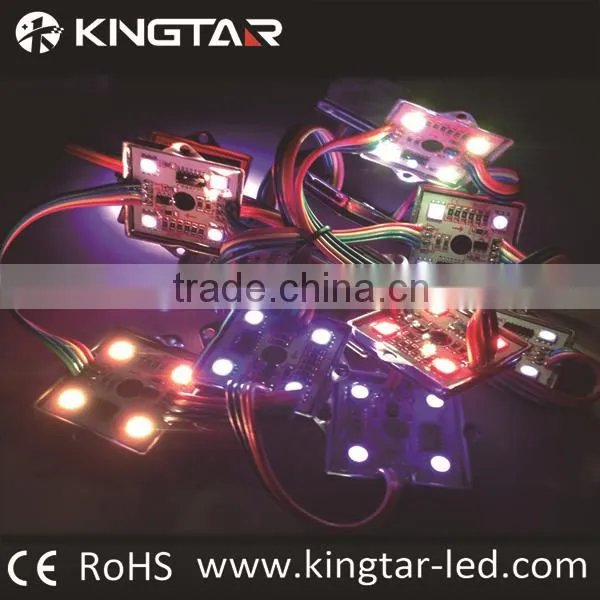

4 LED digital RGB LED Module WS2801

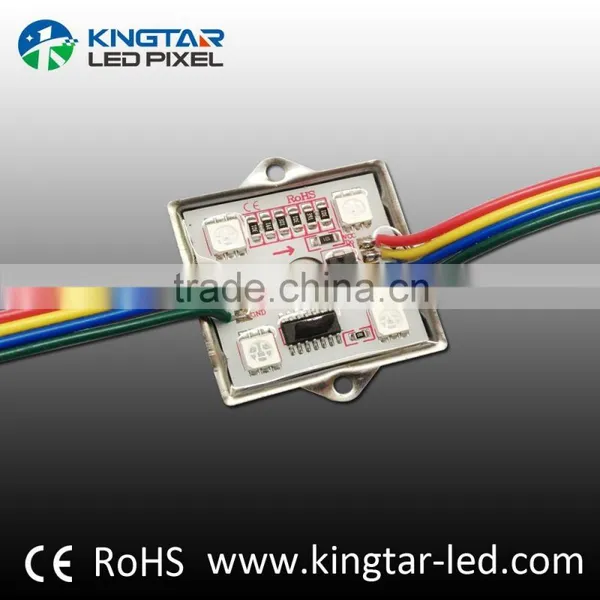

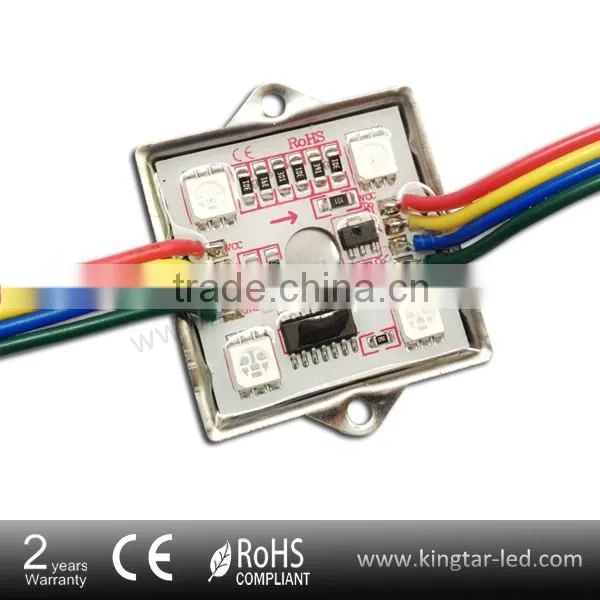

This digital RGB module has 4pcs SMD5050,metal case to protect the PCB and perfect heat radiating.Each module back uses the 3M glue so that it very easy for installation. Each module has its own WS2801 drive IC.It can perfectly work with DMX controller,SPI (SD card controller) etc.
SEPCIFICATIONS:
| Model number | KT-3636RGB-2801 |
|---|---|
| Name | RGB LED Pixel Module |
| Brand | KINGTAR |
| IC Chip | WS2801 |
| Dia | 36*36*4mm |
| Material | Metal case |
| Energy Rating | A |
| Color | Full color |
| LED Type | SMD 5050 |
| LED Qty | 4pieces/pixel |
| Watts | 0.96W |
| IP Rate | Waterproof IP66 |
| Working life | 50,000hours |
| Colour Rendering | 80 |
| Controller | SD card controller |
| Certificate | CE,RoHS |
| Warranty | 2 years |
| Packing | 20modules per string |
CONNECTION:
It can work with SD card controller (T-1000S,T-200K,T-8000),DMX controller and Arduino

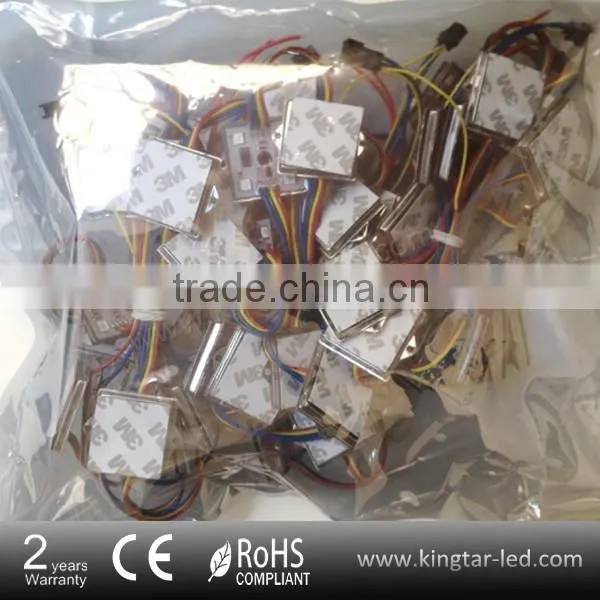

1.20pcs per strand,100pcs/anti-bag,1000pcs per carton
2.DHL,FedEx,UPS,EMS door to door fast shipping
3.3-7 working days production leading time.
1.2 years 100% warranty
2.Discount for large order and regular customers
3.New product free samples,extra spare leds
4.Reply inquiry in 12 hours
Kingtar® is a trusted brand; we invest extensively to ensure the highest possible quality control standards whilst also sourcing the latest LED technology available. We pride ourselves on quality and innovation, offering an extensive standard 2 YEAR WARRANTY (which can be extended to 5 years for free) to ensure you are 100% satisfied with your purchase.
