Help CenterDW9060 Ceramic Engraving Machine
Related Products
Specifications
Industrial circulating water coolerSemiconductor module
Professional industrial control computer
More stability and longer

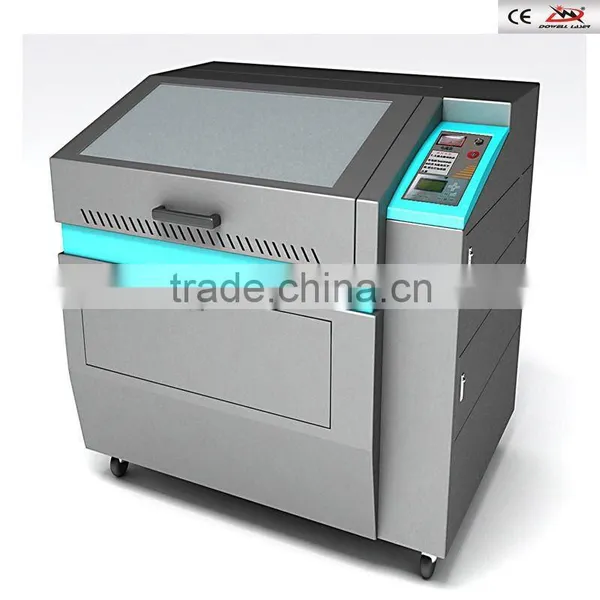

DW9060 LASER ENGRAVING MACHINE
Product Feature
1. The space between two heads can be freely adjusted
2. Adopting imported ball screw and Taiwan linear guild rail
3. Very heavy duty design of machine bed ,the performance of the machine is vmore stable and smooth .
Application Field
It is applied to small craft processing and a variety of engraving graphics and text on double –color board ,wood,bamboo ,and acrylic ,cloth and other nonmetal material.
Technical Parameter
Laser Generator |
Hermetic and detached CO2 laser tube |
Laser Power |
80 W(60w,100w,150w for option) |
Cutting Area |
900*600mm |
Positioning Precision |
±0.01mm |
Control System |
Speedy DSP |
Supporting Format |
plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw |
Engraving Speed |
1000mm/s |
Cutting Speed |
500mm/s |
Interface |
LCD Screen and USB interface |
Working Voltage |
AC220V ±10%,50Hz |
Running Environment |
0-45°, Humidity: 5%-95% |
Warranty |
One year, except consumable goods |
Support |
by calling or email or tranning |
....
