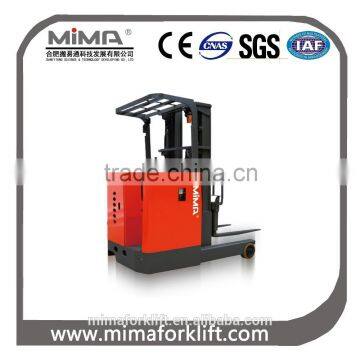

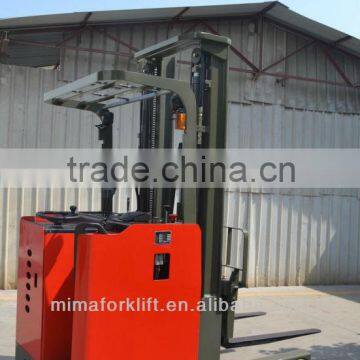

1.0-30T Electric Reach Forklift Stand-on AC DC

Name: 1.0-30T Electric Reach Forklift Stand-on AC DC
Brand: MIMA
SKU: 108458347
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

China

Brand Name:

MIMA

Hefei Banyitong Science & Technology Developing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Nanjing Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin China

Brand Name MIMA

Model Number TF15-35

Type Other

Power Souce AC Motor

Rated Loading Capacity 1500kg

Max. Lifting Height 3500mm

Min. Lifting Height 35mm

Fork Length 1150mm

Fork Width 550mm

Certification ISO9001:2008

Specifications

1.0-30T Electric Reach Forklift Stand-on(AC/DC)
Model TF
Loading capacity: 1.5-3.0ton
Lifting height: 3000-7200mm

1.0-30T Electric Reach Forklift Stand-on(AC/DC)

1	Description	Electric Reach Truck
2	Model	TF15-30		TF20-30		TF25-30
3	Load capacity Kg	1500		2000		2500
4	Load center mm	500		500		500
5	Max. lifting height mm	3000		3000		3000
6	Tilting angle(forward-backward)	3/5		3/5		3/5
7	Wheel type	Polyurethane
8	Mast forwarding length mm	560		685
9	Fork size(LxW) mm	107010035		107010045
10	Width of forks mm	662		780		780
11	Overall length mm	2266		2468		2468
12	Overall width mm	1098		1258		1258
13	Overall height(mast closed) mm	2260		2260		2260
14	Overall height(fork raised) mm	3885		3875		3875
15	Overhead guard height mm	2260		2260		2260
16	Side shifter spread(option) mm	50		50		50
17	Outside turning radius mm	1625		1965		1965
18	Ast(pallet size:1000*1000) mm	2662		2895		2895
19	Max. walking speeds km/h	7.5/8.5		7.0/8.0		7.0/8.0
20	Lifting speeds(load/unload) mm/s	117/243		110/243		110/243
21	Grade abitity %	≤10		≤10		≤10
22	Driving wheel mm	Φ343*108
23	Front wheel mm	Φ267*114
24	Balance wheel mm	Φ180*76
25	Min under-clearance mm	80
26	Service brake	Mechanical
27	Parking brake	Mechanical
28	Battery V/Ah	48/300	48/400		48/400
29	Charger V/A	48/40	48/50		48/50
30	Driving motor Kw	5.5(AC)	5.5(AC)		5.5(AC)
31	Lifting motor Kw	6.3	7.5		7.5
32	Total weight( with battery) Kg	~2300		~2600		~2600
