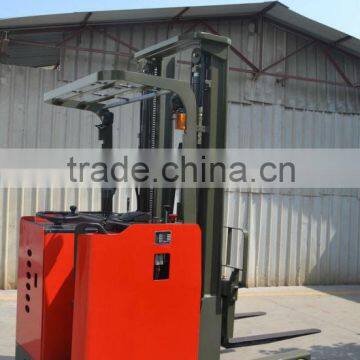

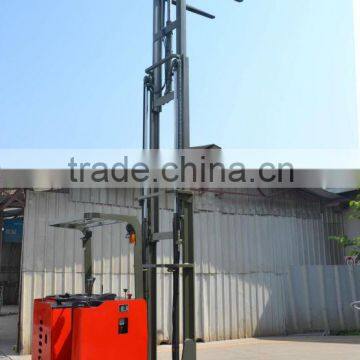

Electric Reach Stacker with Oil-way stop Valve :
AC driving motor, Rated load capacity: 2500kg, lift height: 7200mm, it's popular in every industries;
1. Safety Device for neutral position to increase the safety of forklift;
2. High Strength frame to protect the operator;
3. Oil-way stop Valve,to protect the operator and goods;
4. AC electric controller with multiple automatic safety protection settings, to reduce the operation accident by misoperation;
5. Inching capacity, the forklift can finish the extremely adjustment during moving;
6. With Imported AC motor without Carbon brush, dustproof, damp proofing,long working life, lower use-cost, controlled voltage/frequency;
7. To use water-proof and dust-proof design for all circuit, to aviod the shortcircuiting happened;
8. To use intelligent charger, auto analysis the residual energy and optimizing the charging process, without manual operation and extend the battery working life effectivly;
9. High Speed Limited, the forklift will reduce the lift speed when lift to a high position;

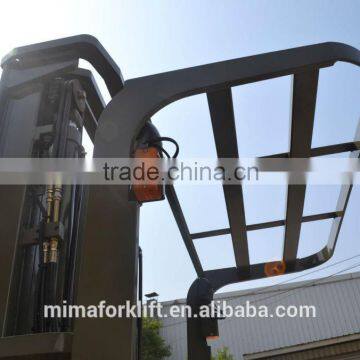

10. High Strength overhead guard to protect the operator;
Description |
TF15-30 |
TF20-30 |
TF25-30 |
Rated Capacity (KG) |
1500 |
2000 |
2500 |
Operate Type |
Stand-on |
Stand-on |
Stand-on |
Max. Lifting Height (MM) |
3000 |
3000 |
3000 |
Min. Turning Radius (MM) |
1625 |
1965 |
1965 |
Min. Stacking Aisle---mm (1000*1000 Pallet) |
2622 |
2895 |
2895 |
Max Travel Speed km/h-laden/unladen |
7.5/8.5 |
7.0/8.0 |
7.0/8.0 |
Load center MM |
500 |
500 |
500 |
Fork Dimensions-L/W/T---mm---8. |
1070*100*35 |
1070*100*45 |
1070*100*45 |
Max. Gradeability ---% |
10 |
10 |
10 |
Lifting Speed (MM/S)-laden/unladen |
117/243 |
110/243 |
110/243 |
Overall Length (MM) |
2266 |
2468 |
2468 |
Overall Width (MM) |
1098 |
1258 |
1258 |
Height-Overhead guard--mm |
2320 |
2320 |
2320 |
Height---Mast Lowered(MM) |
2080 |
2084 |
2084 |
Height-Mast Extended w/ Load-Backrest -mm |
3885 |
3875 |
3875 |
Height--Free Lift --mm |
100 |
100 |
100 |
Tilt Angle----Upward/Downward--deg. |
3/5 |
3/5 |
3/5 |
Fork Spread Range (MM) |
220-662 |
247-780 |
247-780 |
Reach Stroke |
560 |
685 |
685 |
Min Ground Clearance--mm |
80 |
80 |
80 |
Wheel Type |
Polyurethane Solid Tyre |
||
Driving Wheel (MM) |
Φ343×108 |
Φ343×108 |
Φ343×108 |
Balance Wheel (MM) |
Φ180×76 |
Φ180×76 |
Φ180×76 |
Front Wheel (MM) |
Φ267×114 |
Φ267×114 |
Φ267×114 |
Battery V/AH- "TONGBA"BRAND |
48V /300 AH |
48V/400 AH |
48V/400 AH |
Service Brake |
MECH. |
||
Parking Brake |
MECH. |
||
Charger-Intelligent |
48V/40A |
48V/50A |
48V/50A |
Driving Motor (KW) |
5.5 (AC) |
5.5 (AC) |
5.5(AC) |
Lifting Motor (KW) |
6.3 |
7.5 |
7.5 |
