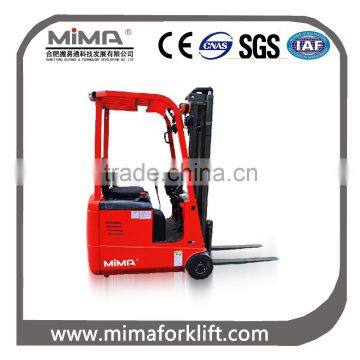

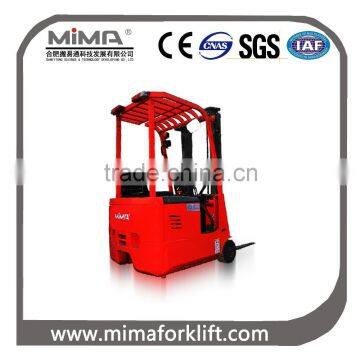

Help Center1.5t Small Electric Forklift (AC Type)
US$ 10,000 - 25,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
MIMA
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1ton to 3.5ton Electric Forklift Truck With CE Certificate Full ACNegotiableMOQ: 1 Set -
15 Ton Forklift TK4135US$ 1,000 - 200,000MOQ: 1 Unit
-
10 Ton Forklift TK4135US$ 1,000 - 200,000MOQ: 1 Unit
-
20 Ton Forklift TK4135US$ 1,000 - 200,000MOQ: 1 Unit
-
Solid Tyre for Forklift TK315US$ 10,000 - 30,000MOQ: 1 Unit
Condition
New
Place of Origin
Anhui, China
Brand Name
MIMA
Model Number
TKA
Type
Other, 3-wheel forklift
Power Souce
AC Motor
Rated Loading Capacity
1500kg
Max. Lifting Height
4000mm
Min. Lifting Height
2500mm
Fork Length
920mm
Fork Width
100mm
Overall Dimensions
920*100*45mm
Certification
SGS
After-sales Service Provided
Overseas third-party support available
3-wheel small electric forklift with AC driving motor;
High-power battery;
Safe-Turning control System;
Small turning radius;
Max Reated Capacity:1500kg;
Max. Lift Hieght: 4500mm;
|
Descriptiom |
TKA10-30 | TKA15-30 |
| Rated Capacity (KG) | 1000 | 1500 |
| Operator Type | Seated | Seated |
| Max. Lifting Height (MM) | 3000 | 3000 |
| Min. Turning Radius(MM) | 1170 | 1275 |
| Min. Stacking Aisle---mm (1200*1200 Pallet) --AST | 2870 | 2975 |
| Max Travel Speed km/h-laden/unladen | 6.5/7.5 | 6.0/7.0 |
| Load center MM | 500 | 500 |
| Fork Dimensions-L/W/T---mm | 920*100*35 | 920*100*35 |
| Max. Gradeability ---%--Laden/unladen | 8/10 | 8/10 |
| Lifting Speed (MM/S)-laden/unladen | 125/170 | 125/170 |
| Overall Length (MM) | 2265 | 2370 |
| Length-to Fork Face --mm | 1345 | 1450 |
| Overall Width (MM) | 915 | 1055 |
| Height-Overhead guard--mm | 1965 | 1965 |
| Height---Mast Lowered(MM) | 2065 | 2065 |
| Height-Mast Extended w/ Load-Backrest -mm | 3545 | 3545 |
| Height--Free Lift --mm | 0 | 0 |
| Height--seat to overhead guard ---mm | 1000 | 1000 |
| Tilt Angle----Forward/Backward--deg. | 2/4 | 2/4 |
| Min Ground Clearance--mm | 90 | 90 |
| Front Tyre --(MM) | Ø305×127 | Ø305×140 |
| Rear Tyre --- (MM) | Ø267×127 | Ø267×127 |
| Service Brake | Hydraulic | |
| Parking Brake | Hand | |
| Battery V/AH- "TONGBA"BRAND | 24V /360 AH | 24V/480 AH |
| Battery-Weight ---kg | 295 | 370 |
| Charger-Intelligent | 24V /40 A | 24 V/50 A |
| Driving Motor (KW) | 2.8 | 2.8 |
| Steering Motor (KW) | 0.75 | 0.75 |
| Lifting Motor (KW) | 3.5 | 3.5 |
| Service Weight ---kg --incl. Battery | 1950 | 2170 |
If you have any requirements or suggestion on that,pls don't hesitate to contact with us.
