Specifications

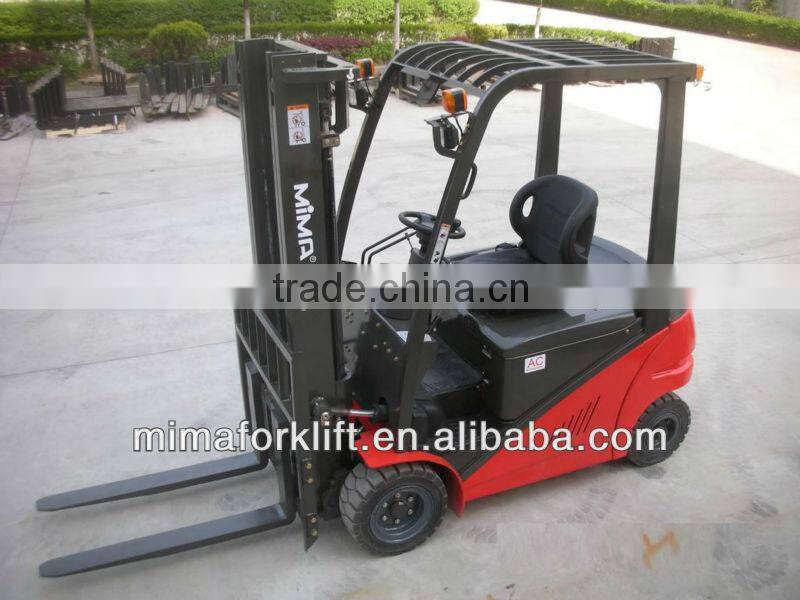

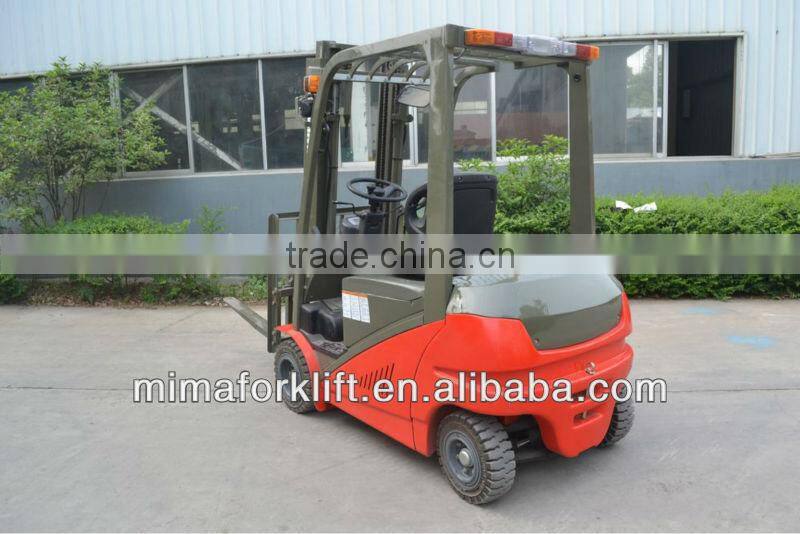

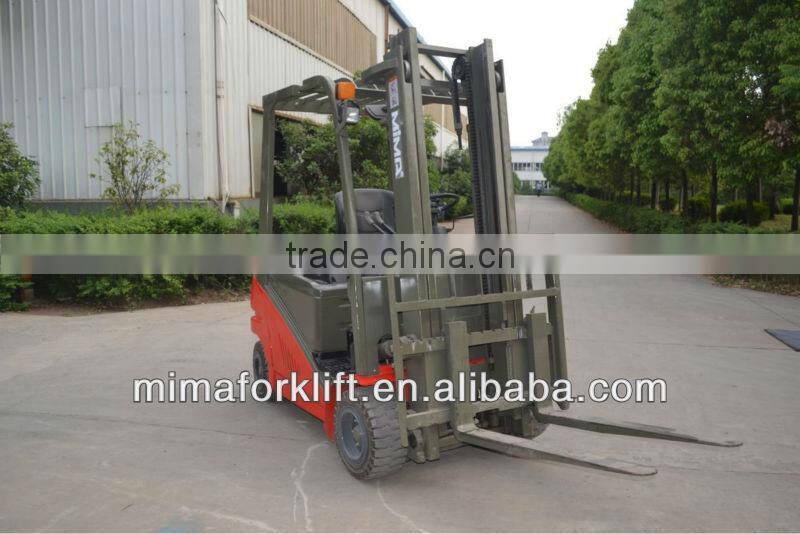

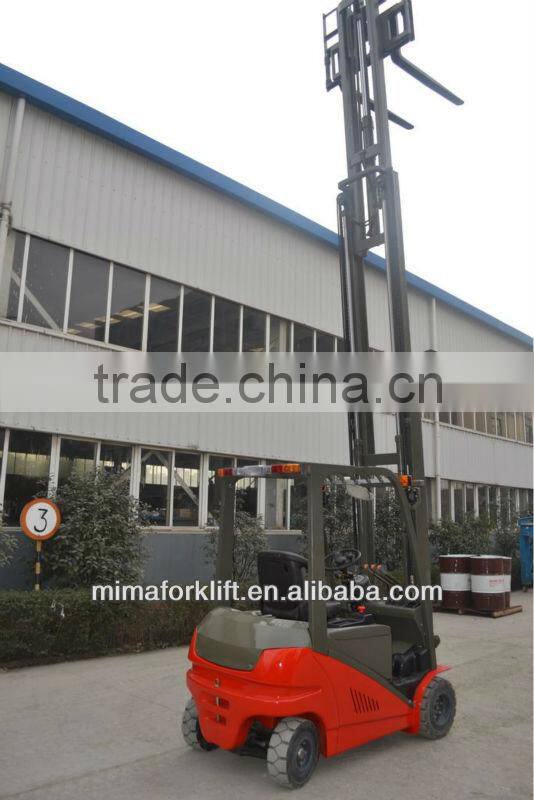

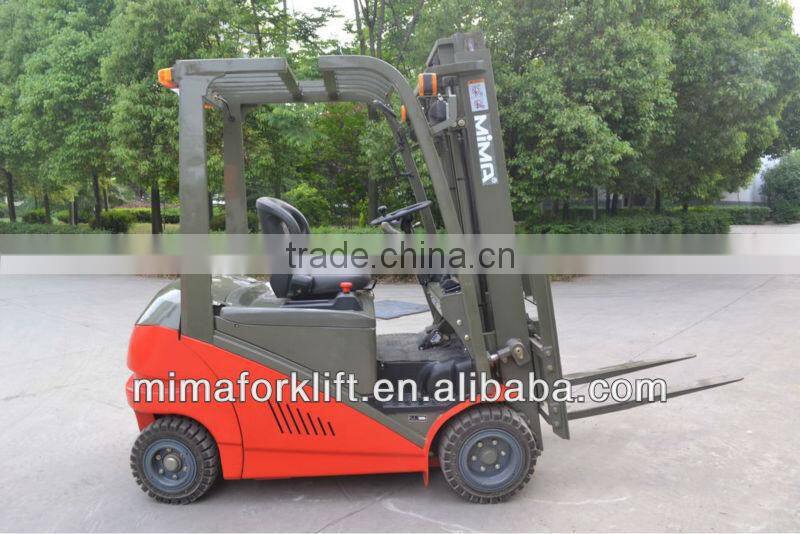

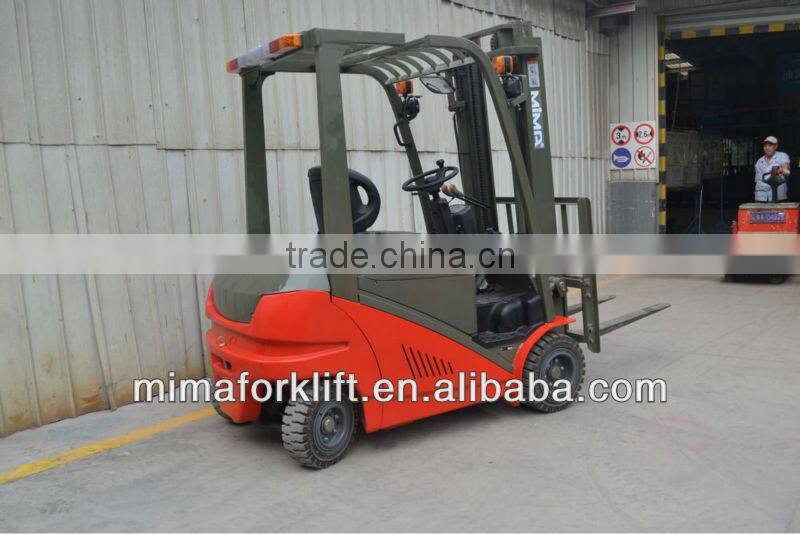

TK full AC electric forklift ,which could load 2 T ~ 5 T, lifting height 6000 mm. the drive and lift which could use AC motor.Description:
Full AC power system, with lower maintanence cost, better water-proof technology, the perfect steering stability during the hig-speed working etc, to reduce the operational cost;
1. Rated Load capcity: 2500kg, lift height: 6000mm;
2. Better stability: Low layout for battery, low center of gravity,
3. Water-proof connector;
4. Full hydraulic power-assisted steering system,easy to steering and save the energy;
5. Aeroseal wet disc type brake;
6. Curves safe control: the speed will automatic reduced when turning, to aviod the possibility of rollover;
7. Regenerative braking function to increase the working hours for forklift;
8. Better Durability: unitary frame with better strength and rigidity;
9. Ergonomics design: comfortable seat, ample inner room and wide visibility;
10. Wide angle centre rearview mirror with wide visibility; Comfortable seat with damping function.
1 |
Description |
AC electric forklift truck (Double driving) |
|
2 |
Model |
TK420-30 |
TK425-30 |
3 |
Load capacity (Kg) |
2000 |
2500 |
4 |
Load center (mm) |
500 |
500 |
5 |
Max. lifting height (mm) |
3000 |
3000 |
6 |
Tilting angle (forward- backward) deg |
6/7 |
6/7 |
7 |
Free lift (mm) |
0 |
0 |
8 |
Wheel type |
Solid |
Solid |
9 |
wheel (x=driVing wheel) |
2x/2 |
2x/2 |
10 |
Fork size (LxWxT) (mm) |
1070x120x40 |
1070x120x40 |
11 |
Fork spread (mm) |
920 |
920 |
12 |
Overall length(with forks) (mm) |
3250 |
3350 |
13 |
Overall width (mm) |
1160 |
1160 |
14 |
Overall height mast closed (mm) |
2122 |
2122 |
15 |
Overall height fork raised(with backrest) (mm) |
3915 |
3915 |
16 |
Overhead guard height (mm) |
2050 |
2050 |
17 |
Turning radius (mm) |
1790 |
1790 |
18 |
Max. walking speeds (Km/h) |
14 |
14 |
19 |
Grade abitity % |
15 |
15 |
20 |
Front tire |
200/50-10 |
200/50-10 |
21 |
Rear tire |
16x6-8 |
21x8-9 |
22 |
Ground clearance (mm) |
95 |
95 |
23 |
Service brake |
hydraulic |
hydraulic |
24 |
Parking brake |
mechanical |
mechanical |
25 |
Battery V/Ah |
48/600 |
48/600 |
26 |
Charger V/A |
48/70 |
48/70 |
27 |
Driving motor (Kw) |
4.5*2 |
4.5*2 |
28 |
Lifting motor (Kw) |
8.6 |
8.6 |
29 |
Control system |
MOSFET |
MOSFET |
