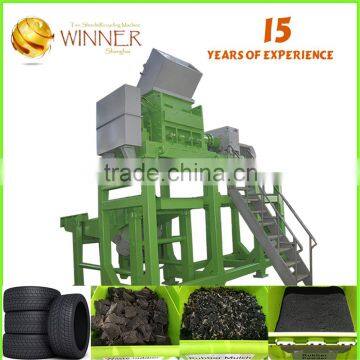

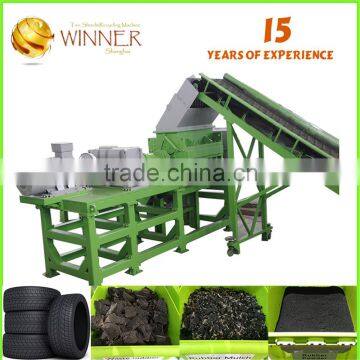

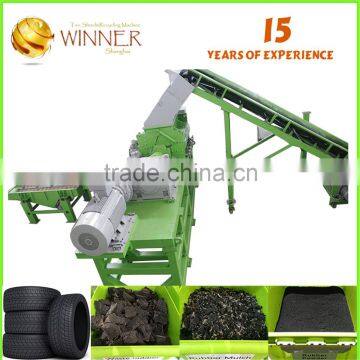

Bicycle Tire To Truck Tire Used Plastic Grinding Granulator Machine
<
| Equipment Specifications -grater | |||||||
| TR2663 | TR2147 | TR1740 | |||||
| Motor Specifications | Electric | Electric | Electric | ||||
| Number of Motors | 1 | 1 | 1 | ||||
| HP | 315KW | 132KW | 90KW | ||||
| Voltage | as per customer request | ||||||
| Capacity | 3-6t/h | 1.5-3t/h | 1-1.5t/h | ||||
| Product Size Range | 12mm-25mm | 12mm-25mm | 12mm-25mm | ||||
| Cutting Chamber LxW | 697x1562 | 742x1200 | 550x1000 | ||||
| Equipment Dimensions | 6217x2168x3561 | 1412x902x1410 | 1182x700x1255 | ||||
| Hopper Opening LxWxH | 1726x877x906 | 1412x902x1410 | 1182x700x1255 | ||||
| Equipment Weight | 24000kg | 6100kg | 4200kg | ||||
| TR1732 | TR1332 | TR1324 | |||||
| Motor Specifications | Electric | Electric | Electric | ||||
| Number of Motors | 1 | 1 | 1 | ||||
| HP | 75KW | 55KW | 45KW | ||||
| Voltage | as per customer request | ||||||
| Capacity | 700-1000kg/h | 500-700kg/h | 300-500kg/h | ||||
| Product Size Range | 12mm-25mm | 12mm-25mm | 12mm-25mm | ||||
| Cutting Chamber LxW | 550x800 | 450x800 | 450x600 | ||||
| Equipment Dimensions | 1995x1980x4105 | 1720x1730x2316 | 1400x1200x2260 | ||||
| Hopper Opening LxWxH | 982x700x1255 | 922x580x916 | 722x580x916 | ||||
| Equipment Weight | 3500kg | 1850kg | 1700kg | ||||
Rubber shredding machine
Advantages of the System
Unique Stop/Auto Reversal Feature – Protects against overfeeding and damage by non-processable items.
Premier Full Turn Key Systems – Plant is manufactured, shipped, installed and ready to start recycling.
Warranty – one of the best warrantees in the industry.
Dura-Shred’s two shaft shredders are designed with an aggressive low RPM, high torque shredding technology.
Granulator
The Granulators are designed to grind the rubber mulch from the Grater into small granules as fine as 10 mesh.
The granules are screened and re-circulated until the desired size is reached.
Due to the design of the our granulator and precise alignment of the blades, this Granulator produces a very uniform cut, high quality granule.
During the granulation process, 99% of the fiber is removed, leaving a contaminant free crumb rubber granulate ready to be further processed or sold.
Miller
Dura-shred's miller is designed for rubber material where a powdered products is required.
Granules of size 1-8mm is fed via feeder to the rotating high speed serrated disk to produce a powder product in the required 30-120mesh range and where the final size is determined by adjustable centrifugal screen.
A. 1 year warranty
B. We will send 2 or 3 engineers to help install the machines.
C. OEM & ODM are available
D. Turn-Key service
E. Rubber samples could be supplied for free
F. Regular return visit
1. How to choose the suitable machine?
Please answer first:
a: What material do you want to shred?
b: What is the usage of the crushing material?
c: How many tons per hour do you demand?
After that, the suitable machine could been introduced to you.
2. What about the shipping and package?
We arrange shipment according to your requirements. It is included in our TURNKEY service.
3. Can I visit your company or factory?
Ofcourse you can.
Our headquarter is in Shanghai city
Our production plant is in Wuxi city, Jiangsu province.
And when you fly to China, we could pick you up and afford your local transportation charges.
4. What's the relationships between tqwinner and dura-shred?
They are 2 brands belonging to the same group. Dura-Shred is registered in Wuxi; Qqwinner in Shanghai. Our headoffice and marketing team are located in Shanghai.
