Home > Products > Granulator > Waste Crusher Rrecycled tire rubber buckets Granules

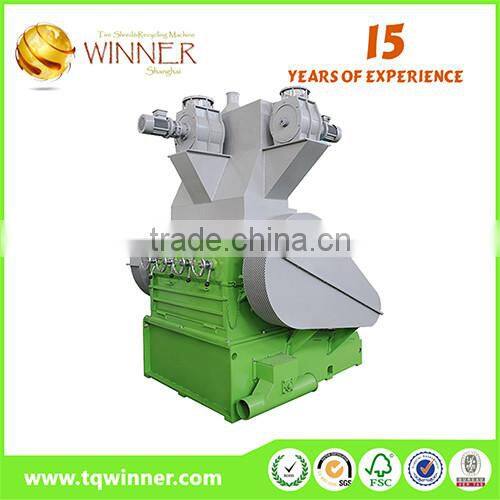

Waste Crusher Rrecycled tire rubber buckets Granules

Name: Waste Crusher Rrecycled tire rubber buckets Granules
Brand: Dura-Shred
Availability: InStock

FOB Price

USD $10,000 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 5 Set / Sets per Month
Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Rubber Cutting Machine
Place of Origin	Jiangsu, China	Brand Name	Dura-Shred
Model Number	TSQ2147X	Voltage	380V, as per customer request
Power(W)	90KW	Dimension(LWH)	2150x2250x2950mm
Weight	5600kg	Certification	CE&ISO, CE&ISO
Warranty	1 year, Life-Long	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Waste Crusher Rrecycled tire rubber buckets Granules

Equipment Specifications -granulator

	TSQ2147X	TSQ1740X	TSQ1732X
Motor Specifications	Electric	Electric	Electric
Number of Motors	1	1	1
HP	90KW	45KW	37KW
Voltage	as per customer request
Capacity	800-1500kg/h	500-800kg/h	300-500kg/h
Product Size Range	1mm-6mm	1mm-6mm	1mm-6mm
Cutting Chamber LxW	742x1200	580x1000	580x800
Equipment Dimensions LxWxH	2150x2250x2950	1765x1900x2435	1765x1660x2435
Hopper Opening LxWxH	895x1434x1160	602x994x916	602x794x916
Equipment Weight	5600kg	3300kg	2950kg

Rubber shredding machine

Advantages of the System

Exclusive Control System - Controls and operates the entire plant from its centrally located position and provides instant visibility to what each machine is doing in real time.

Unique Stop/Auto Reversal Feature – Protects against overfeeding and damage by non-processable items.

Premier Full Turn Key Systems – Plant is manufactured, shipped, installed and ready to start recycling.

Warranty – one of the best warrantees in the industry.

Double Shaft Shredder
Dura-Shred’s two shaft shredders are designed with an aggressive low RPM, high torque shredding technology.

The shredder blade thickness ranges from 25 mm to 152 mm (1”-6”) depending on the type of tires, throughput, and desired end product.

The biggest shredder can process OTR tires, large truck tires, and car tires at a rate of up to 20 tons per hour.

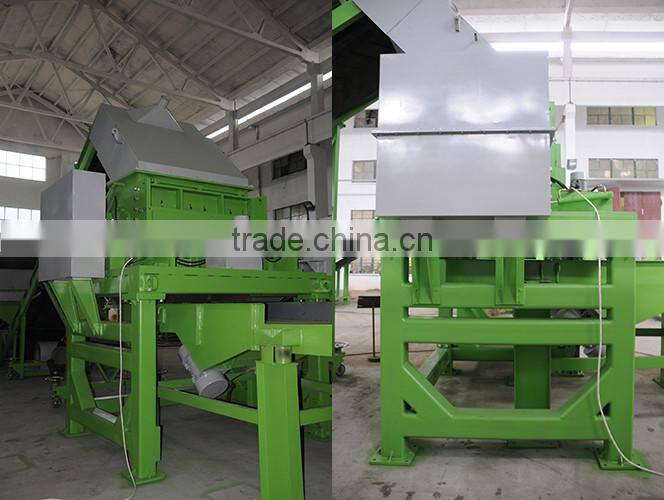

Grater

The Grater is the ultimate machine for mid-stream grinding and steel separation.

1) It is specifically designed to take pre-shredded tires chips and produce between 10-30mm wire free rubber chip.

2) The Grater and can process up to 6 tons of input per hour.

3) The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber.

4) Another unique feature of this machine is the ability to turn the knives once before having to send them to be sharpened or replaced, minimizing operating costs.

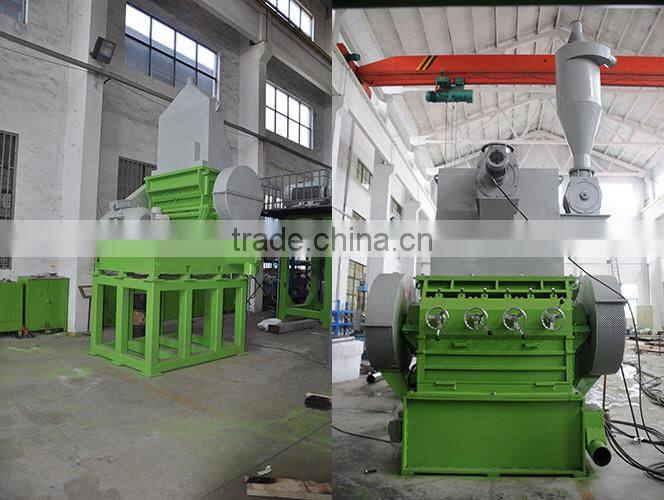

Granulator
The Granulators are designed to grind the rubber mulch from the Grater into small granules as fine as 10 mesh.

The granules are screened and re-circulated until the desired size is reached.

Due to the design of the our granulator and precise alignment of the blades, this Granulator produces a very uniform cut, high quality granule.

During the granulation process, 99% of the fiber is removed, leaving a contaminant free crumb rubber granulate ready to be further processed or sold.

Miller
Dura-shred's miller is designed for rubber material where a powdered products is required.

Granules of size 1-8mm is fed via feeder to the rotating high speed serrated disk to produce a powder product in the required 30-120mesh range and where the final size is determined by adjustable centrifugal screen.

Company Information

Certifications

Background Info

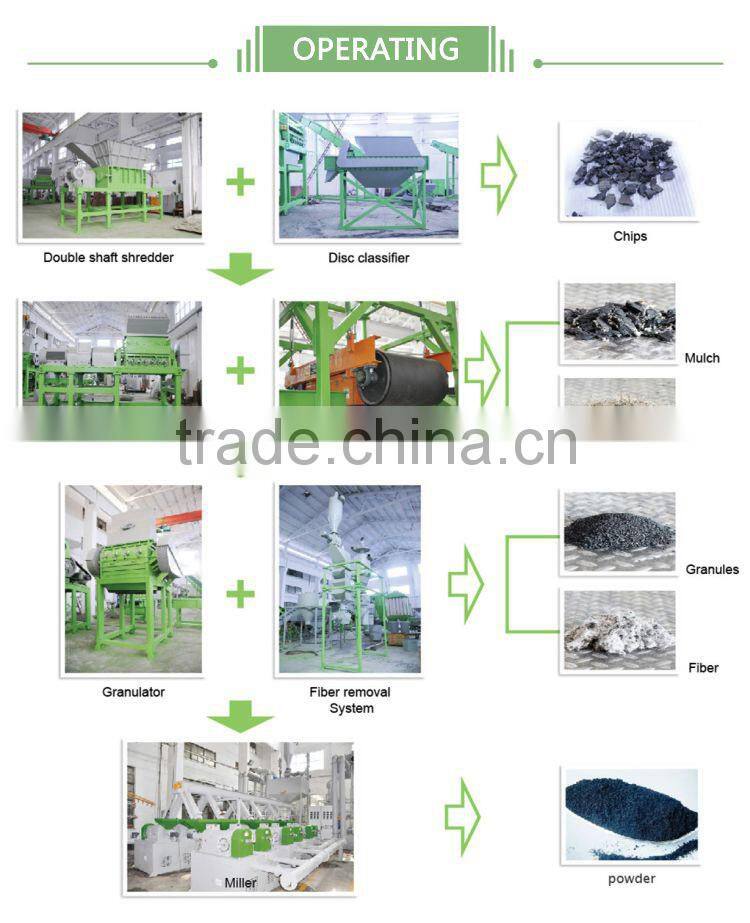

Operation

Application

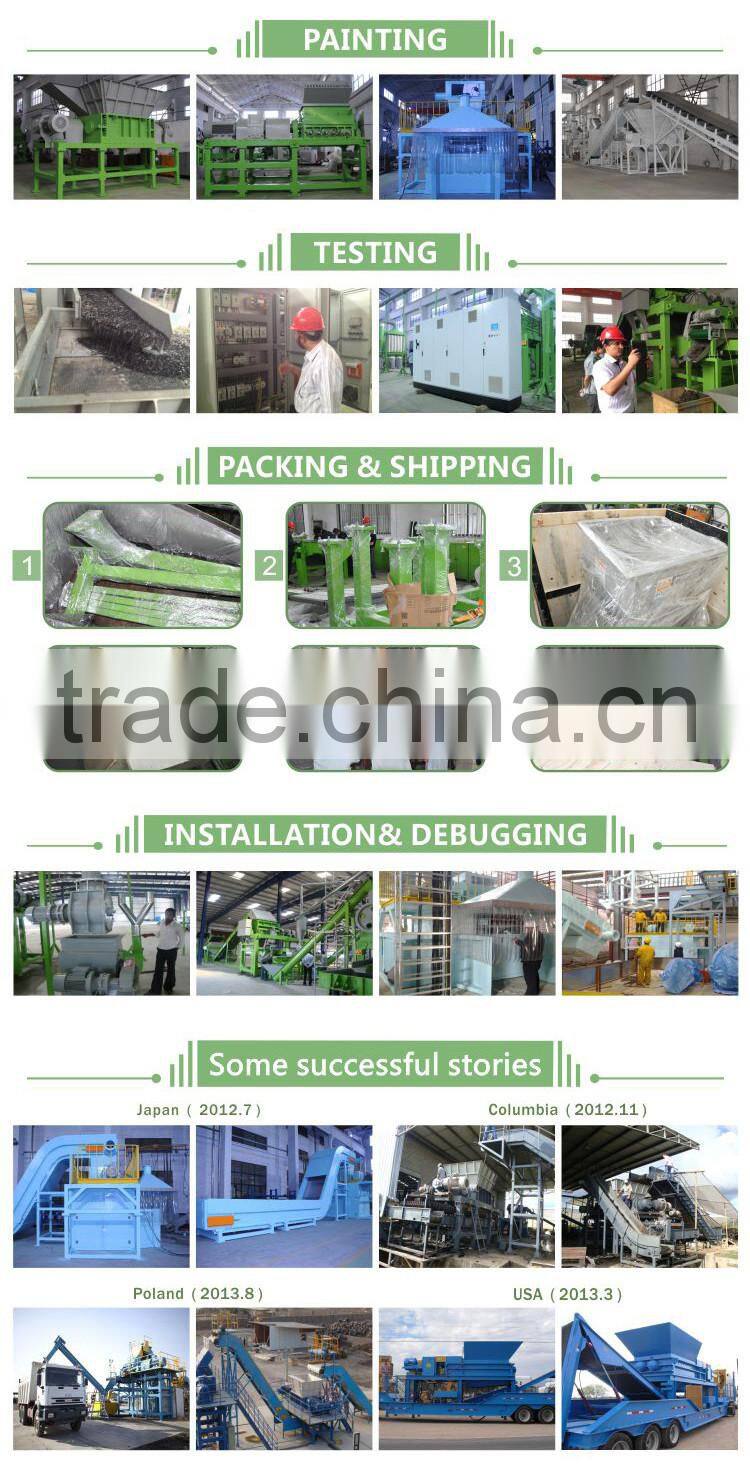

Our Services

A. 1 year warranty

B. We will send 2 or 3 engineers to help install the machines.

C. OEM & ODM are available

D. Turn-Key service

E. Rubber samples could be supplied for free

F. Regular return visit

FAQ

1. How to choose the suitable machine?

Please answer first:

a: What material do you want to shred?

b: What is the usage of the crushing material?

c: How many tons per hour do you demand?

After that, the suitable machine could been introduced to you.

2. What about the shipping and package?
We arrange shipment according to your requirements. It is included in our TURNKEY service.

3. Can I visit your company or factory?

Ofcourse you can.

Our headquarter is in Shanghai city

Our production plant is in Wuxi city, Jiangsu province.

And when you fly to China, we could pick you up and afford your local transportation charges.

4. What's the relationships between tqwinner and dura-shred?

They are 2 brands belonging to the same group. Dura-Shred is registered in Wuxi; Qqwinner in Shanghai. Our headoffice and marketing team are located in Shanghai.
