Recycle Plastic Granules Making Machine Price

Name: Recycle Plastic Granules Making Machine Price
Brand: Dura-Shred
Price: USD $10,000 - 100,000 / Set

FOB Price

USD $10,000 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 5 Set / Sets per Month
Port Shanghai
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Rubber Cutting Machine	Place of Origin:	Jiangsu, China
Brand Name:	Dura-Shred	Model Number:	TR2663	Voltage:	380V, as per customer request
Power(W):	30-132KW	Dimension(LWH):	6217x2168x3561mm	Weight:	24000kg
Certification:	CE&ISO	Warranty:	1 year, Life-Long	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Recycle Plastic Granules Making Machine Price

Equipment Specifications -grater

TR2663

TR2147

TR1740

Motor Specifications

Electric

Number of Motors

315KW

132KW

90KW

Voltage

as per customer request

Capacity

3-6t/h

1.5-3t/h

1-1.5t/h

Product Size Range

12mm-25mm

Cutting Chamber LxW

697x1562

742x1200

550x1000

Equipment Dimensions

6217x2168x3561

1412x902x1410

1182x700x1255

Hopper Opening LxWxH

1726x877x906

1412x902x1410

1182x700x1255

Equipment Weight

24000kg

6100kg

4200kg

	TR1732	TR1332	TR1324
Motor Specifications	Electric	Electric	Electric
Number of Motors	1	1	1
HP	75KW	55KW	45KW
Voltage	as per customer request
Capacity	700-1000kg/h	500-700kg/h	300-500kg/h
Product Size Range	12mm-25mm	12mm-25mm	12mm-25mm
Cutting Chamber LxW	550x800	450x800	450x600
Equipment Dimensions	1995x1980x4105	1720x1730x2316	1400x1200x2260
Hopper Opening LxWxH	982x700x1255	922x580x916	722x580x916
Equipment Weight	3500kg	1850kg	1700kg

Rubber shredding machine

High Quality Used Tire Shredder Price

Advantages of the System

Exclusive Control System - Controls and operates the entire plant from its centrally located position and provides instant visibility to what each machine is doing in real time.

Unique Stop/Auto Reversal Feature – Protects against overfeeding and damage by non-processable items.

Premier Full Turn Key Systems – Plant is manufactured, shipped, installed and ready to start recycling.

Warranty – one of the best warrantees in the industry.

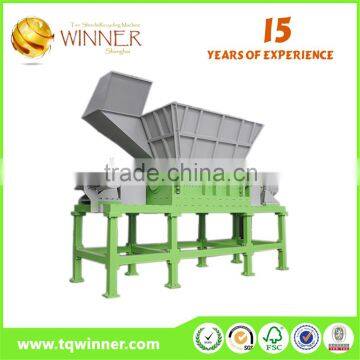

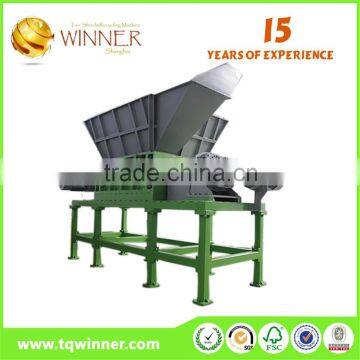

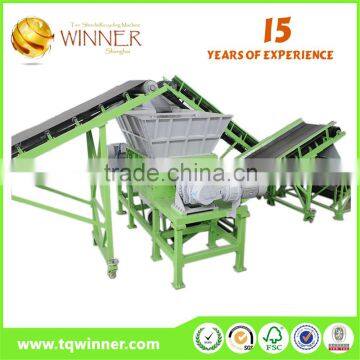

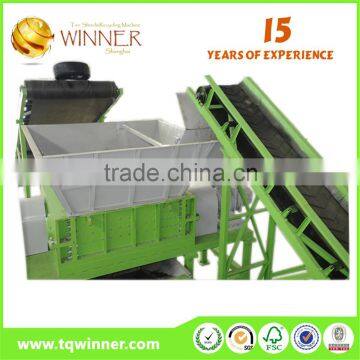

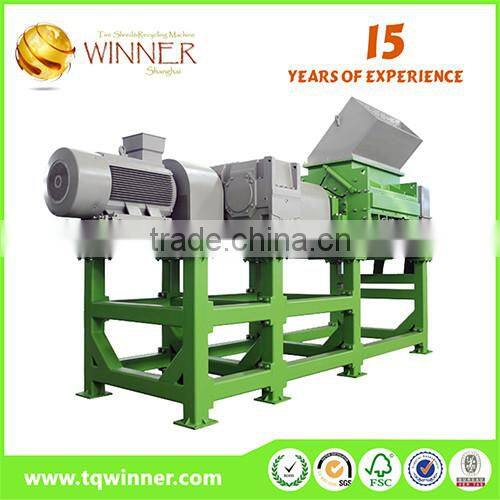

Double Shaft Shredder
Dura-Shred’s two shaft shredders are designed with an aggressive low RPM, high torque shredding technology.

The shredder blade thickness ranges from 25 mm to 152 mm (1”-6”) depending on the type of tires, throughput, and desired end product.

The biggest shredder can process OTR tires, large truck tires, and car tires at a rate of up to 20 tons per hour.

High Quality Used Tire Shredder Parts

Grater

The Grater is the ultimate machine for mid-stream grinding and steel separation.

1) It is specifically designed to take pre-shredded tires chips and produce between 10-30mm wire free rubber chip.

2) The Grater and can process up to 6 tons of input per hour.

3) The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber.

4) Another unique feature of this machine is the ability to turn the knives once before having to send them to be sharpened or replaced, minimizing operating costs.

Granulator
The Granulators are designed to grind the rubber mulch from the Grater into small granules as fine as 10 mesh.

The granules are screened and re-circulated until the desired size is reached.

Due to the design of our granulator and precise alignment of the blades, this Granulator produces a very uniform cut, high quality granule.

During the granulation process, 99% of the fiber is removed, leaving a contaminant free crumb rubber granulate ready to be further processed or sold.

Miller
Dura-shred's miller is designed for rubber material where a powdered products is required.

Granules of size 1-8mm is fed via feeder to the rotating high speed serrated disk to produce a powder product in the required 30-120mesh range and where the final size is determined by adjustable centrifugal screen.

Company Information

Certifications

Background Info

Operation

Application

Our Services

A. 1 year warranty

B. We will send 2 or 3 engineers to help install the machines.

C. OEM & ODM are available

D. Turn-Key service

E. Rubber samples could be supplied for free

F. Regular return visit

FAQ

1. How to choose the suitable machine?

Please answer first:

a: What material do you want to shred?

b: What is the usage of the crushing material?

c: How many tons per hour do you demand?

After that, the suitable machine could been introduced to you.

2. What about the shipping and package?
We arrange shipment according to your requirements. It is included in our TURNKEY service.

3. Can I visit your company or factory?

Ofcourse you can.

Our headquarter is in Shanghai city

Our production plant is in Wuxi city, Jiangsu province.

And when you fly to China, we could pick you up and afford your local transportation charges.

4. What's the relationships between tqwinner and dura-shred?

They are 2 brands belonging to the same group. Dura-Shred is registered in Wuxi; Qqwinner in Shanghai. Our headoffice and marketing team are located in Shanghai.
