Product description

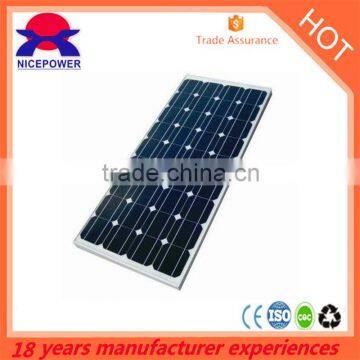

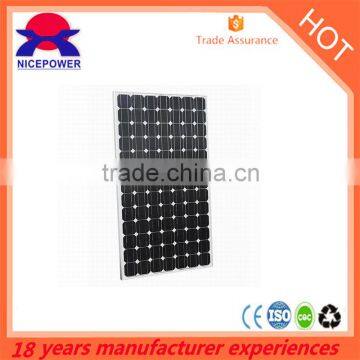

Solar panel
MONOCRYSTALLINE SOLAR MODULE
Products features:
High efficiency cell
Strong aluminum alloy frame
Standard tolerance(Guaranteed standard tolerance from -3~+3% ensures power output reliability)
Excellent weak light performance
Excellent performance under low light environments (mornings, evenings, and cloudy days)
Withstand high wind and snow loads
Entire module certified to withstand high wind loads (2400 Pascal) and snow loads (5400 Pascal)
Electrical Characteristics
Model No. |
SFM155W-36/6 |
SFM150W-36/6 |
SFM145W-36/6 |
SFM135W-36/6 |
Maximum Power at STC (Pmax) |
155 W |
150 W |
145 W |
135 W |
Optimum Operating Voltage (Vmp) |
18.18 V |
18.17 V |
18.16 V |
18.15 V |
Open - Circuit Voltage (Voc) |
21.6 V |
21.5 V |
21.4 V |
21.3 V |
Optimum Operating Current (Imp) |
8.53 A |
8.26 A |
7.98 A |
7.43 A |
Short - Circuit Current (Isc) |
9.38 A |
9.08 A |
8.78 A |
8.17 A |
Cell Efficiency |
17.7% |
17.1 % |
16.5% |
15.4% |
Operating Module Temperature |
-40 C to +85 C |
|||
Maximum System Voltage |
1000 V DC (IEC) / 600 V DC (UL) |
|||
Diodes |
2 by pass |
|||
Power Tolerance |
-3/+3 % |
|||
STC: irradiance 1000 W/m2, module temperature 25 C, AM=1.5; Power measurement tolerance: 3%
Mechanical Characteristics
Solar Cell |
Monocrystalline 156 156 mm (6 inches) |
No. of Cells |
36 (4 9) |
Dimensions |
1485 675 35 mm (58.5 26.6 1.4 inches) |
Weight |
12 Kgs (26.4 lbs.) |
Front Glass |
3.2 mm (0.13 inches) tempered glass |
Frame |
Anodized aluminum alloy |
Junction Box |
IP65 rated |
Output Cables |
TUV |
4.0 mm2 (0.16inches2), symmetrical lengths (-) 900 mm (35.4 inches) and (+) 900 mm (35.4inches) | |
Connectors |
RADOX SOLAR integrated twist locking connectors |
Temperature Characteristics
Nominal Operating Cell Temperature (NOCT) |
452?/span> |
Temperature Coefficient of Pmax |
-0.47%/?/span> |
Temperature Coefficient of Voc |
-0.34%/?/span> |
Temperature Coefficient of Isc |
0.045%/?/span> |
Packing Configuration
Container |
20'GP |
40'GP |
40'HQ |
Pieces per pallet |
21 |
21 |
24 |
Pallets per container |
20 |
44 |
44 |
Pieces per container |
420 |
924 |
1056 |
Quality and Safety:
Product warranty: |
Singfo Solar modules will last for at least 25 years. |
Free from defects in material and workmanship for 5 years. |
All the panels passed IEC, TUV standards. |
Power warranty: |
Maintain more than 90% of minimum rated power for 10 years. |
Maintain more than 80% of minimum rated power for 25 years. |
Our Services:
Product Quality
1. We are liable to remedies or replace the batteries for any defects in materials and workmanship if they come from our factory and stay within the legitimate warranty.
2. We will response to your failure-report within 24 hours with a solution, and will dispatch technician to field if it is necessary.
3. We offer life-long service to every single of our batteries (free of charge if covered by warranty),and technical instruction included.
Follow-up Service
1. Our technicians are available for your on-site installation guidance and engineering.
2. We are ready to answer your questions about our products(remote or on-site)until problems are solved and deliver technical trainings upon your specific demand.
Nice People Power Co.,Ltd has two battery factories in oversea Haiphong Vietnam and Guangzhou China,welcome to visit our battery and the quality.
(1)Your battery can meet CE RoHS ,ISO, SGS requirements?
Our battery are with the certificate of CE/RoHS, ISO, SGS.
(2)Can you print my brand on the batteries?
Yes, OEM is available,we can print your picture or logo on the battery case,
and you can offer your logo.
(3)What kind of guarantee you give?
Our battery products can be used for more than 4 years. For AGM / LEAD battery warranty 3years. in warranty time,the fail battery,replace the new one.
(4)Can you arrange the shipment?
Yes.Our company will arrange the shipment. you just send the sea port and
make the order, shipment everything, we will do smooth and safe.
(5)If there are defective batteries in the warranty, what’s your policy to replace them?
Please take the photos of the broken batteries for us and tell us what happen,
if everything is confirmed, the new ones will be sent to you as compensation in
the next order.
(6)What 's the life time of your batteries?
Our batteries can be used for 5 to 7 years.But the deep recycle batteries can
be long used for8 to 10years.
(7)Can I get some samples?
Of course , We can offer sample for you to check quality first !!
(8)When did your factory establish?
Our factory founded in1997 has 18 years manufacture experience in Batteies.
