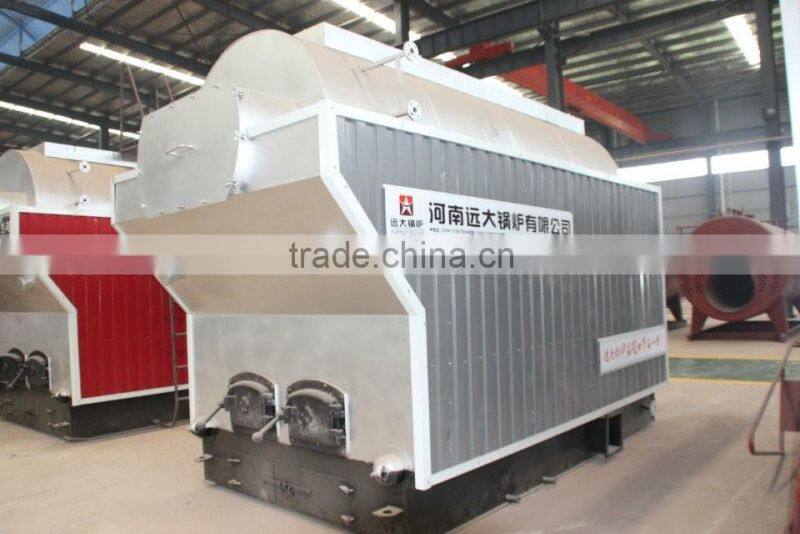

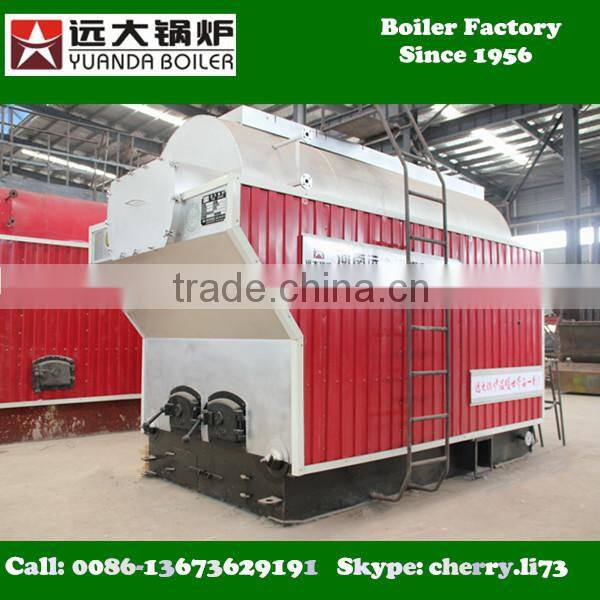

2016 high quality DZH series 2000kg/h wood burning boilers
2016 high quality DZH series 2000kg/h wood burning boilers
1. Single cylinder, fire tube (Spirally corrugated tube) and water tube.
2. Packaged style
3. Fuel can be wood pellet, peanut shell palm shell, coconut shell and other biomass fuel.
4. Hand fired type.
5. Capacity 1Ton-6Ton/HR
6. Equipped with full set auxiliaries, after simple installation, the boiler can operate
Main advantages of 2016 high quality DZH series 2000kg/h wood burning boilers
1.With efficient special designed spirally corrugated tube----Making boiler’s actual capacity is 10-15% higher than name plate capacity
2.It uses new hearth with large volume, ----Improving boiler efficiency,reducing fuel consumption in largely
3. Most advanced technology for arch ---- Boiler's hearth has a dust separation reversing chamber,it ensures that the original dust discharge concentration is lower,protection enviroment
4.Optimally designed steam separator ----facilitates vapour gravity separation,and makes the steam humidity lower than 1%, obviously lower than international standard of 4%;
Inspefication of 2016 high quality DZH series 2000kg/h wood burning boilers
l Model |
DZH1-0.7-AII |
DZH2-1.0-AII |
DZH4-1.25-AII |
DZH6-1.25-AII |
Rated evaporation( t/h) |
1 |
2 |
4 |
6 |
Rated steam pressure( Mpa) |
1.0 |
1.0 |
1.25 |
1.25 |
Feed water temp(°C ) |
20 |
20 |
20 |
20 |
Rated steam temp(°C ) |
184 |
184 |
194 |
194 |
active grate area( M2) |
1.85 |
3.4 |
5.18 |
7.55 |
Applicable coal style |
AII |
AII |
AII |
AII |
flue gas temperature(°C ) |
157.3 |
163.1 |
180 |
166.3 |
Designed thermal efficiency (%) |
80.33 |
80.54 |
80.28 |
80.94 |
Coal consumption (Kg/h ) |
118 |
238 |
472 |
685 |
Transportation Weight(t) |
13.2 |
13.8 |
23 |
32 |
What about your supply scope?

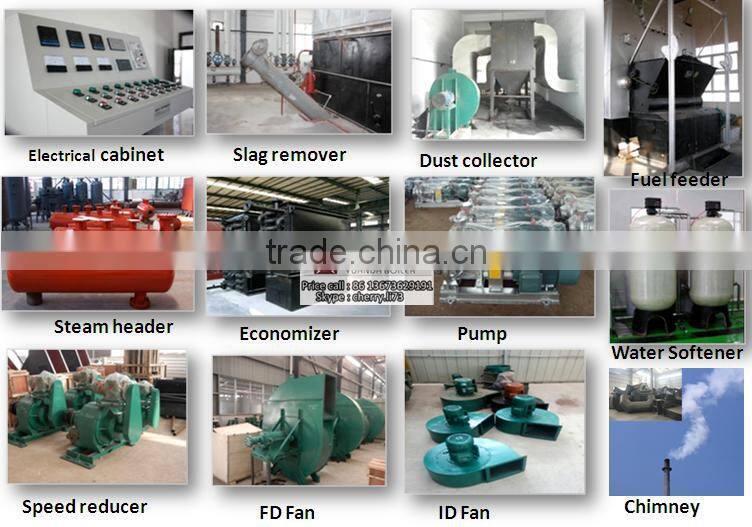

Answer: we supply with full set 6t/h biomass boiler system,please to see equipment list as fellow:
Guarantee&Service---customers is the first!
Design and manufacture products according to clients' special requirement;
Respect clients, devote ourselves to improving the total value of clients.
1>. One-year warranty and full-life services with many considerate policies ;
2>. 24H On line Help clients to draft solving plans by email.
Yuanda Boiler Advantage:
1. Powerful technical support, over 50years experiences in boiler making and selling inland& abroad
2. ISO9001-2000 Quality Management System
3. 2years Warranty & full-life services with many considerate policies
4. Fast response within 24hours, 10-60days delivery after deposit
5. Engineer installation service, fast spare parts services
6. We are Alibaba Assessed 5 years Gold Supplier.
7. Factory selling with bottom price, as well as completed export service

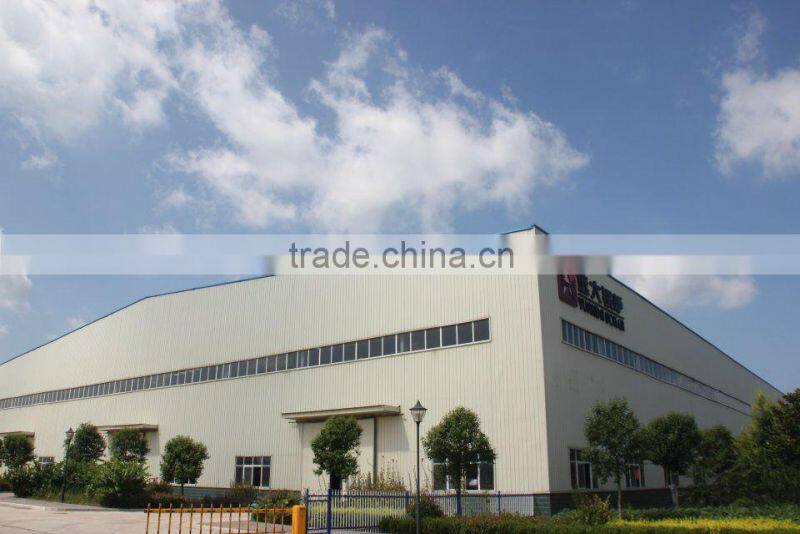

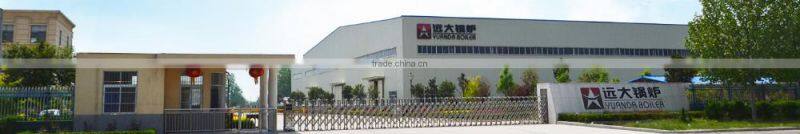

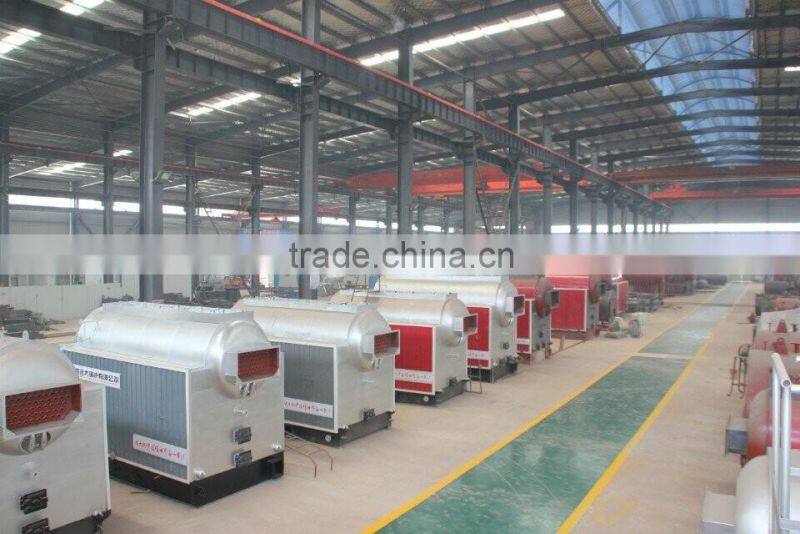

Our factory overview first:
Warmly welcome to visit our Henan Yuanda Boiler:
Customer visting our factory :
Yuanda Boiler Team:

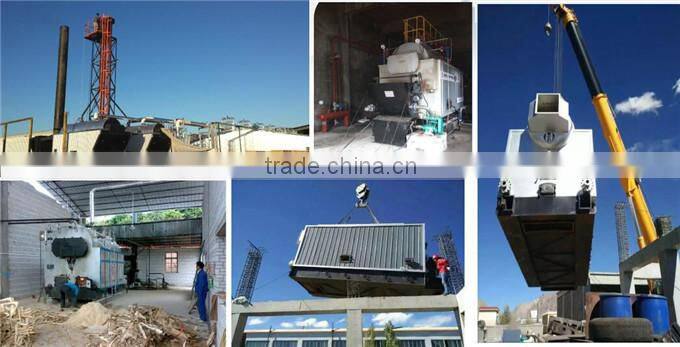

Typical project for wood fired boiler :
Y

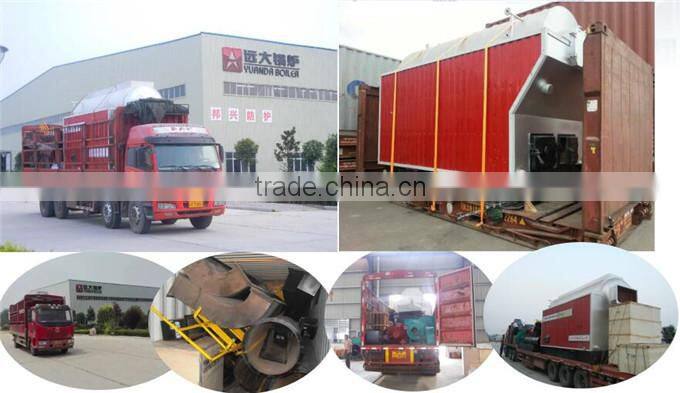

Inland transportation and shipping picture for wood fired boiler :
3 ways you can contact with us quickly :( To get our completed boiler offer with detailed price list and technical specification )
Online trademanager services: Click Chat Now at the right side of the product picture, contact Cherry now.
Email inquiry services: Click Contact Supplier at the right side of the products picture or go to the bottom of the page to send us Inquiries via email
Other chat tool services: You can also have other chat tools you prefered like Mobile, Telephone, Skype, Whatsapp, viber, or other chat tools because you don't have the upside ways to contact us:
