hand wood boiler with complete accessories
Dear firends, Wlecome to Celia boiler service : )

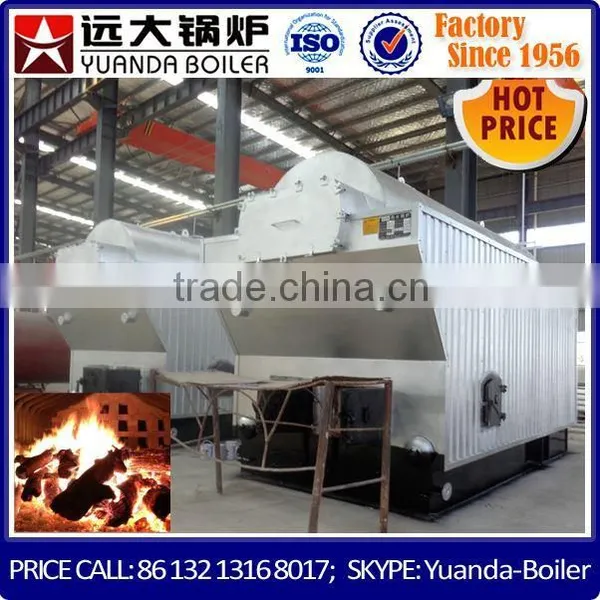

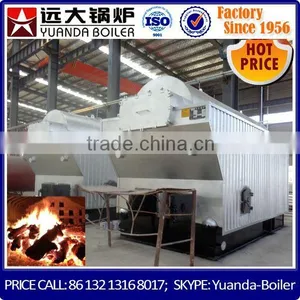

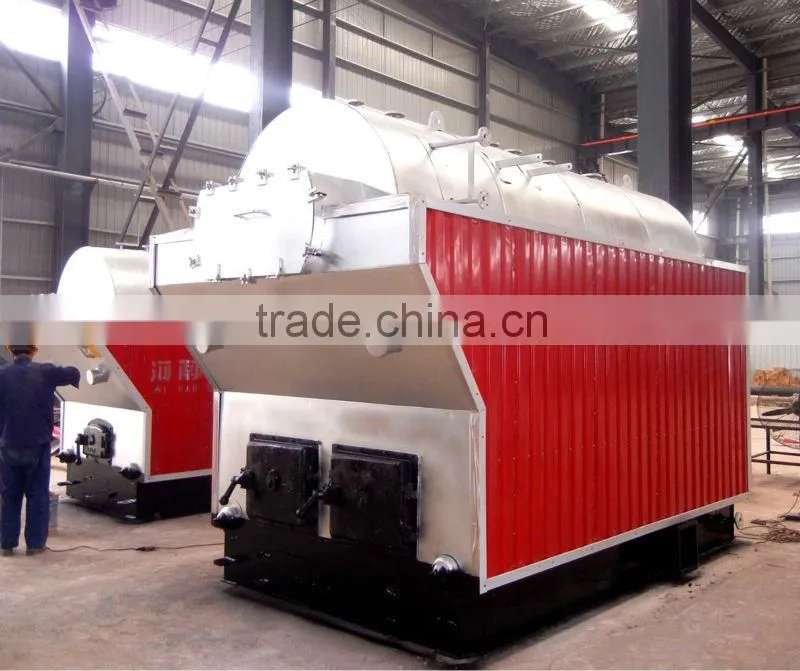

1. Manual type hand wood boiler pictures, model DZH Series
hand wood boiler Boilers Boiler capacity 1 to 6 ton/h
| hand wood boiler general description |
| 1. Product description: hand wood boiler, manual type fixed grate (automatic chain grate type is on option) |
| 2. Rated capacity: 1-6ton/hr |
| 3. Rated steam pressure: 1.25Mpa |
| 4. Rated steam temperature : 194°C |
| 5.Fuel: wood logs, wood pellets, wood pieces, wood waste, firewood etc. |
| 6.Model: DZH manual type |
| Boiler Terms |
| 1. Price : FOB, CIF, DAF etc. |
| Certification |
| 1. Boiler quality certificates, drawings, user manual etc. |
| 2. After sales service description: 2years to boiler main part with full life after-sales sales |

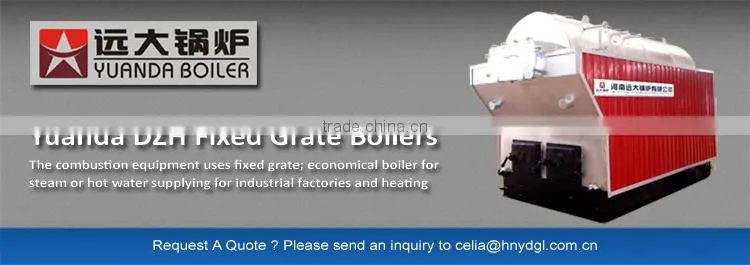

2. DZH hand wood boiler features:
Fixed Grate Boiler / Hand Fired Boilers / CWood Fired Boilers
hand wood boiler Boilers wood heat value 4000kcal/kg
Structure of DZH Boiler
1. Yuanda DZH series is quick fitting boiler, horizontal type, water and fire pipes with fixed grating, use wood or coal as fuel
2. The boiler body is a single cylinder type, there are left and right double rows of fire pipe bundles inside the boiler cylinder to form convection heat receiving surfaces, the boiler cylinder to form convection heat receiving surfaces, the boiler cylinder and water-cooling walls at both sides shape the furnace radiation heat receiving surfaces; the combustion equipment uses fixed grate; compact structure, small volume; convenient installation, cheap in construction; the output of the boiler is presented as sufficient and high efficiency .It is the most economical boiler for extensive steam or hot water supplying for industrial factories and public heating.

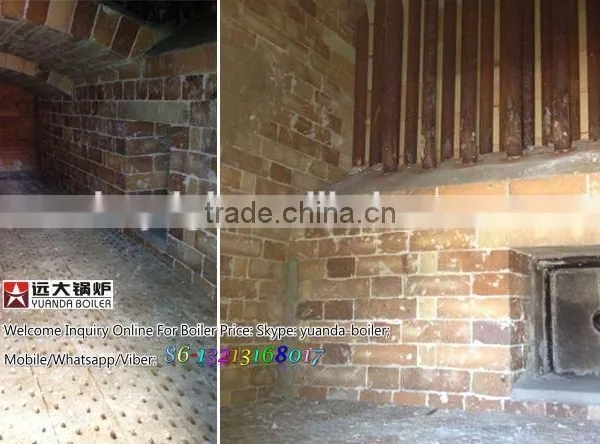

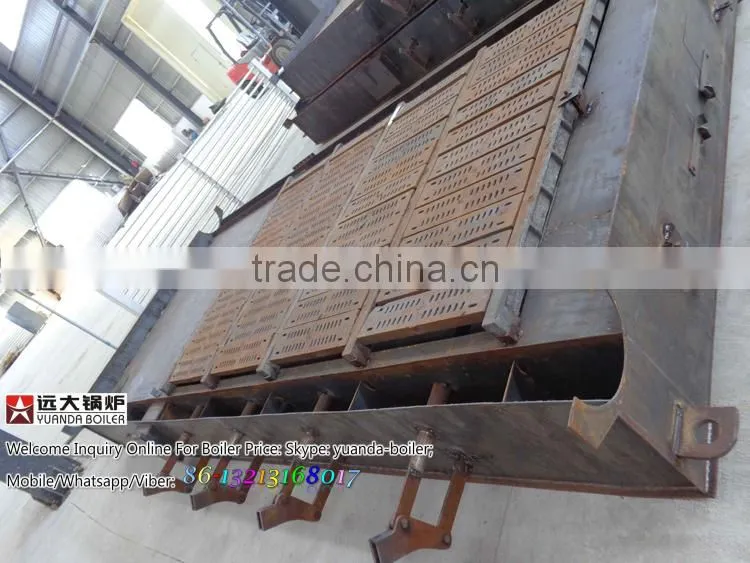

The fixed grate of DZH hand wood boiler
hand wood boiler Boilers product hand wood boiler

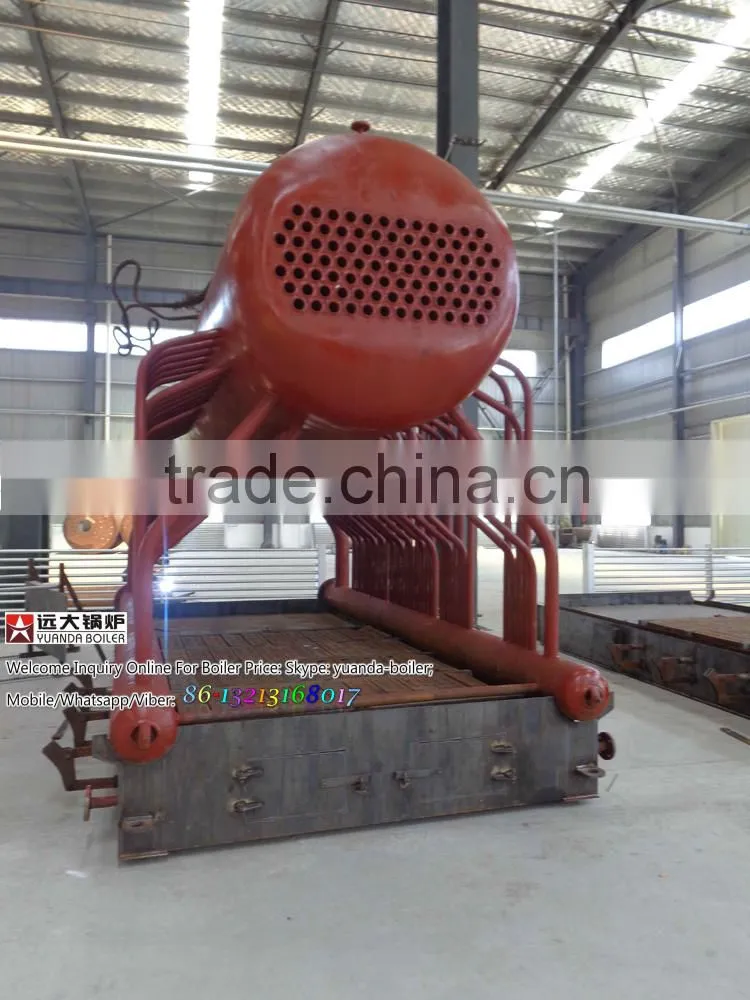

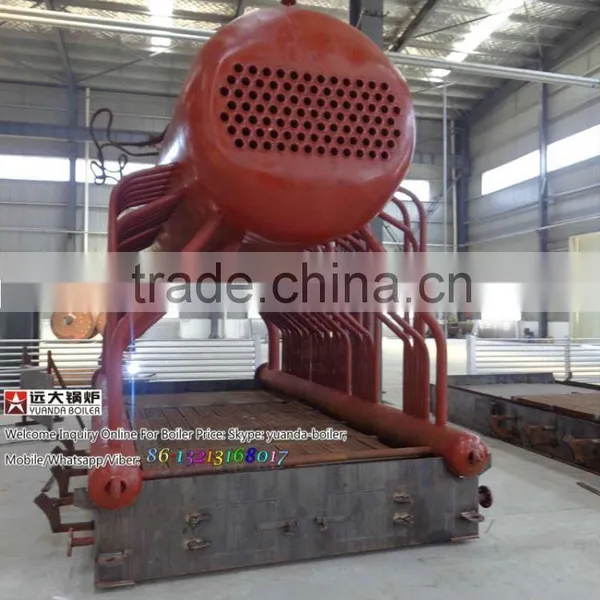

Structure of DZH hand wood boiler
hand wood boiler Boilers wood consumption 178kg/hour
hand wood boiler Boilers wood wood waste, wood pellet
General diagram of DZH hand wood boiler
hand wood boiler Boilers Steam temperature: 194 C to 226 C
3. DZH hand wood boiler pecification form:
Boiler model |
DZH1-1.0-AII |
DZH2-1.0/1.25-AII |
DZH4-1.25/1.6-AII |
DZH6-1.25/1.6-AII |
|
Rated capacity |
t/h |
1 |
2 |
4 |
6 |
Rated pressure |
MPa |
1 |
1/1.25 |
1.25/1.6 |
1.25/1.6 |
Feed water temperature |
°C |
20 |
20 |
20 |
20 |
Steam temperature |
°C |
184 |
184/194 |
194/204 |
194/204 |
Active grate area |
m2 |
1.35 |
2.7 |
4.57 |
8.59 |
Exhaust gas temperature |
°C |
195 |
198 |
196 |
189 |
Design efficiency |
% |
76 |
76 |
78 |
80 |
Coal consumption |
Kg |
118 |
238 |
472 |
685 |
Weight of main part |
t |
8.6 |
10.9/11.3 |
18 |
23/24 |
Main part Dimension |
mm |
4320×1940×2685 |
5050×2440×3117 |
5650×2550×3434 |
6529×3100×3664 |
Delivery mode |
Fast-packaged |
Fast-packaged |
Fast-packaged |
Fast-packaged |
|
4. Accessories of DZH hand wood boiler
Equipment Name |
TYPE |
No. |
|
Boiler Proper |
Steel plates for boilers Q245R, Q345 Standard of GB713 |
1 |
|
Boiler auxiliarie |
air blower |
4-72No.3.2A right0 |
1 |
induced draft fan |
Y5-47No.4C right180 |
1 |
|
Electrical cabinet |
GLK21B-MZ1-3D |
1 |
|
Valve & instrument |
safety valve; relief valve; check valve; ball valve; blow-down valve; pressure gage etc. |
||
Grate speed reducer |
/ |
/ |
|
water supply pump |
1/2GC-5x4 |
2 |
|
Points of cylinder |
Φ219x1200 |
1 |
|
Chimney |
Φ320x16 |
1 |
|
chimney flue |
DZ-1T |
1 |
|
Economizer |
1000x12 |
1 |
|
coal conveyor |
/ |
/ |
|
slag extractor |
/ |
/ |
|
Ceramic Multicyclone dust collector |
XTD1T/H |
1 |
|
water treatment system |
Φ300x1650x1 |
1 |
|

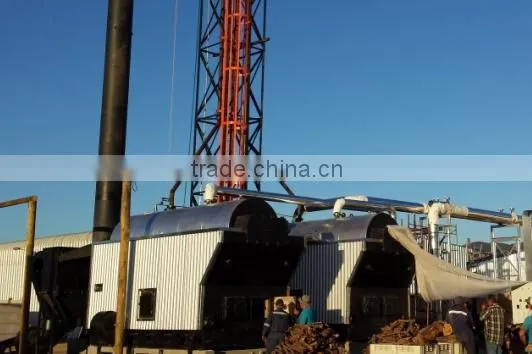

5. Typical project of DZH hand wood boiler in Chile
hand wood boiler Boilers boiler operation manual hand feeding
hand wood boiler Boilers Power Supply: 380V/440V/220V, 50HZ/60HZ etc.

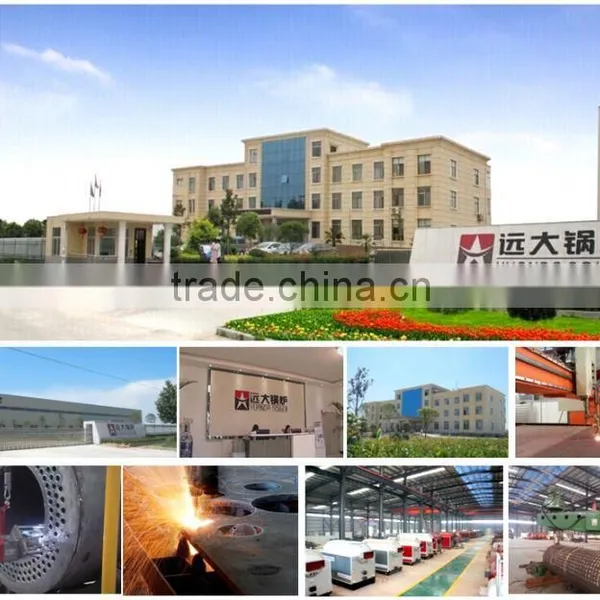

Yuanda Boiler factory: established in 1956 with mature technology and experiences in boiler industry
Our company have strong technical support, successively cooperate in technology scientific research and sign technological contract with the Beijing ZhiGuang Boiler Institute, Harbin Industrial University, Xi'an Jiaotong University and other universities, to ensure that our products are ahead of science and technology.
hand wood boiler Boilers Manufacturer: clas a factory since 1956
Yuanda Boiler Enterprise Concept: Quality, Sincerity, Creditability
hand wood boiler Boilers wood combustion on fixed grate

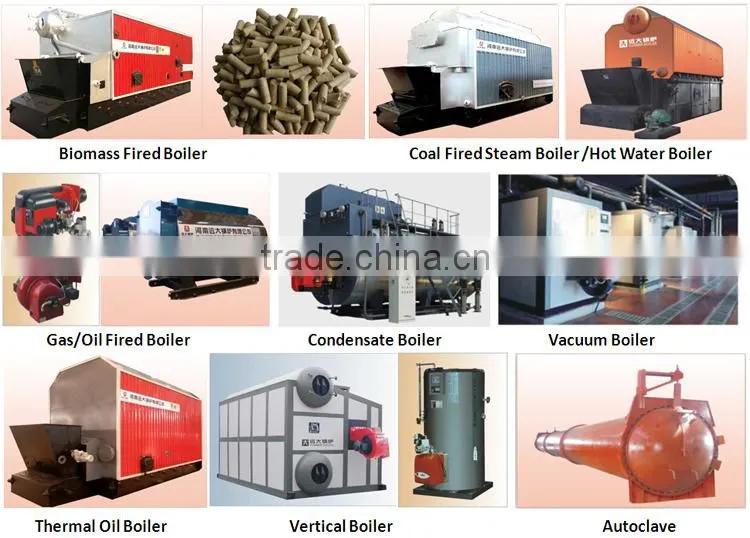

Yuanda Boiler product:
- 0.2-30ton/hour capacity steam boiler
- 0.35MW-29MW thermal power hot water boiler
- 0- 2.5Mpa pressure
- Fuel: coal or biomass or gas or oil etc.
- Model: DZL, SZL, WNS, LHS, LNB, LSC etc.
- Thermal Oil Boiler, AAC brick/block making autoclaves
If any needs of the above, pls feel free to contact Celia for price and details, thanks : )
hand wood boiler Boilers
Yuanda Boiler Service Policy:
1, All-around 24 Hours service
2, Quick trouble shooting;
3, Ensure customer maximum satisfaction
hand wood boiler Boilers
hand wood boiler Boilers
Why do you choose us?
A, We YUANDA has been established since 1956 and been producing excellent boiler till now.
B, We own a 10,000m2 industrial park and new introduced equipments and facilities.
So we have power to contain our prestige, product quality and good service .
C, ISO9001-2000 and lots of qualifications certifying we own good system of quality controlling.
D Maybe we are the best one, but we believe our boiler quality and service will make you satisfied.
hand wood boiler Boilers
Warmly welcome to visit our factory : )
hand wood boiler Boilers
