300kg to 1000kg steam output Vertical natural gas fired boiler, vertical steam boiler

Specifications

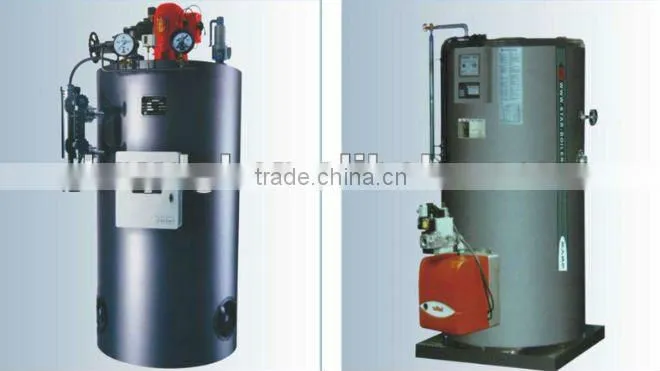

vertical steam boiler
1LHS series 300kg to 1000kg steam output
2quick boost pressure
3small and medium enterprises,save spa

vertical steam boiler



-Product description: Biomass Steam Boiler



-Applied fuel: gas or oil



-Rated capacity: 300kg to 1000kg per hour



-Output: steam



-Rated steam pressure: 0.4 and 0.7 Mpa



-Rated steam temperature: 154°C



-Structure: vertical packaged



-Delivery time: 15days



-Warranty: 2years warranty with full-life after-sales service







LHS Series vertical steam boiler feature:

• Adopting the latest technology, it is designed with a combustion chamber with large volume. It is equipped with a world-known burner, making the combustion more sufficient and ensuring higher efficiency and lower failure rate.
• It adopts heat transfer and flow resistance technical design of Harbin Institute of Technology, ensuring large heating area and high heat efficiency.
• It has protective functions of overtemperature, overpressure, water shortage, leakage detection and flameout, achieving unmanned management and safe and reliable operation.



LHS Series vertical steam boiler Technical Parameters:

Boiler model	Rated thermal power	Rated pressure	Feed water temperature	Steam temperature	Fuel consumption					Weight	Dimension
					Light oil	Heavy oil	natural gas	liquid gas	City gas
	t/h	MPa	°C	°C	Kg/h	Kg/h	m3 /h	m3 /h	m3 /h	t	mm
LHS0.3-0.4-Y(Q)	0.3	0.4	20	151	19.2	19.9	25.5	9.3	53.5	1.2	Φ988×1956
LHS0.5-0.4/0.7-Y(Q)	0.5	0.4/0.7	20	151/170	32	32.9	42.5	15.5	89.5	1.7	Φ1158×2190
LHS0.7-0.4/0.7-Y(Q)	0.7	0.4/0.7	20	151/170	49.5	51	64.5	22	137	2.0	Φ1258×2420
LHS1-0.4/0.7-Y(Q)	1	0.4/0.7	20	151/170	65	67.5	84	28	176.4	2.6	Φ1358×2468

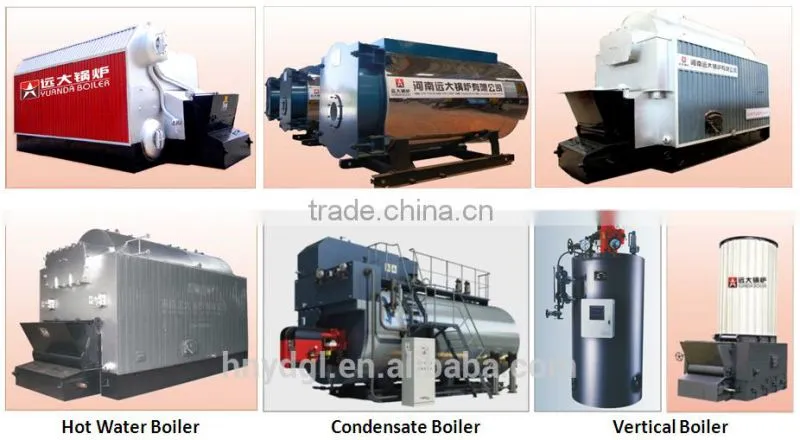

     1. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW)

     2. WNS series oil/gas fired boilers (0.3-20T/H, 0.7-7MN)

     3. SZL series water tube biomass boilers (2-35T/H, 1.4-29MW)
     4. LNB series gas boilers (0.3-10T)
     5. LHS series vertical gas/oil fired boiler(0.3-1T)
     6. AAC brick/block making machine
We sell well in more than 30 provinces and regions in China and in south east Asia, Asia, Africa, South America, Middle East, Russia, etc.
