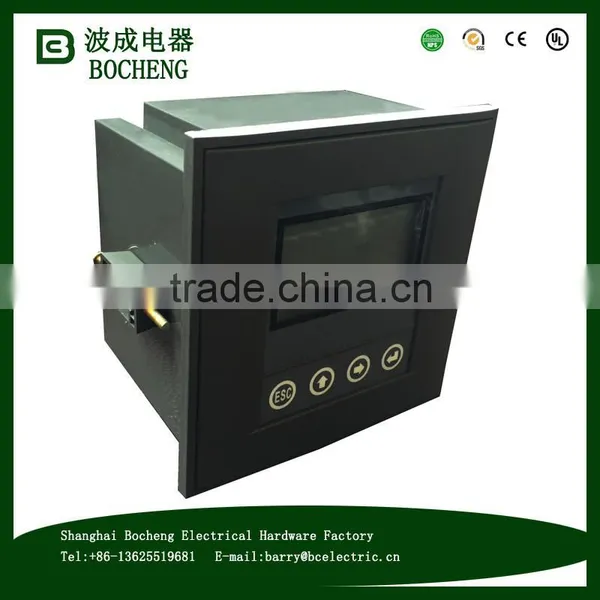

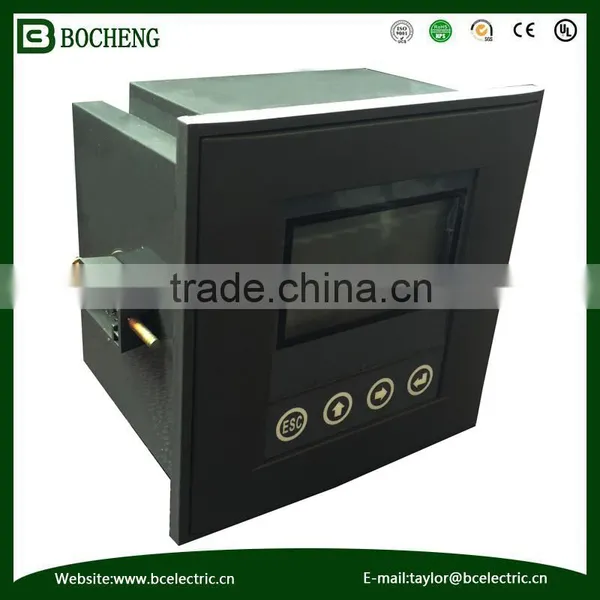

Help CenterHot !SVC Reactive Power Automatic Compensation Controller
Related Products
-
Reactive Power Factor Controller For CapacitorNegotiableMOQ: 1 Piece -
JKWH Intelligent Reactive Power Factor ControllerNegotiableMOQ: 1 Piece
-
Smart Low Voltage Reactive Auto Compensation ControllerUS$ 500 - 5,000MOQ: 1 Piece
-
Reactive Power Factor Correction ControllerUS$ 100 - 2,000MOQ: 1 Piece
-
220V Power Factor Correction ControllerNegotiableMOQ: 1 Piece
Profile

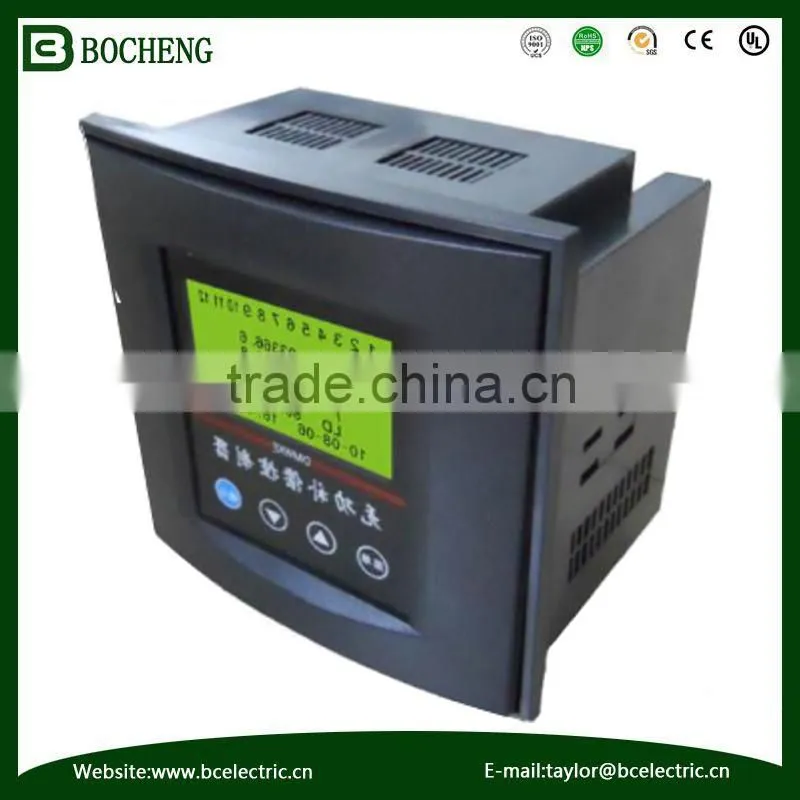

Series of reactive power automatic compensation controller, with high speed and high performance microprocessor as the core device also sampling three-phase voltage and three-phase current signal and provide six separate compensation is compensation scheme, 12 kinds of switching coding scheme, the user through the modification of control parameters of arbitrary choice, control parameters modified permanent preservation, power down fill missing. The fundamental power factor and the fundamental group of power compound control capacitor switching, switching stability without switching shocks, for voltage harmonic interference complementary sensitivity. In exchange 45Hz-65Hz and 0.4kV power system following the non automatic control of reactive power compensation.
Specification
Rated operational voltage:AC 220V±20%.
Rated operational current:AC 0-5A.
Rated operational frequency:45Hz-65Hz.
Display power factor:lag 0.001-lead 0.01.
Under voltage protection value:170V.
Static output contact capacity per path:AC 220V 7A.
Sensitivity:50mA.
Dynamic output capacity per path:-12V 10mA.
External dimension:JKWF-12S 122mm×122mm×99mm.
Power consumption of the whole machine：10VA
External dimension:JKWF-16 144mm×144mm×87mm.
External dimension:JKWF-12S 113mm×113mmm.
External dimension:JKWF-16 138mm×138mm.
Use condition
1, Practical altitude: ≤2500m.
2,Environmental temperature: -20 ℃ ~ 50 ℃.
3,Relative humidity: ≤90%(20℃)≤50%(40℃)
4,Installation site should be no harmful gas, steam and electrical conductivity or explosive dust.
5,installation site should be no severe vibration.
Functional characteristics
1,In the calculation of the power of the fundamental wave reactive power, the capacity of the capacitor can be avoided, and the power factor of the grid can be displayed correctly in the case of harmonic wave.
2,Power factor measurement accuracy, display a wide range.
3,Real time display of total power factor(PF)and fundamental wave power factor(COSφ).
4,There are 12 kinds of coding output for users to choose.
5,There are 6 compensation schemes for user selection.
6,Up to 16 output
7,Easy to operate
8,All kinds of control parameters can be adjusted directly and conveniently
9,With automatic operation and manual operation of the two ways
10,With over voltage and under voltage protection function
11,With power down protection function and the data is not lost
12,The current signal input impedance is less than or equal to 0.01.
13,Target power factor adjustment range is wide
