specialized burning room for biomass fuel automatic biomass boiler

Specifications

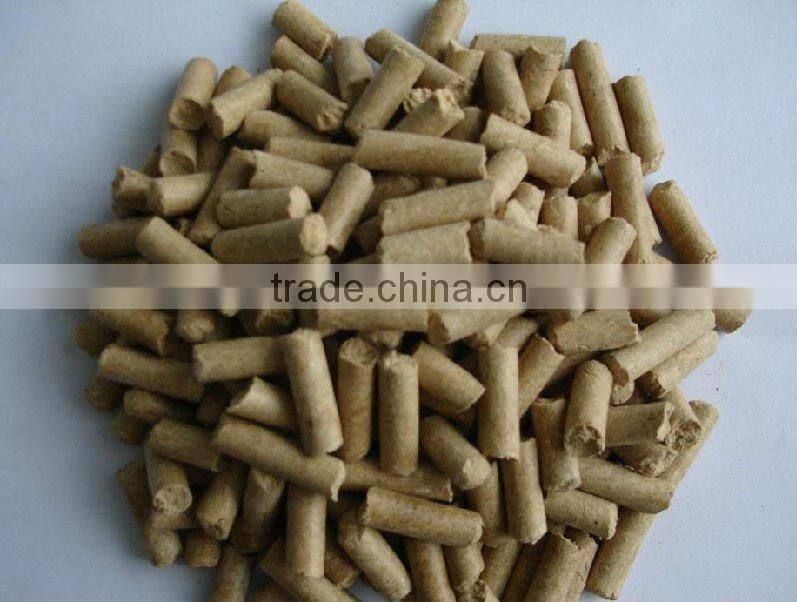

Steam Output 4000kg/Hr Working Pressure 10 Bar wood pellet boiler for sale

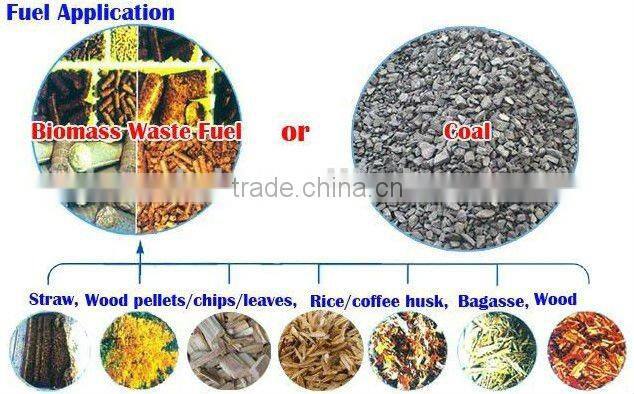

automatic feed wood chips
engineer available

specialized burning room for biomass fuel automatic biomass boiler



SZL automatic biomass boiler Features:

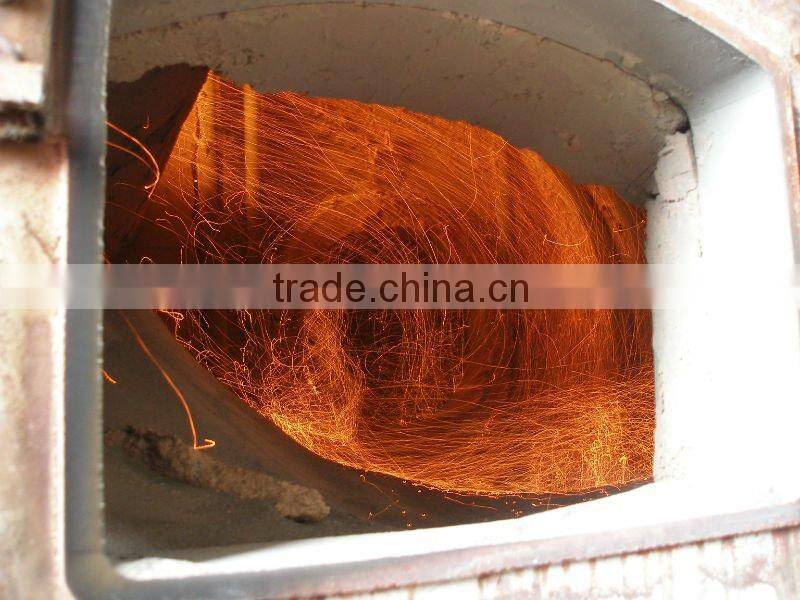

1. cyclone burning room for wood chips sufficient burning
2. water tube ensure easy maintenance and longer life span
3. double drum ensure fast circulating
4. compact design

SZL automatic biomass boiler specification



Model		SZL2-1.25/2.5-AII	SZL4-1.25/2.5-AII	SZL6-1.25/2.5-AII	SZL8-1.25/2.5-AII
Rating capacity	t/h	2	4	6	8
Rating pressure	Mpa	1.25/2.5	1.25/2.5	1.25/2.5	1.25/2.5
Feed water temperature	°C	20	20	20	20
Rating steam temperature	°C	194/226	194/226	194/226	194/226
Active grate area	m2	3.1	4.6	7.3	10.4
Boiler heating area	m2	64.6	115.3	136.3	173
Boiler efficiency	%	81.6	81.6	81.6	81.8
Coal consumption	kg/h	223/227	447/453	671/684	781/803
Main part weight	t	20/25	28/29	38/42	52
Main part dimension	mm	5960*2960*3468	6510*3130*3468	7830*3346*3468	8200*3346*3468
Package method		Package bolier

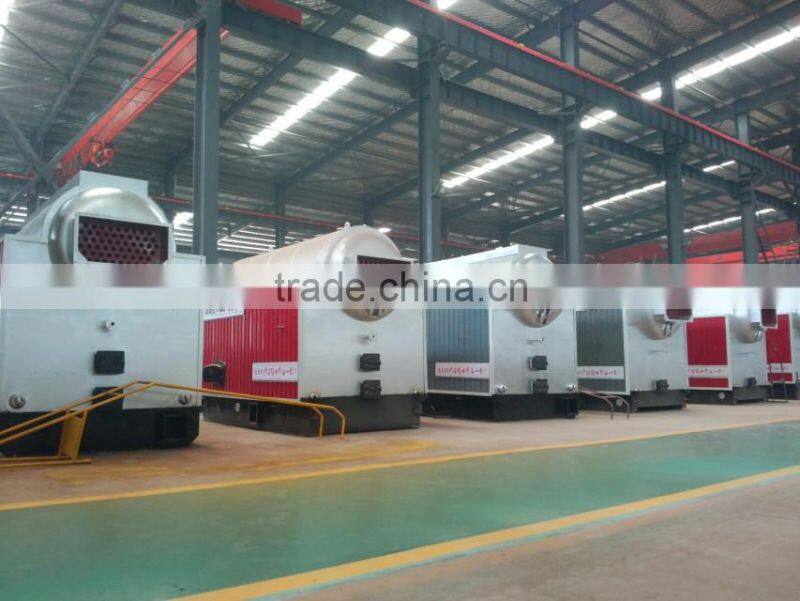

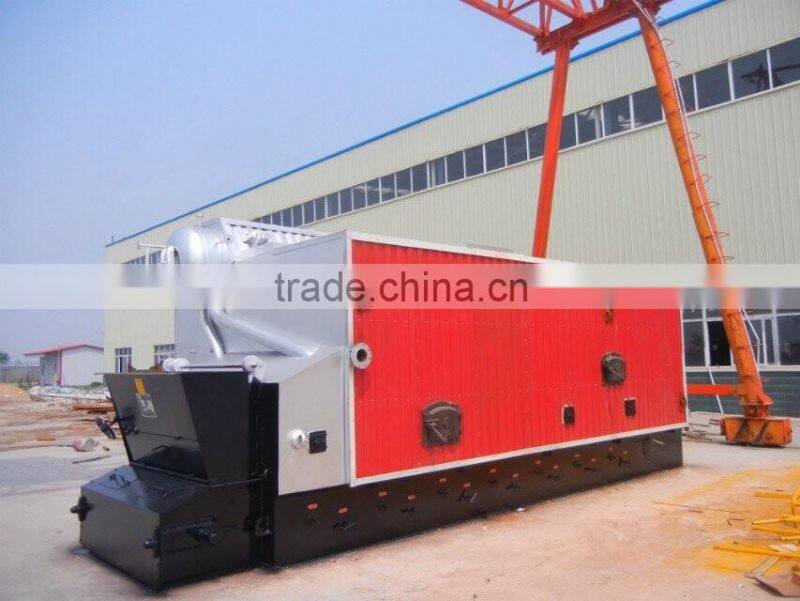

SZL automatic biomass boiler pictures

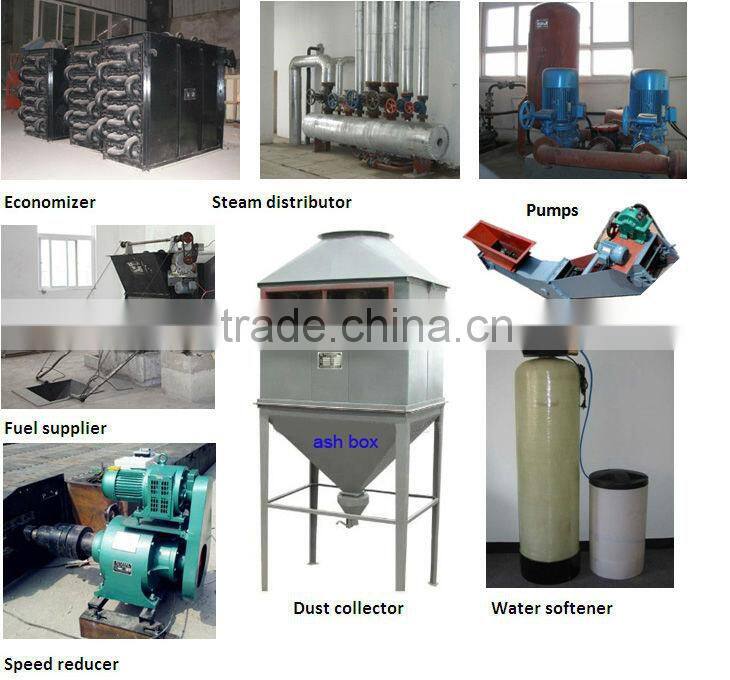

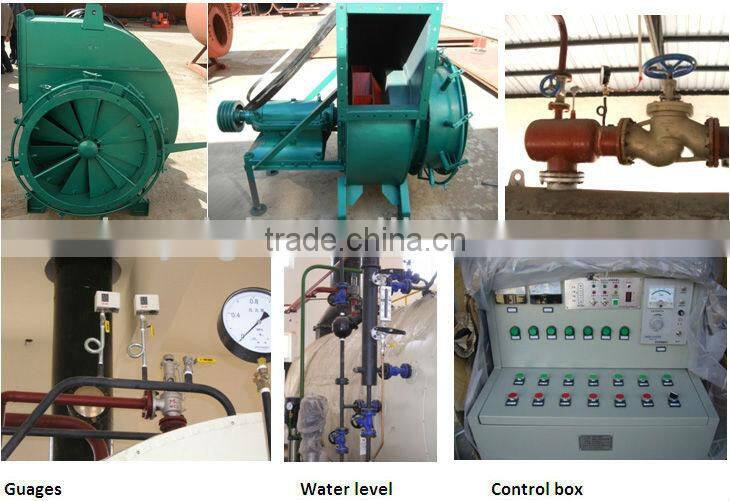

Boiler accessories



Customer visit us

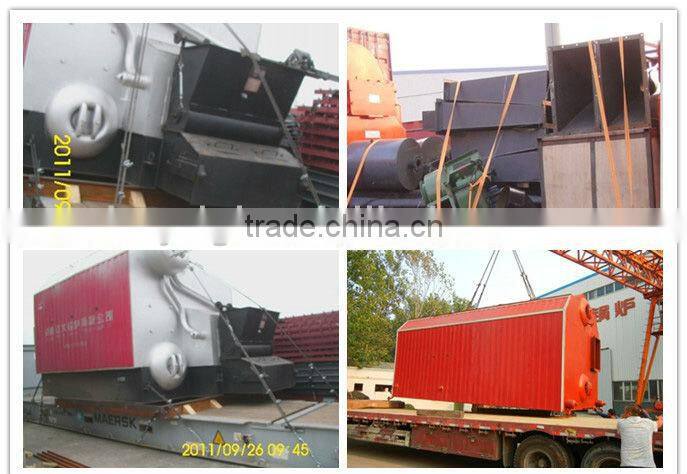

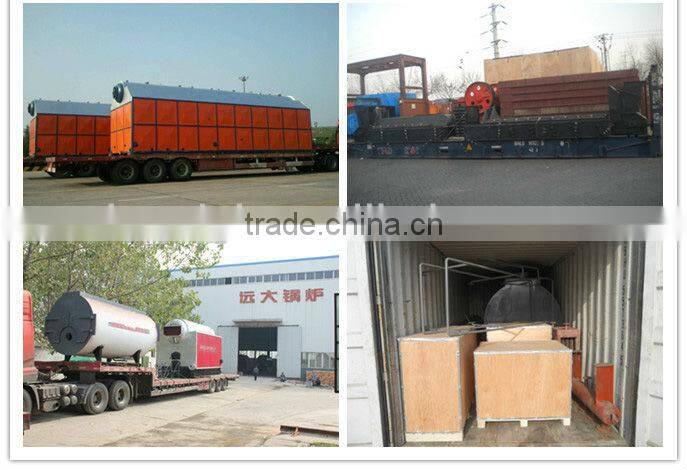

Yuanda Boiler Shipping

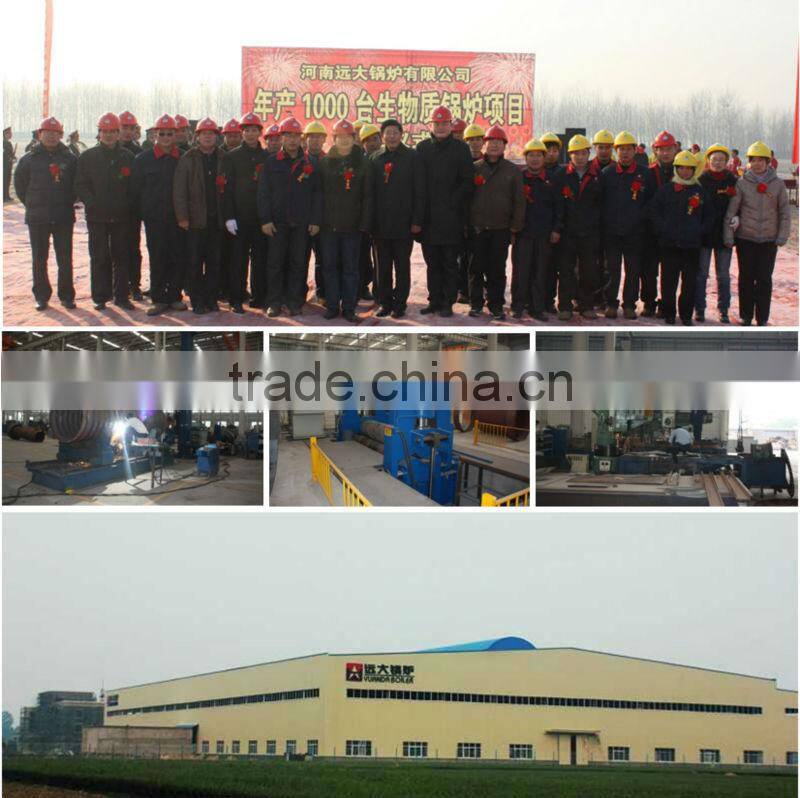

We Yuanda Boiler have over 30years Experienced  Engineer Team

 + 500ton/year Production Alibility



Waiting for your enquiry for the best factory price of Yuanda Boiler  :)
