Home > Manufacturing & Processing Machinery > Metallurgy Machinery > Whole Line! LED Bulb Assembly Line Machine
Whole Line! LED Bulb Assembly Line Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LEADY
Model Number:
LD-118
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LED Assembly Line EquipmentNegotiableMOQ: 1 Set -
Automatic Screw Assembly MachineNegotiableMOQ: 1 Set
-
Professional Manufacturer of LED Light Assembly LineNegotiableMOQ: 1 Set
-
LED Light Production Line for Led Making Factory Led Light Manufacturing MachineNegotiableMOQ: 1 Set
-
2016 Led Light Production Line /led Lamp Assembly LineNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
LEADY
Model Number
LD-118
After-sales Service Provided
Engineers available to service machinery overseas

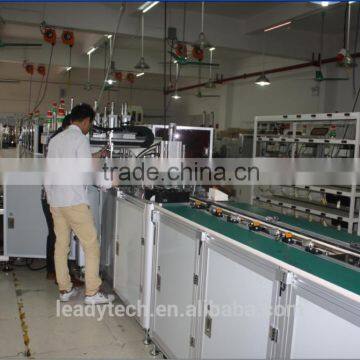

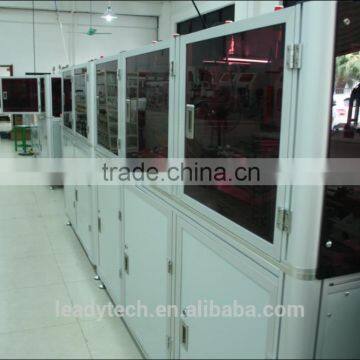

Whole line! LED bulb assembly line machine
led bulb automatic assembly machine
1,Scope:
Apply for large power LED lamp (such as :MR16 GU10 ) assembly.
2,Function:
The assembly line is major for plastic cups, power board, heat cup, led plate, lamp lens. Including red punching, glue dispensing, thermal grease, screw locking, soldering, tunnel oven drying, high voltage test (bad products removed), FCT test, test, light assembling lens etc. work station. The device also has the advantages of high voltage test, FCT test data upload computer storage, production quantity counting, production data analysis. The whole line is controlled by industrial computer, through the TCP protocol, local area network for each site data collection and control.
3,Parameter:
Outline Size :(L*W*H)700*900*2000mm
(X*Y*Z ) 250*250*100mm
Diver Type :4axis servo motor
Coordinate Precision XYZ :±0.02mm
Positioning R Axis:±0.05°
Slide Guide :import side screw rod
Control system :PLC control sys
Program Memory:256 groups,400dot /groups
Whole Line Voltage:220VAC,50HZ(tunnel oven 380VAC)
Power Rating:20KW--50KW (according to modules quantity )
Air Pressure:0.6Mpa
(Remark :line length according to customized module quantity)
Application:
Apply for large power LED lamp(such as :MR16.gu10)assembly
omized module quantity
