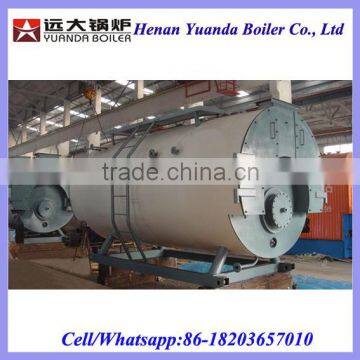

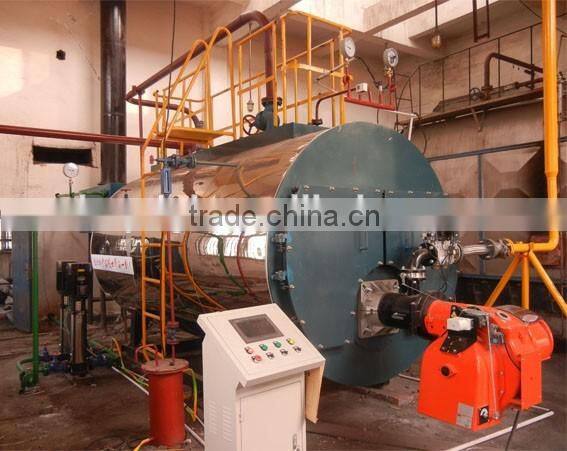

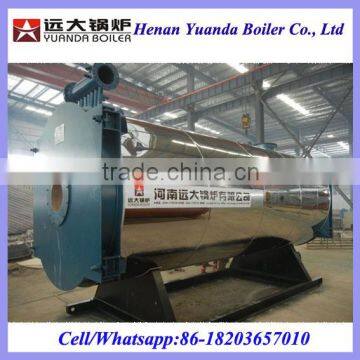

Industrial gas fired hot water and steam boiler
Product Description
Technical Parameter Table of WNS Series Steam Boiler
| Boiler model | Rated thermal power | Rating pressure | Feed water temperature | Steam temperature | Fuel consumption | Thermal efficiency | ||||
| Light oil | Heavy oil | natural gas | liquid gas | City gas | ||||||
| t/h | MPa | ℃ | ℃ | Kg/h | Kg/h | m3 /h | m3 /h | m3 /h | % | |
| WNS1-1.0-Y(Q) | 1 | 1 | 20 | 184 | 65.5 | 67.3 | 84.2 | 29 | 176 | 89 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 20 | 194 | 129.6 | 132.2 | 165 | 57.3 | 346 | 89.2 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 20 | 194 | 256 | 261.9 | 323.6 | 109 | 682 | 89.2 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 20 | 194 | 380 | 390.6 | 450 | 164 | 1020 | 89.7 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 105 | 194 | 503 | 517 | 642 | 209 | 1321 | 89.7 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 105 | 194 | 628 | 643 | 805 | 264 | 1654 | 90.3 |
Technical Parameter Table of WNS Series Hot Water Boiler
| Boiler model | Rated thermal power | Rating pressure | Hot water temperature | Return water temperature | Fuel consumption | Thermal efficiency | ||||
| Light oil | Heavy oil | natural gas | liquid gas | City gas | ||||||
| MW | MPa | ℃ | ℃ | Kg/h | Kg/h | m3 /h | m3 /h | m3 /h | MW | |
| WNS0.7-0.7/95/70-Y(Q) | 0.7 | 0.7 | 95 | 70 | 65.5 | 67.3 | 84.2 | 29 | 176 | 89 |
| WNS1.4-0.7/95/70-Y(Q) | 1.4 | 0.7 | 95 | 70 | 129.6 | 132.2 | 165 | 57.3 | 346 | 89.2 |
| WNS2.8-0.7/95/70-Y(Q) | 2.8 | 0.7 | 95 | 70 | 256 | 261.9 | 323.6 | 109 | 682 | 89.2 |
| WNS4.2-0.7/95/70-Y(Q) | 4.2 | 0.7 | 95 | 70 | 380 | 390.6 | 450 | 164 | 1020 | 89.7 |
| WNS5.6-1.0/95/70-Y(Q) | 5.6 | 1 | 95 | 70 | 503 | 517 | 642 | 209 | 1321 | 89.7 |
| WNS7-1.0/95/70-Y(Q) | 7 | 1 | 95 | 70 | 628 | 643 | 805 | 264 | 1654 | 90.3 |
| WNS10.5-1.0/95/70-Y(Q) | 10.5 | 1 | 95 | 70 | 940 | 965 | 1182 | 400 | 2417 | 90.8 |
| WNS14-1.0/95/70-Y(Q) | 14 | 1 | 95 | 70 | 1250 | 1301 | 1597 | 520 | 3299 | 91.2 |
Features of WNS Series Hot Water and Steam Boiler
1. Adopt the most updated technology, have the big combustion chamber, improve the combustion efficiency.
2. Equipped with the Burner of world’s famous brand Such as RIELLO, WEISHAUPT, which contributes to the higher combustion efficiency, lower failure rate.
3. Employ the advanced technology of corrugated furnace pipe structure, which increases the heat transfer area and satisfies the free expansion of the furnace upon heating.
4. Adopt the spiral smoke tube, which strengthens the effect of heat transfer and eliminates the welding stress.
5. Adopt the wet-back structure, which contributes to the higher liability and lower maintenance costs.
6. Various protection methods against the over-temperature, overpressure, lack of water, leakage and flame-out.
Introduction of Our Company
Brief Introduction
Henan Yuanda Boiler Co., Ltd., established in 1956, locates in Xihua county, Henan province, the central part of China. We are professional manufacturer and supplier for industrial boilers, with over 50 years’ experience in boiler design, technique, production, installation and operation. Our company is one of the leading enterprises which first obtained the national boiler manufacturing license in China. The products series include more than 150 kinds. Our annual production capacity of industrial boiler up to 5000 sets/year and various pressure vessels up to 6000 sets/year. So far, we sell to lots of countries and regions, such as Pakistan, India, Sri Lanka in South Asia, Philippine, Indonisia, Malaysia, Thailand, Veitnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Africa, Russia, Ukraine in Europe, Mexico, Chile in South America. Our products have gained excellent reputation all over the world.
Our Factory
Our Customers
Our Manufacturing Process
Our Certification
FAQ:
Q: How many product series do you have?
A: We specialized in Hot Water Boiler, Steam Boiler, Thermal Oil Boiler, Autoclave,Pressure Tanks, Wood Treatment Plant,etc.
Q: How many countries do you have exported?
A: We have exported to FIJI, Bangladesh, South Africa, Peru, Chile, Malaysia,Philippines, Indonesia, Packistan, etc.
Q: What is your acceptable payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or we negotiate the payment terms.
Q: Is your factory available to our visiting?
A: Yes, we welcome to your coming to our factory sincerely.
Contact Us
Above description are just the basic introduction of our boiler and company, in case that you are still desired to know more details about us, please do not hesitate to contact me, I am ready to give you my sincere advices. Considering the industrial boiler is of high value per unit, I also sincerely welcome you visiting to China and our factory to make sure the boiler you are purchasing is of good quality and high reliability.
