Wharf Fenders for Tug

Specifications

Hot-sale Low Reaction Force Cylindrical Fender
1.Material: EPDM.NR...
2.Certificates: ISO,CC...
3.High Quality, Low Price.

Sales Manager: Danny

Mobile Phone: 0086 15075828982

Tel: +86 3187091666

Fax: +86 3187952199

Website: /

Companies: CHINA BAOLI GROUP
Address: No.1888 Heping West Road, Hengshui City, Hebei Province, China.

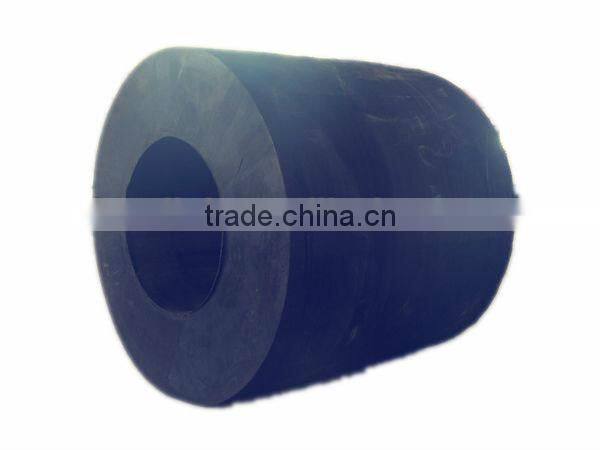

Cylindrical rubber fender, CY Rubber fender
     Cylindrical Rubber Fender is one kind of very popular marine rubber fender because of easy installation and operation, versatile and highly cost effective. With hollow cylindrical design, they can be produced to almost any length and diameter as required, matching to almost any application, including berths serving both large and small vessels such as general cargo, fishing vessels and tug vessels. They can be installed horizontally, vertically or diagonally and can be adapted to wharf corners.
    For all the different types of vessels, to ensure a safe and linear berthing, cylindrical fenders are generally used and recommended for all types of use. These cylindrical fenders are very economical and easily to install to the berthing installations.
   These cylindrical fenders are manufactured by a molding/compression process at very high pressure of 1,000 to 2,000 tons load; this becomes a much better result than the ancient extrusion process, resulting in zero porosity/bubble free molding of rubber cylindrical fenders.
   This results in a much longer lifetime for the cylindrical rubber fenders. These cylindrical fenders are manufactured in the range of outer diameter (OD) from 100 mm up to 3,000 mm and single molded pieces from 2 up to 3 meters as a standard. Cylindrical fenders of a higher length are available at specific request.
Features of Cylindrical Type Rubber Fender:
1. Material: NR, EPDM.
2. Color: Black
3. Cylindrical type rubber fender has low reaction force, proper surface pressure and reasonable energy absorb.
4. Cylindrical fenders get stronger adaptability for longitudinal and crosswise motion of ships during berthing.
5. Cylindrical fender is applicable for ships in different sizes and all sorts of docks.
6. Various installations way and easy for installation and maintenance.
7. Sizes: Customer's design and specifications are accepted.

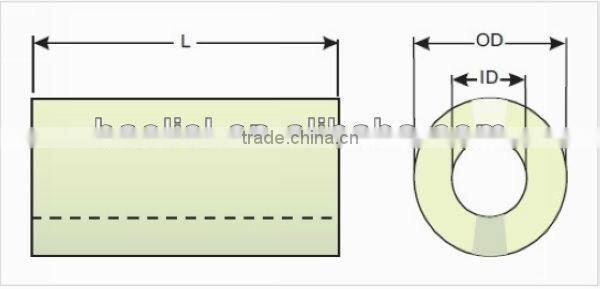

Specifications

The ratio of outer diameter to inner diameter of standard cylindrical fender is 2:1

Type	Outer Diameter(mm)	Inner Diameter(mm)	Length(m)(kg/m)
JCY150	150	75	All lengths can be supplied to meet the customers’request
JCY200	200	100
JCY250	250	125
JCY300	300	150
JCY400	400	200
JCY500	500	250
JCY600	600	300
JCY700	700	350
JCY800	800	400
JCY900	900	450
JCY1000	1000	500
JCY1100	1200	600
JCY1200	1400	700
JCY1300	1600	800
JCY1400	1400	700
JCY1500	1500	750
JCY1600	1600	800
JCY1700	1700	850
JCY1800	1800	900
JCY1900	1900	950
JCY2000	2000	1000

Note: cylindrical rubber fenders of other sizes can be produced according to customers’ request.

Performance

		50% Rated Deflection
		Reaction Force		Energy Absorption
Type	Outer Diameter/Inner Diameter D/d	FO Standard R.F	FH High R.F	FO Standard R.F	FH High R.F
JCY150	150/75	45	75	1.5	2
JCY200	200/100	61	97	2.7	4
JCY250	250/125	77	122	4.1	6.6
JCY300	300/150	91	146	6.1	9
JCY350	350/175	106	170	8.2	13
JCY400	400/200	121	195	10.2	17
JCY500	500/250	151	244	16.3	26.5
JCY600	600/300	183	292	24.5	27.5
JCY700	700/350	212	341	31.6	51
JCY800	800/400	242	391	41.8	67.3
JCY900	900/450	273	439	53	85.7
JCY1000	1000/500	303	489	65.3	105
JCY1100	1100/550	338	539	78.5	132
JCY1200	1200/600	370	585	96.9	155
JCY1300	1300/650	400	635	110	183
JCY1400	1400/700	430	683	131	212
JCY1500	1500/750	460	732	150	243
JCY1600	1600/800	491	792	180	288
JCY1700	1700/850	521	840	210	345
JCY1800	1800/900	552	889	252	414
JCY1900	1900/950	581	938	294	497
JCY2000	2000/1000	666	1075	327	596

Application
Bulk cargo, fishing and workboat berths

General cargo quays

Tug havens

Ferry terminals

Pontoons and floating structures
