CHINA BAOLI Geogrid

Specifications

CHINA BAOLI Geogrid:
1.Width:1-5 M,Length:50-100 M.
2.Certificate:CE/ISO.
3.Material:PP.
4.Experienced Manufacturer.

Contact Information:

Manager: Danny

Mobile Phone::+8615075828982/+8613833865001

Fax:+86 3182353322

Tel: +86 3182316633

Website: www.chinabaoli.ru

Companies: CHINA BAOLI GROUP

Address: No.589 Shunping Street High-tech Developing Zone, Hengshi City, Hebei Province, China.

Introduction:

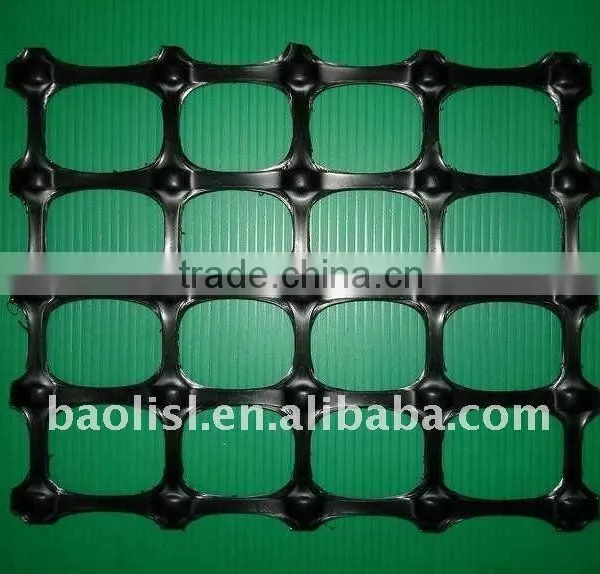

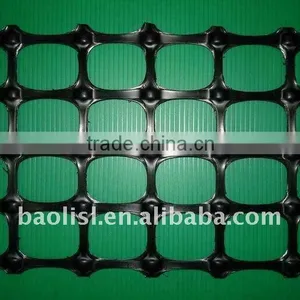

BAOLI Biaxial PP geogrid is made of high molecular polymer through extrusion, forming and punching before longitudinal and lateral stretching. This material has considerable tensile strength in longitudinal and lateral directions. This chain structure can effectively bear and diffuse forces on soil and is applicable to large area permanent load bearing foundation as a reinforce.



Features of Tensar Geogrid made in CHINA BAOLI GROUP:

1. High tensile strength in both vertical and horizontal;

2. Good creep resistance, deformation of elongation ratio reached the required deformation of subgrad feature;

3. Large coefficient of friction with sand and rock

4. Stable chemical performance;

5. Easy construction: low weight, easy operation, simple construction;

Functions of CHINA BAOLI Geogrid:

Reinforcement and Strengthen

1. Increase the bearing capacity of the roadbed and foundation and prolong their service life.
2. Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.
3. Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense.
4. Prevent culverts from flawing.
5. Enhance earth slope and prevent water loss and soil erosion.
6. Decrease underlayer thickness and save manufacturing cost.
7. Enhance the stability of side slope turf net patch to improve greening.
8. Replace wire netting used in mine as intermediate ceiling netting.

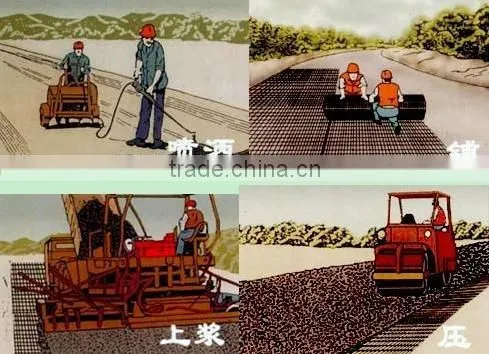

Applications of CHINA BAOLI Geogrid:

Widely used in the areas of railway, highway, water conservancy etc. BAOLI Biaxial PP geogrid stretch plastic geogrid is used to reinforce dyke and roadbed, side slope, tunnel wall, large airport, parking lot, pier freight yard, etc. That are with permanent load bearing.

1. Reinforce the subgrade;

2. Strength the pavement;

3. Repress the fatigue crack;

4. Enhance soil slopes to guard against soil erosion.

Specifications of CHINA BAOLI Geogrid:

Item	TGSG15-15	TGSG20-20	TGSG30-30	TGSG40-40
Longitudinal Tensile Strength(kN/m)	15	20	30	40
Transverse Tensile Strength(kN/m)	15	20	30	40
Longitudinal Yield Elongation(%)< =	15
TransverseYield Elongation(%)< =	13
Longitudinal Yield Strength at 2% Elongation(kN/m) > =	5	7	11	14
Transverse Yield Strength at 2% Elongation(kN/m) > =	5	7	11	14
Longitudinal Yield Strength at 5% Elongation(kN/m)> =	7	14	21	28
Transverse Yield Strength at 5% Elongation(kN/m) > =	7	14	21	28
Product Length/roll, m	50+0.20
Product width , m	1-5
