Specifications
1) Polyester Geogrid2) Materials: Polyester
3) Tensile strength: 15KN - 100KN
4) Width: 1 - 6m...
Polyester Geogrids
Polyester Geogrids improve the structural integrity of soils in roadways, walls and slopes by reinforcing and confining fill materials and distributing load forces. Polyester Geogrids are the answer for designers, developers and contractors facing the challenges posed by sloping ground and soft subgrades.

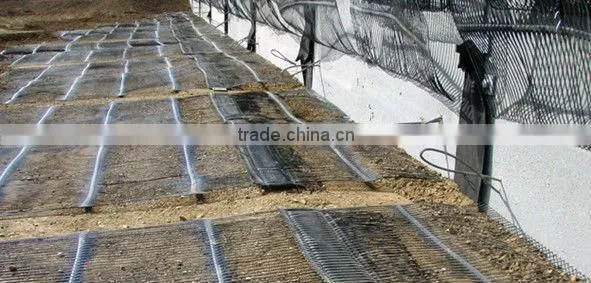

Polyester Geogrids help soils stand at virtually any desired angle in grade separation applications. In retaining wall and slope applications, geogrids can be combined with a wide variety of facing elements to produce the desired aesthetics for any project.

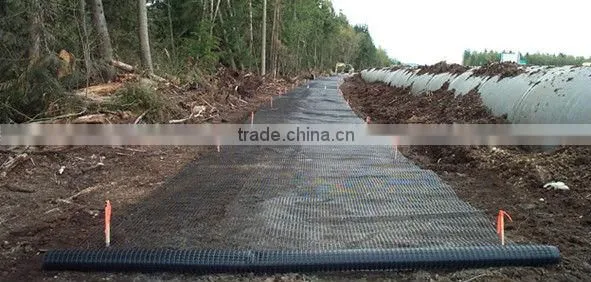

Polyester Geogrids provide support for the construction of access roads, highways, berms, dikes and structure applications that previously required the use of expensive over-excavating or piling methods on weak subgrades. Polyester Geogrids are also used in base reinforcement applications to reduce aggregate thickness requirements or extend roadway performance life.
Polyester Geogrids
Polyester Geogrids improve the structural integrity of roadways by confining and distributing load forces. Polyester Geogrids provide support for the construction of access roads, highways and applications on weak subgrades that previously required expensive over-excavating and replacing. Polyester Geogrids are also used for road construction on stable subgrades to reduce aggregate thickness requirements and/or extend roadway performance life.
When building permanent roads on a relatively firm foundation, Polyester Geogrids provide
enhanced performance or reduction of the road structure thickness. Polyester Geogrids change
the way the base course performs under load. With their open grid structure and high tensile
modulus, they interact with and confine base course materials, much like a rack confines balls
in the game of pool.
When weak subgrade conditions are encountered Polyester Geogrids are used to provide
a temporary road surface or a stable foundation for a permanent road. Polyester Geogrids work
much like a snowshoe to distribute loads over a wider area.
Technical parameters
Item |
TGSG15 |
TGSG20 |
TGSG30 |
TGSG40 |
TGSG45 |
Longitudinal tensile yield strength per long meter KN/M≥ |
15 |
20 |
30 |
40 |
45 |
Horizontal tensile yield strength per long meter KN/M≥ |
15 |
20 |
30 |
40 |
45 |
Longitudinal yield elongation rate ≤% |
13 |
||||
Horizontal yield elongation rate ≤% |
16 |
||||
Tensilestrength when longitudinal elongation rate is 2% KN/M≥ |
5 |
8 |
11 |
13 |
16 |
Tension strength when horizontal elongation rate is 2% KN/M≥ |
7 |
10 |
13 |
15 |
20 |
Tensile strength when longitudinal elongation rate is 5% KN/M≥ |
8 |
10 |
15 |
16 |
25 |
Tension strength when horizontal elongation rate is 5% KN/M≥ |
10 |
13 |
15 |
20 |
22 |
Applications
