Home > Products > Gas Boiler > Industrial Boilers Prices Natural Gas Fired/0.5-20ton/hr Natural Gas Fired Industrial Boilers

Industrial Boilers Prices Natural Gas Fired/0.5-20ton/hr Natural Gas Fired Industrial Boilers

Name: Industrial Boilers Prices Natural Gas Fired/0.5-20ton/hr Natural Gas Fired Industrial Boilers
Brand: Yuanda Boiler
Availability: InStock

FOB Price

US$ 10,000 - 100,000 / Unit

1 Unit(Min. Order)

Port Lianyungang Shanghai Qingdao Shanghai
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Natural Circulation
Usage	Industrial	Structure	Other, Fire Tube, 3 step fire tube boiler
Pressure	Low Pressure	Style	Horizontal
Fuel	Other, Gas/Oil Fired, Natural gas,LPG,CNG,LNG,Diesel,heavy oil	Place of Origin	Henan, China
Brand Name	Yuanda Boiler	Model Number	WNS
Output	Other, Steam Boiler/hot water boiler	Dimension(LWH)	Customization
Weight	5~50ton	Certification	ISO9001
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Industrial boilers prices natural gas fired/0.5-20ton/hr natural gas fired industrial boilers

1. Introduction of industrial boilers prices natural gas fired/0.5-20ton/hr natural gas fired industrial boilers

It is is 0.5-20ton gas/oil(Natural gas,LPG,CNG,LNG,city gas,Diesel,heavy oil)fired horizontal, three-pass, wet back, fire tube boiler. Wet back means the back of furnace is surrounded by water, then the temperature of tube plate will be much lower.

2. Technical parameter of industrial boilers prices natural gas fired/0.5-20ton/hr natural gas fired industrial boilers

Boiler model	Rated thermal power	Rating pressure	Feed water temperature	Steam temperature	Fuel consumption					Thermal efficiency
	Rated thermal power	Rating pressure	Feed water temperature	Steam temperature	Light oil	Heavy oil	natural gas	liquid gas	City gas	Thermal efficiency
	t/h	MPa	℃	℃	Kg/h	Kg/h	m³ /h	m³ /h	m³ /h	%
WNS1-1.0-Y(Q)	1	1	20	184	65.5	67.3	84.2	29	176	89
WNS 2-1.25- Y(Q)	2	1.25	20	194	129.6	132.2	165	57.3	346	89.2
WNS4-1.25- Y(Q)	4	1.25	20	194	256	261.9	323.6	109	682	89.2
WNS6-1.25- Y(Q)	6	1.25	20	194	380	390.6	450	164	1020	89.7
WNS8-1.25- Y(Q)	8	1.25	105	194	503	517	642	209	1321	89.7
WNS10-1.25- Y(Q)	10	1.25	105	194	628	643	805	264	1654	90.3

3. Features of industrial boilers prices natural gas fired/0.5-20ton/hr natural gas fired industrial boilers

1.Adopt shell type three psss structure. Fuel burned in the furnace, then high temperature flue goes through reburning chamber to the first flue tubes, and then goes through front flue box and turn 180° to the second flue tubes. This highly improves the heated area and reduces flue discharge temperature.

2.Adopt the most updated technology, have the big combustion chamber, improve the combustion efficiency.

3. Equipped with the Burner of world’s famous brand Such as BALTUR, RIELLO, WEISHAUPT, which contributes to the higher combustion efficiency, lower failure rate.
4. Employ the advanced technology of corrugated furnace pipe structure, which increases the heat transfer area and satisfies the free expansion of the furnace upon heating.

5. Adopt the spiral smoke tube, which strengthens the effect of heat transfer and eliminates the welding stress.

6. Adopt the wet-back structure, which contributes to the higher liability and lower maintenance costs.

4. Accessories of industrial boilers prices natural gas fired/0.5-20ton/hr natural gas fired industrial boilers

Product name	Quantity (set)
1. Boiler main part	1
2. imported gas/oil burner	1
3. Electric control box	1
4. Valve & Gauge used on boiler main part	1
5. Feeding water Pump	2
6. Smoke chimney	1
7. Water treatment equipment	1
8. Steam distributor	1
The above is standard, other accessories needed contact us for details

5.Packing and shipping of industrial boilers prices natural gas fired/0.5-20ton/hr natural gas fired industrial boilers

1). Way of delivery: by Sea or Railway or truck based on needs

2). Shipping model: by normal container and flat rack or bulk cargo based on goods, we can suggest the container

3). Customers specifying freight forwarders or we send bottom shipping price from our forwarder partner for your reference, negotiable shipping methods

4). Packing: nude for boiler main part in nude, accessories in export-use wooden box

6. Related products

(1)Quick steam output 0.5-20t/h gas fired steam boiler for textile mill

(2)Yuanda boiler 1-20ton capacity dissel oil and natural gas fired steam boiler

(3)1-5 ton heavy oil fired steam boiler for small scale industries

(4)5ton 6ton 8ton 10ton Natural Circulation Type and New Condition oil and gas steam boiler

(5)1-10ton dual fuel steam boiler natural gas/dissel oil fired

(6)15ton/20ton Natural gas,LPG,CNG,LNG,Diesel,heavy oil fired industrial steam boiler

(7)Fire Tube 3 Pass Wet Back Type Oil Fired Steam Boiler

(8)Steam and Hot water boiler Oil and Gas fired boiler

Company introduction

Henan Yuanda boiler Co,. Ltd, located in Xihua country, Henan province, is the leading manufacturer of industrial boiler in China. We are professional in manufacturing boilers for 60 years till now(established in 1956). Our company is one of the leading enterprises which firstly obtained the national boiler manufacturing license in China. We have our own factory, professioanl engineers and sales team. Our products are not only well-sold in China, but also export to lots of countries and regions. Our aim is "Yuanda warm every corner of the world".

Our products series include more than 150 kinds. Mainly includes:

0.2-20ton/hour industrial boilers with below 2.5Mpa pressure
Steam boiler or hot water boiler
Fuel: coal or biomass or gas or oil etc.
Model: DZL, SZL, WNS, LHS, LNB, LSC etc.

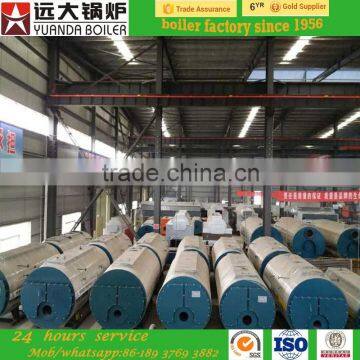

Our factory:

Our certificates:

Our customers:

Our manufacturing process:

Contact

Above description are just the basic introduction of our boiler and company, in case that you are still desired to know more details about us, please do not hesitate to contact me, I am ready to give you my sincere advices. Considering the industrial boiler is of high value per unit, I also sincerely welcome you visiting to China and our factory to make sure the boiler you are purchasing is of good quality and high reliability.For product details and quotation, pls contact Mandy. We also warmly welcome you to visit our factory.
