2-3ton natural gas fired steam boiler for food dehydration/food project
1. Introduction of 2-3ton natural gas fired steam boiler for food dehydration/food project
Automatic WNS boiler is a kind of horizontal, three-pass, wet back, fire tube boiler. Wet back means the back of furnace is surrounded by water, then the temperature of tube plate will be much lower. Normally the rated capacity of WNS series boiler is less than or equal to 20tons and rating pressure is less than 2.0MPa.
2. Product details of 2-3ton natural gas fired steam boiler for food dehydration/food project
| Model | WNS series Boiler |

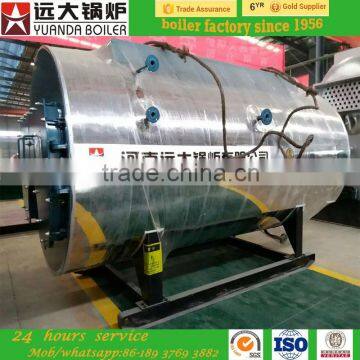

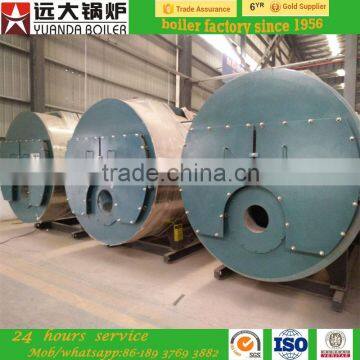

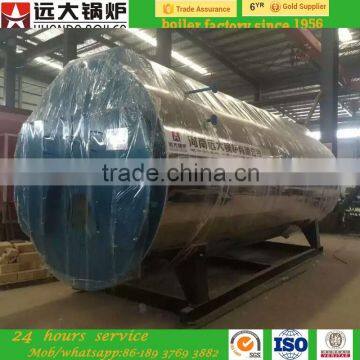

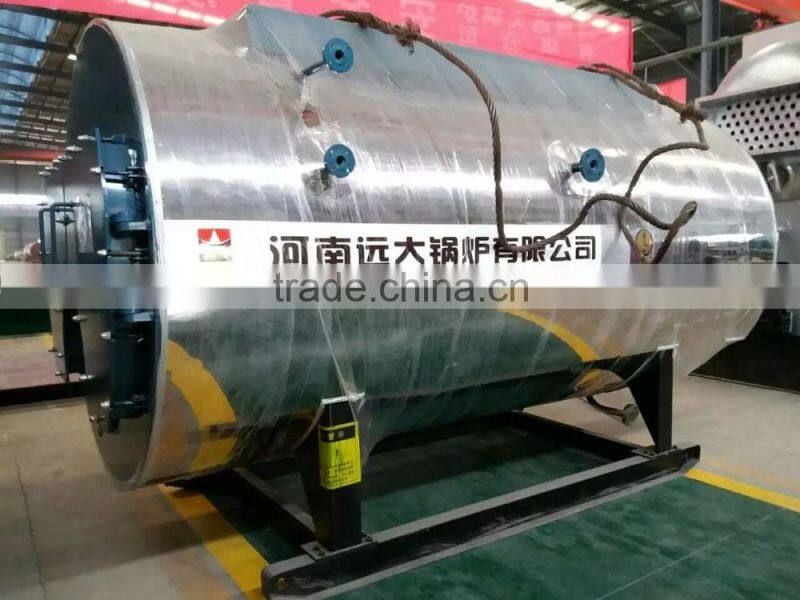

| Picture | |
| Fuel | Natural gas,LPG,CNG,LNG,Diesel,heavy oil fired |
| Output | staturated steam |
| Structure | 3 step fire tube boiler |
| Capacity | 1 ton ,2 ton, 4 ton ,5 ton, 3 ton, 6 ton ,8 ton, 10 ton ,15 ton ,20 ton |
| Type | Horizontal type boiler |
| Usage | Food factory,textile factory,chemical factory,dyeing,printing,feed mills,fertilizer plant |
3. Technical datasheet of 2-3ton natural gas fired steam boiler for food dehydration/food project
| WNS Series Steam Boiler Technology Parameter Table | ||||||||||||
| Boiler model | Rated capacity |
Rating pressure |
Feed temperature |
Steam temperature |
Active grate area | Thermal efficiency |
Weight | Dimensions | ||||
| Light oil | Heavy oil | Natural gas | Liquid gas | City gas | ||||||||
| t/h | MPa | ℃ | ℃ | Kg/h | Kg/h | m3/h | m3/h | m3/h | % | Ton | mm | |
| WNS1-1.0-Y(Q) | 1 | 1 | 20 | 184 | 65.5 | 67.3 | 84.2 | 29 | 176 | 91 | 4.3 | 3561×1690×1910 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 20 | 194 | 129.6 | 132.2 | 165 | 57.3 | 346 | 92 | 7.2 | 4111×1950×2199 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 20 | 194 | 192 | 195 | 250 | 82 | 510 | 92.1 | 8 | 4330×2248×2564 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 20 | 194 | 256 | 261.9 | 323.6 | 109 | 682 | 93 | 9.6 | 4732×2150×2448 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 20 | 194 | 318 | 322 | 386 | 140 | 87 | 93 | 12.5 | 5970×2360×2796 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 20 | 194 | 380 | 390.6 | 450 | 164 | 1020 | 93.2 | 16.5 | 5500×2600×2990 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 105 | 194 | 503 | 517 | 642 | 209 | 1321 | 93.5 | 24.8 | 6450×2800×3200 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 105 | 194 | 628 | 643 | 805 | 264 | 1654 | 93.5 | 26.8 | 6800×2900×3394 |
| WNS15-1.25- Y(Q) | 15 | 1.25 | 105 | 194 | 940 | 965 | 1182 | 400 | 2417 | 93.5 | 38 | 7150×3200×3540 |
| WNS20-1.25- Y(Q) | 20 | 1.25 | 105 | 194 | 1250 | 1301 | 1597 | 520 | 3299 | 93.5 | 55 | 8200×3400×3826 |
4. Advantages of 2-3ton natural gas fired steam boiler for food dehydration/food project
1).Adopt the latest international technology of big volume combustion design and deploy world famous burner, making the boiler has more fully burning, higher efficiency and lower failure rate.
2).Adopt the advanced structure of corrugated furnace. On one hand, it increases the heat-transfer area. On the other hand, it can bear the free expansion of furnace after heating.
3).Adopt thread smoke tube, which can enhance heat-transfer and eliminate welding stress.
4).Adopt double seal structure with the back of inner seal surrounded by water, which makes the boiler more reliable and maintenance costs lower.
5). double door design, it is very convenient for checking and maintainace.
6). All kinds of protective functions, such as over-temperature, over-pressure, water shortage, leak checking, flame-out and so on,ensuring safe and reliable operation of boiler.

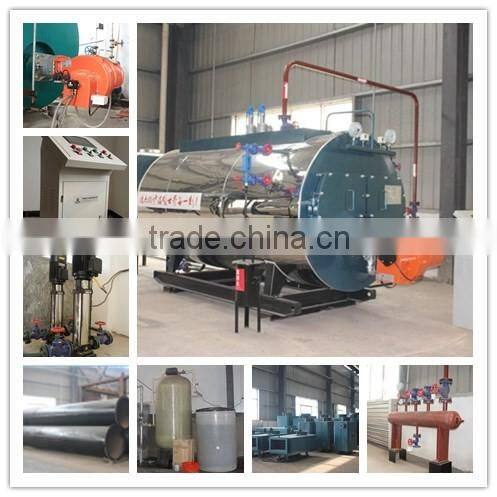

6. Supply Cope of 2-3ton natural gas fired steam boiler for food dehydration/food project
Product name |
Quantity (set) |
1. Boiler main part |
1 |
2. Imported gas/oil burner |
1 |
3. Electric control box |
1 |
4. Valve & Gauge used on boiler main part |
1 |
5. Feeding water Pump |
2 |
6. Smoke chimney |
1 |
7. Water treatment equipment |
1 |
8. Steam distributor |
1 |
The above is standard, other accessories needed contact us for details | |
7. Ceritificates we have
Henan Yuanda boiler Co,. Ltd, located in Xihua country, Henan province, is the leading manufacturer of industrial boiler in China. We are professional in manufacturing boilers for 60 years till now(established in 1956). Our company is one of the leading enterprises which firstly obtained the national boiler manufacturing license in China. We have our own factory, professioanl engineers and sales team. Our products are not only well-sold in China, but also export to lots of countries and regions. Our aim is "Yuanda warm every corner of the world".
Our products series include more than 150 kinds. Mainly includes:
- 0.2-20ton/hour industrial boilers with below 2.5Mpa pressure
- Steam boiler or hot water boiler
- Fuel: coal or biomass or gas or oil etc.
- Model: DZL, SZL, WNS, LHS, LNB, LSC etc.
Warranty:
Two-year warranty and full-life service for all of our boilers
Boiler spare parts service:
A full range of original spare parts are available for all Yuanda boilers
Service before sale:
Provide relative technical data for customer choosing equipments,layout drawing,foundation,general grawing.
Service after sale:
Help customer for installation and traing.
Maintenance and repair for two years.
