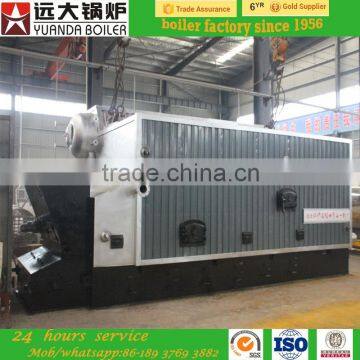

SZH2-1.25-AII low pressure fixed grate high efficiency biomass steam boiler

 SZH2-1.25-AII low pressure fixed grate high efficiency biomass steam boiler

1.Product introduction of  SZH2-1.25-AII low pressure fixed grate high efficiency biomass steam boiler

   SZL(D)series product has a double-drum offset hearth (D-type layout), high technological content, environmental protection and energy conservation. This  series of product has obtained National Scientific and Technological Progress Second Prize and Singapore New Product Expo Golden Lion Award, and is a key promoted product of national energy-saving projects.

 2. Product application of  SZH2-1.25-AII low pressure fixed grate high efficiency biomass steam boiler

Widely used in chemical industry, plastics industry, coatings and automotive industries, bitumen industry, construction equipment industry, shipbuilding industry, apparel clothing, washing, ironing, the pharmaceutical industry, biotechnology, food industry, sauna and beauty, hotels, restaurants, sports, fitness and other places where need energy.

3. Technical parameter of SZH2-1.25-AII low pressure fixed grate high efficiency biomass steam boiler

4. Product details of SZH2-1.25-AII low pressure fixed grate high efficiency biomass steam boiler

Model	SZL series boiler
Fuel	Biomass pellet,biomass briquette,rice husk,straw,palm shell,bagasse ,wood pellet ,charcoal fired
Output	Steam
Structure	Horizontal industrial boilers
Capacity	1 ton ,2 ton, 4 ton ,5 ton, 3 ton, 6 ton ,8 ton, 10 ton ,15 ton ,20 ton
Type	Horizontal type package boiler
Usage	Food factory,textile factory,chemical factory,dyeing,printing,feed mills,fertilizer plant,etc

5. Main features of SZH2-1.25-AII low pressure fixed grate high efficiency biomass steam boiler
1. National Scientific and Technological Progress Second Prize
2. Singapore New Product Expo Golden Lion Award
3.It is three pass boiler. The smoke go through three phase, making the boiler have  higher heat transfer efficiency and lower smoke temperature emissed.
4.The hearth is designed with a cyclone reburning chamber, which makes the boiler energy saving, high  combustion efficiency and environmental friendly.  Theis design won the national patent.   Big size coal/biomass firstly burned in the first part of the furnace; and then , forced fan makes the smaller size dust burn in the second part of furnace  through high speed revolution, mixed combustion and dust separation.; At last, if there is unburned fuel, it will fall to the moving grate through ash hole to burn for the second time.  In this way, all fuels will be fully burned, then it will help you to save fuels cost. At the same time, all dust are burned with fuels , it is environmental friendly.  This is the biggest advantage of this type boiler.
5.The hearth has large volume and strong fuel adaptability, it can use various biomasses and coal as the fuel.The big size furnace can well be adapted to biomass's  feature of high flame.
6. It has a double-drum offset hearth (D-type layout) with furnace in the right side of the boiler and two drums in the left side of the boiler,  the structure is very compact. It makes the size of boiler room smaller,which can help you to save the cost of construction of boiler room.
7. It has large heating surface, rapid boost, sufficient capacity, rapid warming and low energyy consumption.
8.The arch is specially designed accordign to the fuel, it can highly improve the heating efficiency.The former arch improves the fuel fire conditions and promotes ignition. For the back arch, on one hand, it promotes thorough mixing of fuel and air. On the other hand, the arch generates radiant heat, which makes the fule to burn fully.
9.Using Silicate insulation material, making the boiler have high insulation effect . At the same time,ensures the boiler efficiency.
10.Packaged boiler, it is easy to install and the installation time is short.

6. Associated Equipment of  SZH2-1.25-AII low pressure fixed grate high efficiency biomass steam boiler

7. Package and delivery

1. Way of delivery: by Sea or Railway or truck based on needs

2. Shipping model: by normal container and flat rack or bulk cargo based on goods, we can suggest the container

3. Customers specifying freight forwarders or we send bottom shipping price from our forwarder partner for your reference, negotiable shipping methods

4. Packing: nude for boiler main part in nude, accessories in export-use wooden box

8. Introduction of Our Company

   Henan Yuanda boiler Co.,Ltd was founded in 1956, the production base is located in Xihua county of Henan province, which is the hometown of Laozi, the birthplace of Nuwa. The research and development center, marketing center is located in Zhengzhou city, Henan province. Yuanda Boiler Co., Ltd is one of the high-tech enterprises which focus on the research and development, production, sales of heating system. We have established the long-term cooperation relationships with famous universities and research institutes in China, have the international expert support system, acquire forty years’ experience in boiler manufacturing, installation and operation.

At present,we have formed an annual production capacity of 2000 tons industrial boiler,5000 tons of all kinds of pressure vessel. Quality is our first priority, we have passed the international quality system certification, and strictly enforce the ISO9001 international quality management standards.

Over the past 60 years, we see the technological innovation, research and development of science as our foundation, continuously improve the efficiency and security of the boiler, and we are committed to providing customers with safe, energy-saving, environmental protection boiler products, creating more value for customers, creating the greatest benefit for employees, shouldering more responsibility for the society.

Our Factory

Producing  process

 Our Customers

9.Our Services

Yuanda Boiler  promises the high quality of every set of boiler and satisfactory after-sales service as follows:

1.The warranty period of main body and accessories  is 2 years and 3 years seperately.

2.During the warranty period , if our boiler was defective due to the quality problem, We

   will replace the bolier body or boiler parts without additional charges.

3. Our Technician will be available anytime when you need our relevant guidance.

4.Regarding to the installation and training, the buyer would undertake the relevant

   fees such as accommodation fees,training fees, etc.
