Specifications

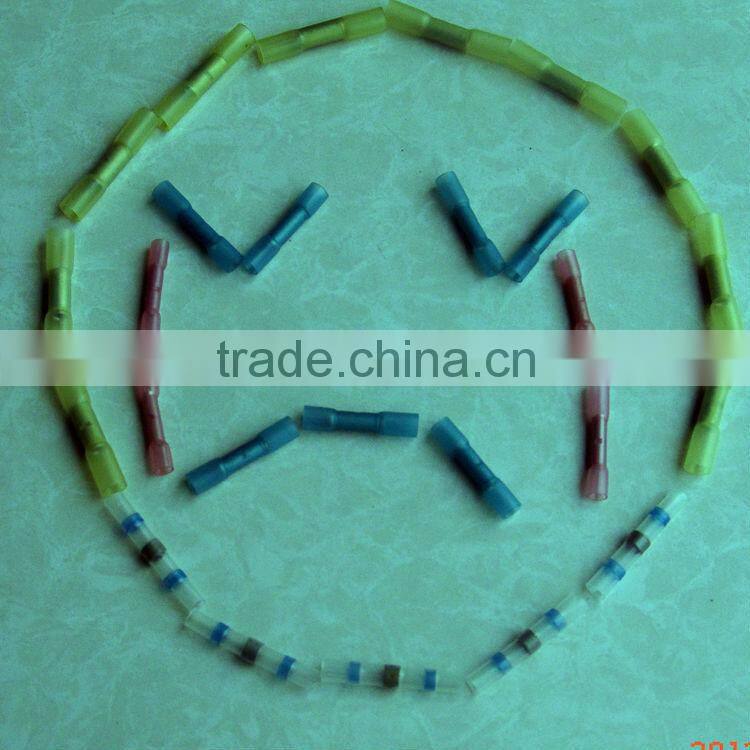

High quality waterproof terminal connector1.heat-shrinkable
2.super high strength and hot-melt adhesive
3.insulation and sea
DUAL WALL HEAT SHRINKABLE TUBING FOR CRIMP SEALING
Features/Applications-sleeves tubing
HBCS heat-shrinkable tubing is manufactured by co-extrusion polymeric materials with super high strength and hot-melt adhesive. Designed to provide both insulation and Sealing for wire connector.
Shrink ratio: 3:1
Operating temperature: -55°C~125°C
Minimum full shrink temperature: 110°C
Standard color: Clear, Red, Clear, Yellow, Clear, Blue
Technical data:
Property |
Test Method |
Typical Data |
Tensile strength |
ASTM D 2671 |
28MPa(min) |
Elongation at break |
ASTM D 2671 |
500%(min) |
Longitudinal shrinkage |
UL224 |
0 to -10% |
|
Heat shock Tensile strength Ultimate elongation |
250°C,4hrs |
No cracking, flowing of out wall 270%(min) |
Heat resistance |
165°C/168 hrs |
No cracking, flowing of out wall |
Cold bend -55°C,4 hr |
ASTM D 2671 |
No cracking of outer wall |
Voltage withstand AC 2500V, 60seconds |
ASTM D 2671 |
No breakdown |
Volume resistance |
ASTM D 876 |
1014Ω.cm(min.) |
Copper corrosion(158°C,168hrs.) |
UL224 |
Pass |
Water absorption |
ASTM D 570 |
<0.5% |
Fluid resistance(23 °C/ 24 hrs) |
ASTM D 2671 |
Good to excellent |
Specific gravity |
|
0.96 |
Dielectric strength |
ASTM D 2671 |
32KV/mm |
|
Normal size (mm)
|
As supplied (mm)
|
After recovered (mm)
|
Standard length (m) |
||
|
Inside diameter (min.) |
Inside diameter (Max.) |
Total Wall thickness (Nom.) |
Adhesive Thickness (Nom.)
(nom.) |
||
4.5 |
1.3 |
1.3 |
1.30 |
0.56 |
100 |
5.0 |
1.9 |
1.8 |
1.52 |
0.76 |
100 |
6.5 |
2.2 |
2.2 |
1.91 |
1.12 |
100 |
