Lithium Battery Pack for pv System Energy Storage 12v 24v 36v 48v 96v

US$ 6.5 - 6.8 MOQ: 5000 Amperes

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

AET

Model Number:

24V100AH

Shenzhen Xinyongfeng Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name AET

Model Number 24V100AH

Composed Type Other, Composed Type: 8 serials

Type Li-Ion

Size 165(T)*250(W)*315(H)(mm)

Voltage 24V

Weight 21.2Kg

Nominal Capacity 100AH

Application car ,UPS, solar and wind energy storage

Specifications

lithium Battery Pack for pv system energy storage 12v 24v 36v 48v
1,high capacity and voltage
2,high energy density
3,safe

Product Description

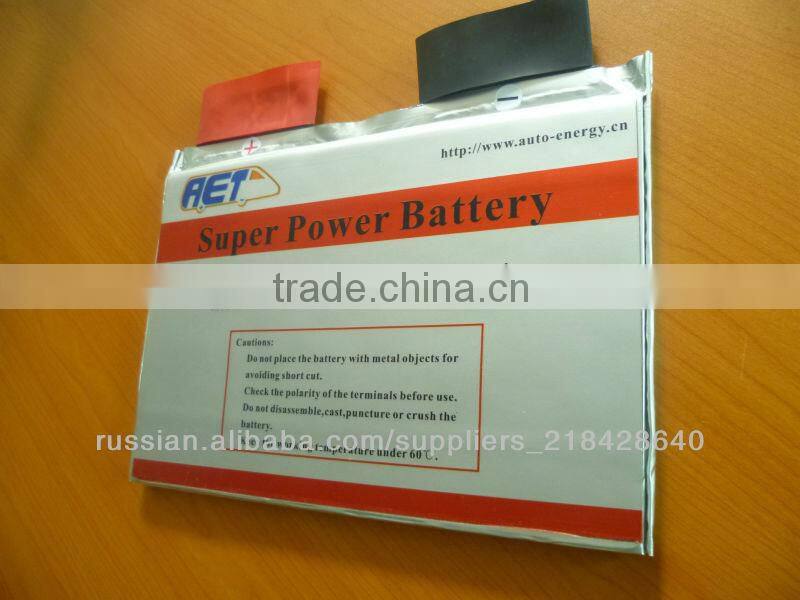

wholesale 24V 100Ah LiFePO4 Battery Pack
1,high qualtity with CE ,MSDS,ISO certifications
2,high energy density
3,safe

24V 100Ah large capacity for LFP Soft Package battery PACK

Item	Basic parameters
Model	24V100AH
Material of Anode/Cathode	LiFePO4/Graphite
Size	165(T)×250(W)×315(H)(mm)
Weight	About 21.2Kg
Nominal capacity	100Ah
Nominal Voltage	24V
Internal resistance	≤8mΩ
Energy density	≥130Wh/kg at 0.2CDC
Volumetric energy density	≥220WH/L at 0.2CDC
Discharge cut-off voltage	16V
Charge voltage	29.2V
Standard charging	0.2C constant current charge to 29.2V, then constant voltage 29.2V charge till charge current decline to≤0.05C
Standard discharging	0.2C CC discharge to 16V.
Low temperature performance	0.2C capacity higher than 70% of nominal capacity under -20°C
High temperature performance	0.5C capacity higher than 98% of nominal capacity under 55°C
Standard charge/discharge cycle life	Cycle life of standard charge/discharge capacity after 2000 cycles greater than 80% of initial capacity
Max .continual charge current	100A ( 1C)
Max. continual discharge current	200A (2C)
Max. Charge/discharge pulse current (10S)	400A (4C)
Operating temperature	Charging: 10~45°C, Discharging:-20~55°C
Storage temperature	Less than 1 year: 0~25°C Less than 3 months:-10~45°C
