Cars Spare Parts Din73379 5/16 Inch High Quality Diesel Flexible Hose

Cars Spare Parts Din73379 5/16 Inch High Quality Diesel Flexible Hose thumbnail-1
Cars Spare Parts Din73379 5/16 Inch High Quality Diesel Flexible Hose photo-1
US$ 0.8 - 0.95 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YUTE
Model Number:
OEM
Contact Supplier Request Quote Chat Now
Yuyao Hengtegu Auto Parts Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai for diesel flexible hose
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YUTE
Model Number OEM

cars spare parts din73379 5/16 inch high quality diesel flexible hose



Product Description



Specifications(  diesel flexible hose )

Tube:

Fuel and oil resistant smooth bore

Reinforcement:

High tensile braided textiles

Cover:

Resistant to chemical attack or swelling by gasoline, oxidized gasoline,E85 gasoline and diesel fuel

Packaging:

20 meters/roll or according to customer’s requirements

Applications:

Designed for conveying gasoline E-85 gasoline, diesel,engine oil, kerosene, hydraulic oil and bio-diesel fuel in Automobile industry

Standard:

SAE J 30R6/R7/R9/R10 ,DIN 73379 Type 2A

Working Temperature:

-40℃~ +120℃(-40 F ~ +248F)

Marking:

Manufacture’s identification/Fuel hose/Size/Standard/W.P and B.P





























































 sizes and performance parameters :

NO

I.D

Refer to O.D

Working pressure

Burst

pressure

approximate Weight

(inch)

(mm)

(inch)

(mm)

MPa

Psi

MPa

Psi

kg/m

lbs/ft

1

1/8

3.2±0.2

0.35

9±0.3

2.06

300

8.27

1200

0.078

0.12

2

5/32

4±0.2

0.4

10±0.3

2.06

300

8.27

1200

0.092

0.14

3

3/16

4.8±0.2

0.43

11±0.3

2.06

300

8.27

1200

0.108

0.16

4

1/4

6.3±0.3

0.5

12.7±0.3

2.06

300

8.27

1200

0.134

0.2

5

5/16

8.0±0.3

0.56

14±0.3

2.06

300

8.27

1200

0.147

0.22

6

3/8

9.5±0.3

0.63

16±0.4

2.06

300

8.27

1200

0.182

0.27

7

15/32

12±0.3

0.75

19±0.5

2.06

300

8.27

1200

0.238

0.35

8

1/2

12.7±0.4

0.78

20±0.5

2.06

300

8.27

1200

0.262

0.39

9

5/8

16±0.4

0.94

24±0.5

1.03

150

4.12

600

0.351

0.52

10

3/4

19±0.4

1.13

28.8±0.5

1.03

150

4.12

600

0.515

0.77

11

1

25.4±0.5

1.38

35±0.6

1.03

150

4.12

600

0.637

0.95





Buying Guides



SAE30R2

Coupled and Uncoupled Synthetic Rubber Tube and Cover

SAE30R3

Lightweight Braided Reinforced Lacquer, Cement, or Rubber Covered Ho

SAE30R5

Wire Inserted Synthetic Rubber Tube and Cover

SAE30R6

Low-Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover

SAE30R7

Low-Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover

SAE30R8

Low-Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover

SAE30R9

Fuel Injection Hose Medium-Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover

SAE30R10

In-Tank, Low-Pressure, Uncoupled Fuel Hoses

SAE30R11

Low Permeation Fuel Fill, Vent, and Vapor Hose

SAE30R12

Low Permeation Fuel Feed and Return Hose

SAE30R13

Diesel and Biodiesel Fuel Feed and Return Hose

SAE30R14

Low Permeation, Low Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover Hose for Small Engines



Detailed Images

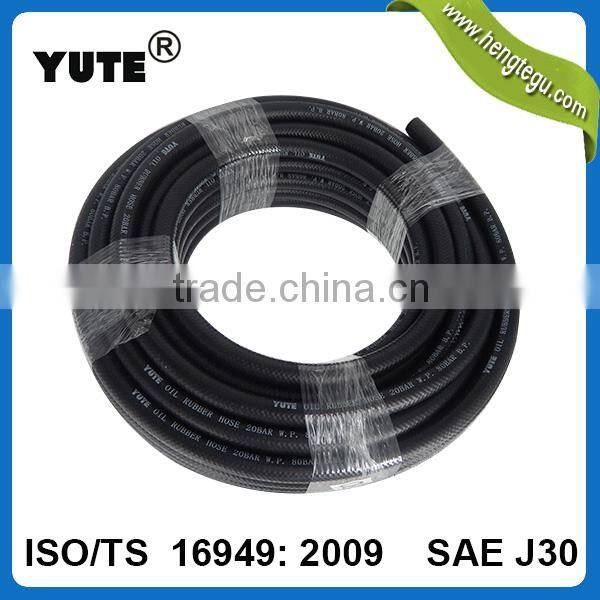

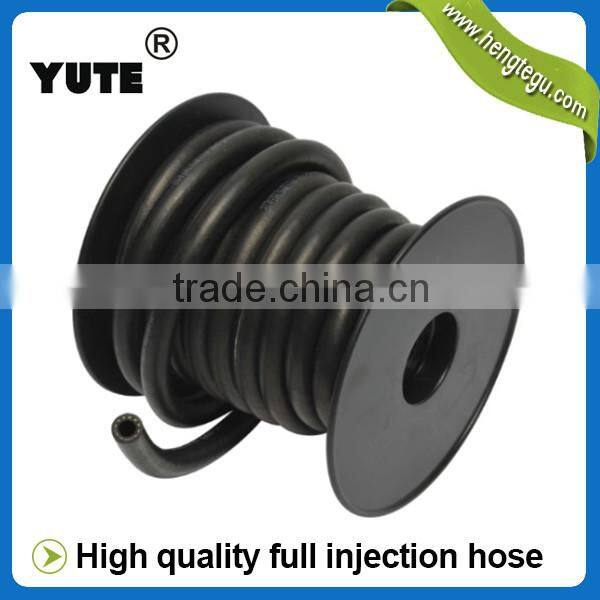

diesel flexible hose cars spare parts din73379 5/16 inch high quality diesel flexible hose





 cars spare parts din73379 5/16 inch high quality diesel flexible hose



Packaging & Shipping

 cars spare parts din73379 5/16 inch high quality diesel flexible hose





Certifications

cars spare parts din73379 5/16 inch high quality diesel flexible hose





Our Services



1.According to your requirements offer custom made service

2.Free samples can be sent for testing

3.Accept OEM service and small trail order

4.Your inquiry related to our products or prices will be replied in 8 hrs

5.Well-trained and experienced staffs to answer all your enquires

  in fluent english

6.Distributorship are offered for your unique design and some our

  current model and specification

7.Protection of your sales area ideas of design and all your

  private information





Company Information

  Yuyao hengtegu auto parts factory is a professional hose designer and manufacturer. Our factory have passed the ISO/TS16949 quality management system certification, the products’ quality meets SAE & DIN standard.
Main products : fuel hose, air brake hose, hydraulic brake hose, power steering hose,rubber air hose ,rubber air hose assembly and refrigerant charging hose,
