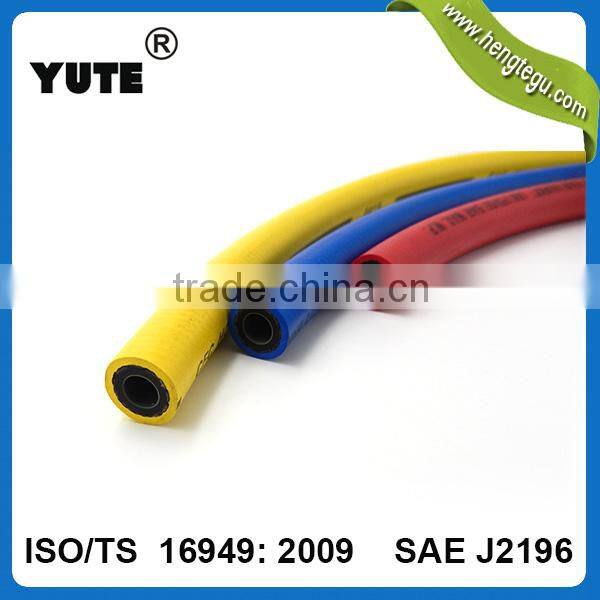

high preessure anti static hose 1/8 inch r134a refrigerant hose
Applications :
Deisgned for charging/recovery of refrigerant (R12 ,R22 ,R134a, R410a, R502, R404, R407, R1234yf) for wide range of automobile/household/precision air conditioning applications .
Construction:
Barrier: Ageing resistant high performance nylon
Tube: Refrigerant resistant synthetic rubber with low permeability
Reinforcement: High tensile braided fibe
Cover: Weather resistant and aging resistant synthetic rubber with red/blue/yellow/black
Temparature Range:-30°C~+110°C
Standards: SAE J2196
Specifications:
ITEM |
I.D |
O.D |
Working pressure |
Burst pressure |
Weight |
Application |
|||
mm |
mm |
PSI |
Bar |
PSI |
Bar |
Ib/ft |
Kg/m |
||
CH-H001 |
5.5 |
11.5 |
500 |
35 |
2500 |
175 |
0.07 |
0.115 |
R12,R22,R502,R404 |
CH-H002 |
5.5 |
11.5 |
600 |
41 |
3000 |
205 |
0.07 |
0.115 |
R134a |
CH-H003 |
5.5 |
11.5 |
800 |
55 |
4000 |
275 |
0.07 |
0.115 |
R410a |
CH-H004 |
5.5 |
11.5 |
800 |
55 |
4000 |
275 |
0.08 |
0.120 |
R1234yf |

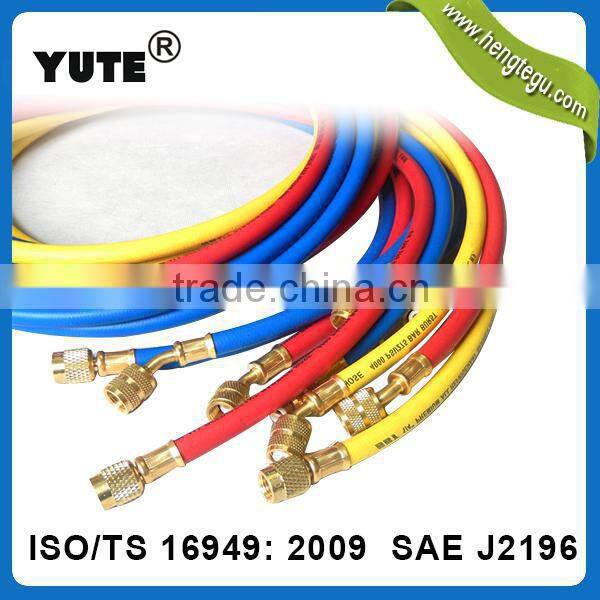

The specification of hose with brass fittings:
ITEM NO |
Application |
Length |
Working pressure |
Burst pressure |
Thread |
CT-606 |
R12,R22,R502,R404 |
36″ |
500PSI |
2500PSI |
1/4″SAE |
CT-616 |
R12,R22,R502,R404 |
60″ |
500PSI |
2500PSI |
1/4″SAE |
CT-636 |
R12,R22,R502,R404 |
72″ |
500PSI |
2500PSI |
1/4″SAE |
CT-806 |
R134a |
36″ |
600PSI |
3000PSI |
1/4″SAE |
CT-816 |
R134a |
60″ |
600PSI |
3000PSI |
1/4″SAE |
CT-836 |
R134a |
72″ |
600PSI |
3000PSI |
1/4″SAE |
CT-906 |
R410a |
36″ |
800PSI |
4000PSI |
1/4″SAE |
CT-916 |
R410a |
60″ |
800PSI |
4000PSI |
1/4″SAE |
CT-936 |
R410a |
72″ |
800PSI |
4000PSI |
1/4″SAE |
CT-506 |
R1234yf |
36″ |
800PSI |
4000PSI |
1/4″SAE |
CT-516 |
R1234yf |
60″ |
800PSI |
4000PSI |
1/4″SAE |
CT536 |
R1234yf |
72″ |
800PSI |
4000PSI |
1/4″SAE |
r134a refrigerant hose
Yuyao City Hengtegu Auto Parts Factory is located in Linshan Town, Yuyao City, Zhejiang Province, from hangzhou international airport 40 kilometers, traffic is very convenient.Integrates development –manufacturer - sales of professional designer &manufacturer of rubber hose , now has more than 60 employees, including technical personnel more than 30% of the total number of employees, annual output of ten million meters of all kinds of rubber hoses.
At present, the products are widely application in Automobile manufacturers - Auto aftermarket - Engineering machinery - Refrigeration - Welding industry, the main products are: fuel hose,brake hose, EPDM air hose, fuel hose,diesel hose, refrigerant charging hose, air conditioning hose and oxygen/ acetylene hose etc.Products are exported to Europe,American and Southeast Asia market, quality and service well received by customers, in 2013 passed the ISO/TS16949:2009 quality management system certification
Q1:Where is the main market in your products? |
A: Europe,South America, North America,Southeast Asia |
Q2:Do you have passed any certificate? |
A: ISO/TS 16949:2009,3C,RoHS |
Q3:How long is the warranty of the r134a refrigerant hose? |
|
A:The warranty is 5 years. |
1.According to your requirements offer custom made service |
2.Free samples can be sent for testing |
3.Accept OEM service and small trail order |
4.Your inquiry related to our products or prices will be replied in 8 hrs |
5.Well-trained and experienced staffs to answer all your enquirers in fluent English |
|
6.Distributorship are offered for your unique design and some our current model and specification |
7.Protection of your sales area ideas of design and all your private information |
