W.p 145 Psi Low Pressure Vulcanized Cotton Braided Fuel Braided Hose Din73379 Type 2b
- Ningbo/Shanghai
- T/T Credit Card
You May Like
-
Free Samples Din 73379 Type 2b Low Pressure Cotton Over Braided Fuel Hose
-
YUTE Brand Braided Flexible ISO/TS 16949 Rubber Oil Line Din 73379 Fuel Hose
-
China Supplier Din73379 Black Braided Fuel Textile Reinforced Hose
-
China Manufacturer Oil Resistant Cotton Braided Rubber Hose
-
3.2mm to 14 mm Rubber Hose Cotton Over Braided Fuel Hose
-
Yute Brand Pro Factory 3/8 Inch Epdm Rubber Hose
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YUTE | |
| Model Number | 3.2MM |
Product Description

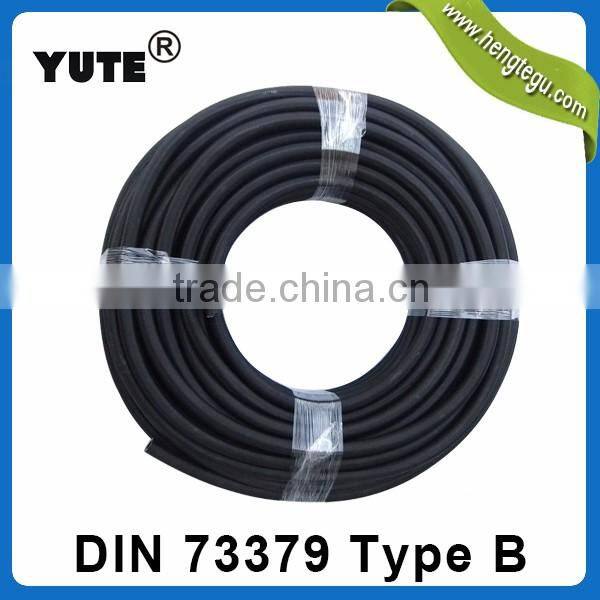

w.p 145 psi low pressure vulcanized cotton braided fuel braided hose din73379 type 2b
Applications :
Used as oil return line transmitting fuel oil, gasoline, diesel, Lubricants and other mineral oil under positive pressure condition.
Construction:
Tube: Oil resistant synthetic rubber with low permeability.
Outer Shield: High tensile braided fibre with low shrink . Black or gray
Temparature Range:-22~+230F
Specifications:
ID | OD | Weight | |||
inch | mm | inch | mm | lb./ft | Kg/m |
1/8 | 3 | 0.275 | 7 | 0.06 | 0.04 |
0.141 | 3.6 | 0.315 | 8 | 0.102 | 0.068 |
0.157 | 4 | 0.315 | 8 | 0.073 | 0.048 |
0.181 | 4.6 | 0.354 | 9 | 0.09 | 0.061 |
3/16 | 5 | 0.354 | 9 | 0.085 | 0.057 |
1/4 | 6 | 0.472 | 12 | 0.164 | 0.11 |
5/16 | 8 | 0.551 | 14 | 0.20 | 0.134 |
0.354 | 9 | 0.59 | 15 | 0.218 | 0.146 |
3/8 | 10 | 0.669 | 17 | 0.286 | 0.192 |
0.472 | 12 | 0.748 | 19 | 0.329 | 0.221 |
Note: Length of the hose can be customized.
Company name: Yuyao City Hengtegu Auto Parts Factory
Adress:Linshan Town ,Yuyao City ,Zhejiang Province,China,315460
Tel: 86-574-62056986
Fax:86-574-62056985
Main products: fuel hose,air brake hose, rubber air hose, refrigerant charging hose,cotton over braided fuel hose.
