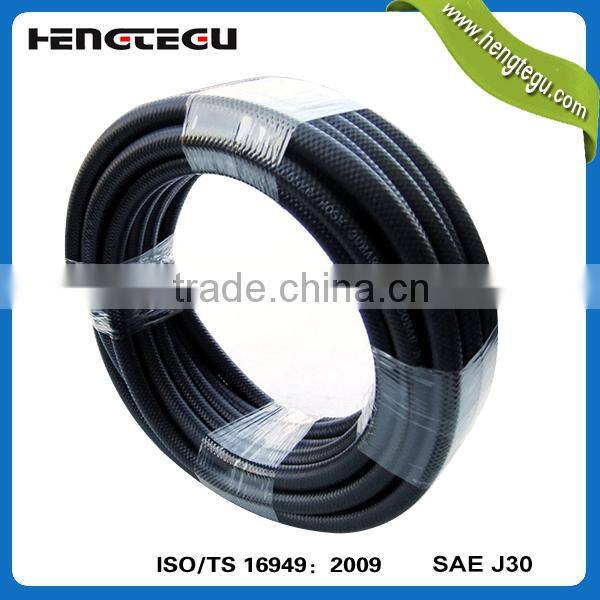

Manufacturer High Quality 3/8 Inch Epdm Rubber Hose With Rohs Certificated
manufacturer high quality 3/8 inch epdm rubber hose with rohs certificated
Application:
Designed for transporting alcohol/weak acid and alkali/hot water/steam/oxidizing agent/refrigerant/animal and vegetable and compressed air. Widely used in automobile, engineering machinery filed.
Construction:
Tube: heat resistant synthetic rubber(EPDM).
Reinforcement: high tensile braided fiber.
Cover: weather resistant /ozone resistant/and aging resistant synthetic rubber.
Color: black /blue/red /orange/green, or according to your requirements.
Working temperature: - 40℃~ +130℃
Sie and performance parameters:
NO | I.D | Refer to O.D | Working pressure | Burst pressure | approximate Weight | |||||
(inch) | (mm) | (inch) | (mm) | MPa | Psi | MPa | Psi | kg/m | lbs/ft | |
1 | 1/8 | 3.2±0.2 | 0.35 | 9±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.078 | 0.12 |
2 | 5/32 | 4±0.2 | 0.4 | 10±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.092 | 0.14 |
3 | 3/16 | 4.8±0.2 | 0.43 | 11±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.108 | 0.16 |
4 | 1/4 | 6.3±0.3 | 0.5 | 12.7±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.134 | 0.2 |
5 | 5/16 | 8.0±0.3 | 0.56 | 14±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.147 | 0.22 |
6 | 3/8 | 9.5±0.3 | 0.63 | 16±0.4 | 2.06 | 300 | 8.27 | 1200 | 0.182 | 0.27 |
7 | 15/32 | 12±0.3 | 0.75 | 19±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.238 | 0.35 |
8 | 1/2 | 12.7±0.4 | 0.78 | 20±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.262 | 0.39 |
9 | 5/8 | 16±0.4 | 0.94 | 24±0.5 | 1.03 | 150 | 4.12 | 600 | 0.351 | 0.52 |
10 | 3/4 | 19±0.4 | 1.13 | 28.8±0.5 | 1.03 | 150 | 4.12 | 600 | 0.515 | 0.77 |
11 | 1 | 25.4±0.5 | 1.38 | 35±0.6 | 1.03 | 150 | 4.12 | 600 | 0.637 | 0.95 |
epdm rubber hose
Rubber air hose
Rubber oil hose

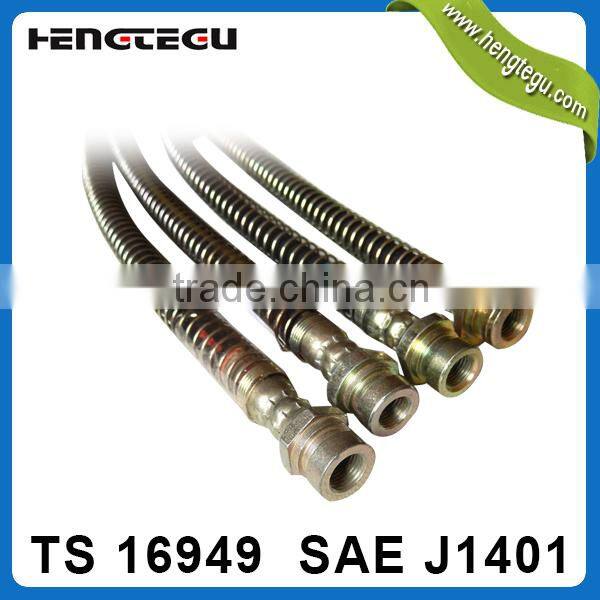

Brake hose

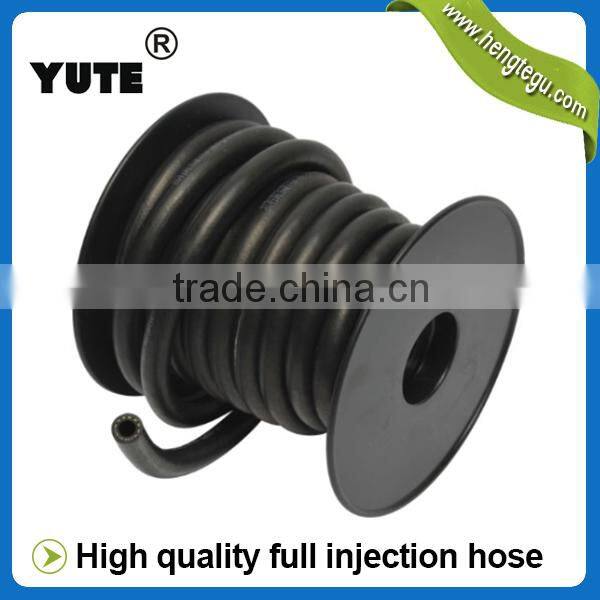

Fuel hose
Yuyao hengtegu auto parts factory is a professional hose designer and manufacturer. It’s located in Ningbo, Zhejiang Province. As a manufacturing enterprise,we are engaged in the research and development of rubber hose’s design, manufacturer and sales.
Main products : EPDM rubber hose,fuel hose, air brake hose, hydraulic brake hose, power steering hose,rubber air hose ,rubber air hose assembly and refrigerant charging hose, are widely used in the auto,engineering machinery, HAVC and other industries.

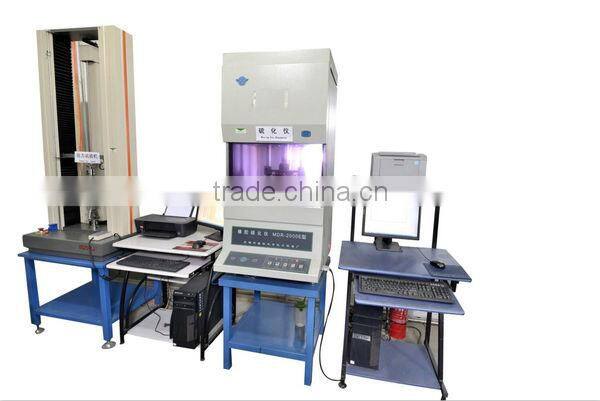

Burst prerssure test
Big family
Factory view

Dear customer ,If you need further information or advice on this product, please contact us.
