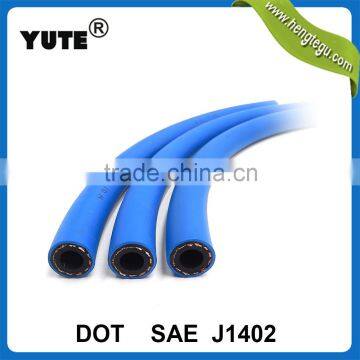

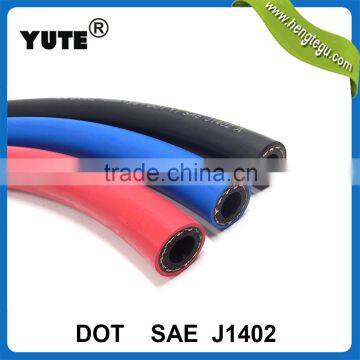

SAE J1402 3/8 Inch Truck Coil Dot Racing Brake Hose
Designed for conveying air in truck and trailer brake systems,Truck and trailer manufacturers ,aftermarket packagers and wholesalers use this hose.It is certified to meet SAE J1402 requirements.Temp range : -40~+270F .
Construction:
Tube: excellent ozone resistant synthetic rubber( EPDM)
Reinforcement: high tensile braid of fibers(PET)
Cover: abrasion-and weather -resistant compounds(EPDM)
Temperature range: -40~ +212 F
Specifications:
ITEM |
I.D |
O.D |
W.P |
B.P |
Weight |
||||
inch |
mm |
mm |
PSI |
Bar |
PSI |
Bar |
Ibs./ft |
Kg/m |
|
-4 |
3/16 |
4.8 |
12 |
225 |
15.5 |
900 |
62 |
0.082 |
0.122 |
-5 |
1/4 |
6.4 |
13.6 |
225 |
15.5 |
900 |
62 |
0.097 |
0.145 |
-6 |
3/8 |
7.9 |
15.1 |
225 |
15.5 |
900 |
62 |
0.110 |
0.166 |
-7 |
13/32 |
10.3 |
18.3 |
225 |
15.5 |
900 |
62 |
0.157 |
0.230 |
-8 |
7/16 |
11.9 |
19.8 |
225 |
15.5 |
900 |
62 |
0.173 |
0.257 |
-10 |
1/2 |
12.7 |
20.5 |
225 |
15.5 |
900 |
62 |
0.162 |
0.250 |
-12 |
5/8 |
15.9 |
26.2 |
225 |
15.5 |
900 |
62 |
0.287 |
0.423 |
dot racing brake hose


Question: What is the warranty of the air brake chamber hose ? |
Answer: 10 years. |
Question: How do you guarantee the quality? |
|
Answer: We have strict quality management system, thorough check products before packing . |
Question: Can you send samples for testing? |
Answer: Yes.We can provide free samples for testing. |
