Home > Products > Air Brake Hose > SAE J1402 1/2 Inch Truck Coil Automotive Air Brake Hose
SAE J1402 1/2 Inch Truck Coil Automotive Air Brake Hose
- Ningbo/Shanghai for automotive air brake hose
- T/T Credit Card
You May Like
-
Yute Truck Using Wholesale Air Brake Chamber Drop Down Hose With Brass Fittings
-
Sae J1402 Yute Epdm Rubber Wholesale Truck Using Red Air Brake Line Hose
-
Dot Approved Yute Brand Black Red Blue Color Truck Using Air Brake Hoses 3/8"
-
High Quality Dot Approved Wholesale Fmvss 106 Brake Hose With Fittings
-
Yute Brand Wholesale Truck Using Type a Epdm Rubber 1/2 " Air Brake Hose
-
Dot Approved Fmvss 106 5/16 Inch Air Brake Hose for Trcuks /buses
Product Details
| Type | Brake Hose | Material | Plastic, EPDM /PET | |
| Certification | ISO9001/TS16949 | Size | Standard Size | |
| Car Make | Truck | OE NO. | OEM Service | |
| Place of Origin | Zhejiang, China | Brand Name | yute | |
| Model Number | air brake hose |
Product Description

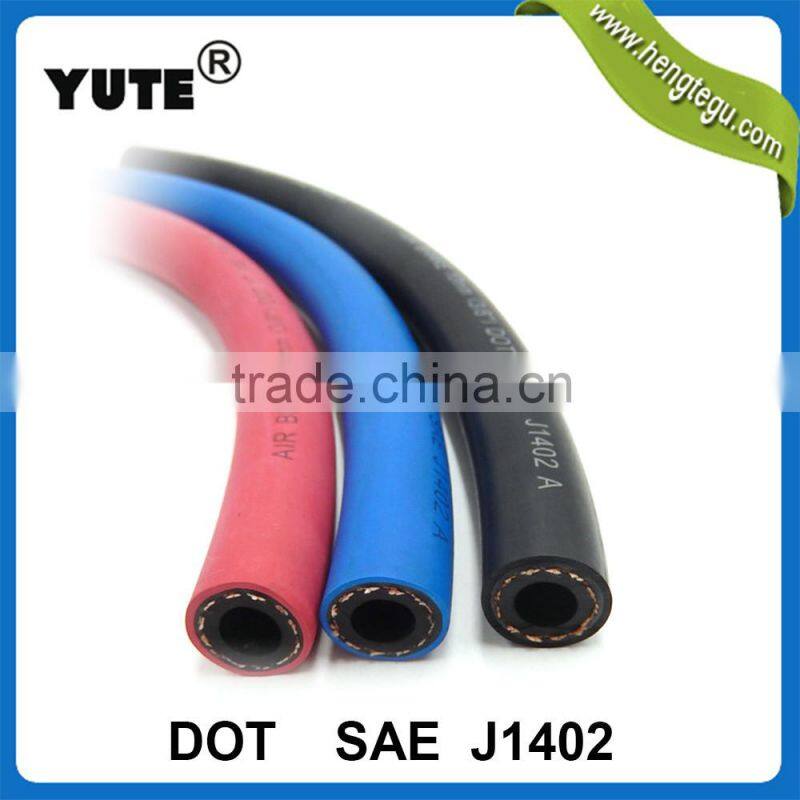

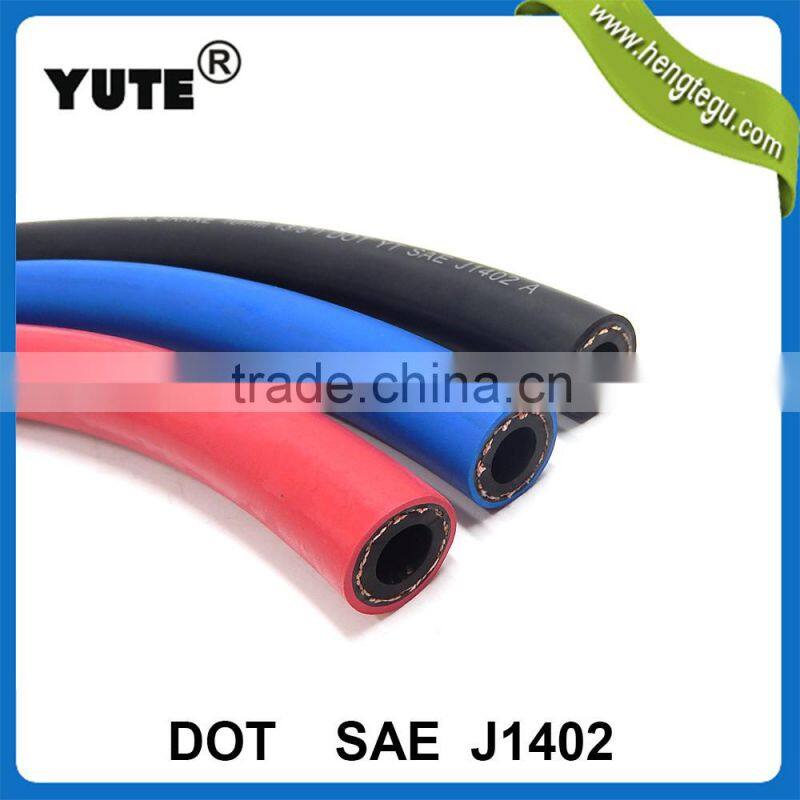

SAE J1402 1/2 inch truck coil automotive air brake hose
Designed for conveying air in truck and trailer brake systems,Truck and trailer manufacturers ,aftermarket packagers and wholesalers use this hose.It is certified to meet SAE J1402 requirements.Temp range : -40~+270F .
Construction:
Tube: excellent ozone resistant synthetic rubber( EPDM)
Reinforcement: high tensile braid of fibers(PET)
Cover: abrasion-and weather -resistant compounds(EPDM)
Temperature range: -40~ +212 F
Specifications:
ITEM | I.D | O.D | W.P | B.P | Weight | ||||
inch | mm | mm | PSI | Bar | PSI | Bar | Ibs./ft | Kg/m | |
-4 | 3/16 | 4.8 | 12 | 225 | 15.5 | 900 | 62 | 0.082 | 0.122 |
-5 | 1/4 | 6.4 | 13.6 | 225 | 15.5 | 900 | 62 | 0.097 | 0.145 |
-6 | 3/8 | 7.9 | 15.1 | 225 | 15.5 | 900 | 62 | 0.110 | 0.166 |
-7 | 13/32 | 10.3 | 18.3 | 225 | 15.5 | 900 | 62 | 0.157 | 0.230 |
-8 | 7/16 | 11.9 | 19.8 | 225 | 15.5 | 900 | 62 | 0.173 | 0.257 |
-10 | 1/2 | 12.7 | 20.5 | 225 | 15.5 | 900 | 62 | 0.162 | 0.250 |
-12 | 5/8 | 15.9 | 26.2 | 225 | 15.5 | 900 | 62 | 0.287 | 0.423 |
automotive air brake hose
Question: What is the warranty of the air brake chamber hose ? |
Answer: 10 years. |
Question: How do you guarantee the quality? |

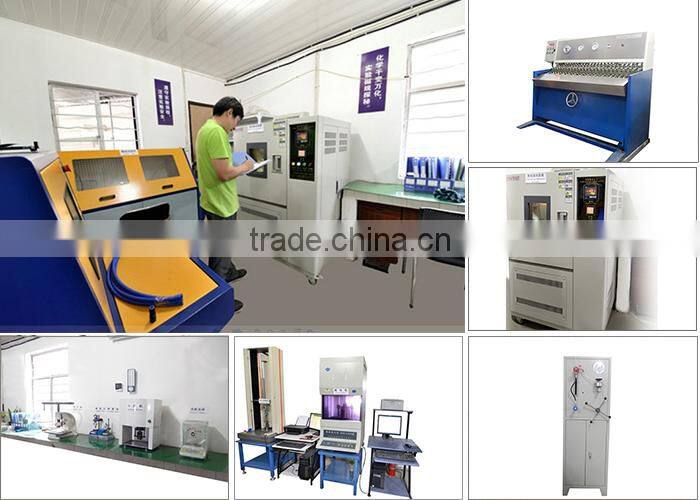

Answer: We have strict quality management system, thorough check products before packing . |
Question: Can you send samples for testing? |
Answer: Yes.We can provide free samples for testing. |
How to contact us?
Send your inquiry details in the below for free samples ,click “Send ” now!
QQ:1529086175 .
shype:alisa.liu20
