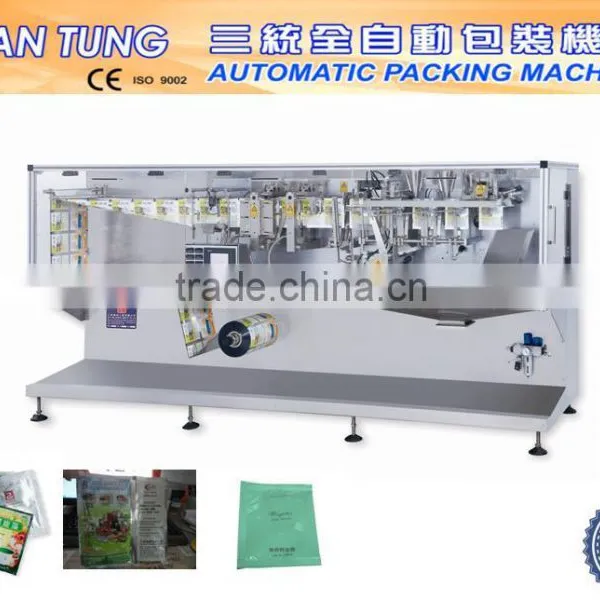

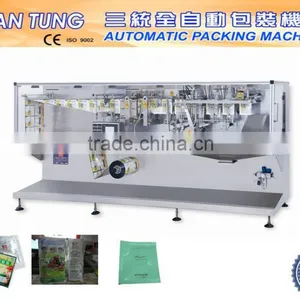

Automatic Horizontal Type Packing Machine

Automatic Horizontal Type Packing Machine photo-1
US$ 75,000 - 90,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Food, Medical
Packaging Type:
Bags, Film, Foil, Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Keelung Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Food, Medical
Packaging Type Bags, Film, Foil, Pouch
Packaging Material Paper, Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Voltage Customized
Power Customized
Place of Origin Taiwan, China
Brand Name San Tnng
Model Number AHM
Certification ISO, CE, ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Automatic Horizontal Type Packing Machine
Automatic packing machine
Packing machine
Horizontal packing machine

Automatic Horizontal Type Packing Machine





This machine is a special high speed packing machine. It operates via full servo technolugies and PLC microcomputer control with stable operation. Also, it is with mobile touchscreen interactive interface, which is easy to operate and with safely doors, which is easy to clean and maintyain.



The machine is suitable for packing foodstuff, pharmaceuticals, pesticide and daily using chemicals, etc. Different filling methods can be used for different products, such as liquid, powder, granules.

Additionally, it can be equipped with photoelectric cell device, printers, tear notch.



Packing type: Three side sealing sachet or Four side sealing sachet.



Applications:

Powder, granules, liquid, sauce, sugar, salt, pepper, coffee, detergent powder or liquid, ketchup, paste... etc.



SPECIFICATIONS :

Model

AHM-1 (Single bags)

AHM-2 (Dual-link bags)

Filling Volume

50~200ml

20~100ml

Packing Speed

40~60 bag/min

80~120 bag/min

Packing Size

W 80~100 mm
L 180~225 mm

W (60+60)x L 70 mm
W (90+90)x L 220 mm

Power Source

220/380V 5KW

220/380V 5KW

 Dimensions
L x W x H (m/m)

3200x1000x1600

3200x1000x1600

Automatic Horizontal Type Packing Machine



Automatic Horizontal Type Packing Machine



Sample packages

Automatic Horizontal Type Packing Machine



Automatic Horizontal Type Packing Machine



LINK OUR QR CODE TO GET MORE OUR MACHINE INFORMATIONS



Automatic Horizontal Type Packing Machine
