Automatic Horizontal Type Form Fill Seal Machine

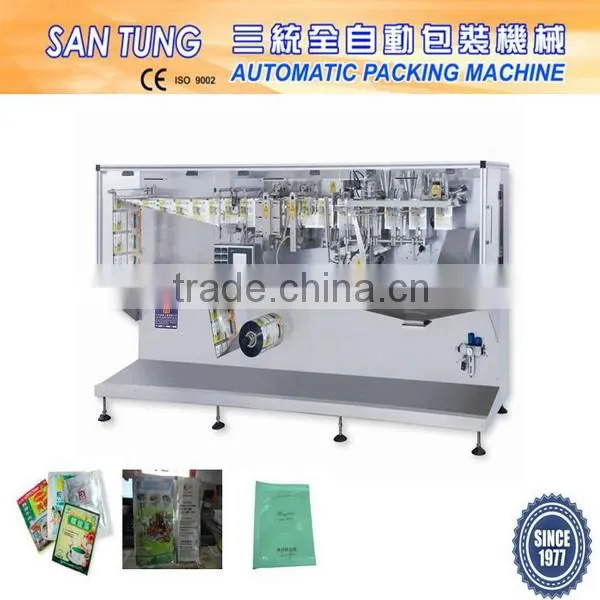

Automatic Horizontal Type Form Fill Seal Machine photo-1
US$ 75,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Medical, Chemical
Packaging Type:
Bags, Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Keelung
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Medical, Chemical
Packaging Type Bags, Pouch
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Power AC220V/AC380V/AC415V
Place of Origin Taiwan, China
Brand Name San Tung
Model Number AHM-2
Certification ISO, CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Automatic Horizontal Type Form Fill Seal Machine
Horizontal packing machine
Form fill seal machine
Horizontal form fill seal

Automatic Horizontal Type Form Fill Seal Machine


This machine is a special high speed packing machine. It operates via full servo technolugies and PLC microcomputer control with stable operation. Also, it is with mobile touchscreen interactive interface, which is easy to operate and with safely doors, which is easy to clean and maintyain.



The machine is suitable for packing foodstuff, pharmaceuticals, pesticide and daily using chemicals, etc. Different filling methods can be used for different products, such as liquid, powder, granules.

Additionally, it can be equipped with photoelectric cell device, printers, tear notch.



Packing type: Three side sealing sachet or Four side sealing sachet.



Applications:

Powder, granules, liquid, sauce, sugar, salt, pepper, coffee, detergent powder or liquid, ketchup, paste... etc.



SPECIFICATIONS :

Model

AHM-1 (Single bags)

AHM-2 (Dual-link bags)

Filling Volume

50~200ml

20~100ml

Packing Speed

40~60 bag/min

80~120 bag/min

Packing Size

W 80~100 mm
L 180~225 mm

W (60+60)x L 70 mm
W (90+90)x L 220 mm

Power Source

220/380V 5KW

220/380V 5KW

 Dimensions
L x W x H (m/m)

3200x1000x1600

3200x1000x1600

Automatic Horizontal Type Form Fill Seal Machine



Automatic Horizontal Type Form Fill Seal Machine



Sample packages

Automatic Horizontal Type Form Fill Seal Machine



Automatic Horizontal Type Form Fill Seal Machine



LINK OUR QR CODE TO GET MORE OUR MACHINE INFORMATIONS



Automatic Horizontal Type Form Fill Seal Machine
