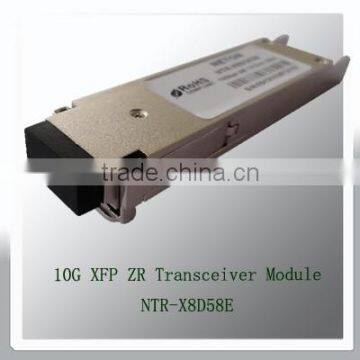

10G XFP ZR 80KM Optical Transceiver
Neton XFP transceiver is a high performance, cost effective modulse for serial optical data communications applications specified for signal rates of 9.95 Gb/s to 11.3 Gb/s. It is fully compliant to XFP MSA Rev 4.5. The modules are designed for single mode fiber and operates at a nominal wavelength of 850/1310/1550 nm. The transmitter section incorporates uncooled directly modulated 1310 nm distributed feedback laser (DFB) or EML colled laser 1550nm. The receiver section uses PIN photodetector for low dark current and excellent responsivity or APD high sensetivity receiver.
1).Order Information:
10G/bps XFP LR,ER,ZR Optical Transceiver
| Package | Part No. | Data Rate Range | Wavelength | Optical Components | Distance Range | Connector | Case Temperature range | DDM Function | Application |
| XFP | NTR-X8D31D | Up to 10.3G | 1310nm | DFB/PIN | 10Km | LC | Com. | D | Ethernet,SONET,10GFC |
| XFP | NTR-X8D32D | Up to 10.3G | 1310nm | DFB/PIN | 20Km | LC | Com. | D | Ethernet,SONET,10GFC |
| XFP | NTR-X8D54E | Up to 10.3G | 1550nm | EML/PIN | 40Km | LC | Com. | D | Ethernet,SONET,10GFC |
| XFP | NTR-X8D57E | Up to 10.3G | 1550nm | EML/PIN | 70Km | LC | Com. | D | Ethernet,SONET,10GFC |
| XFP | NTR-X8D58E | Up to 10.3G | 1550nm | EML/PIN | 80Km | LC | Com. | D | Ethernet,SONET,10GFC |
More requirement.....please free to contact us...
Features:
1.Supports 9.95Gb/s to 11.3Gb/s bit rates
2.IEC 60825-1 Class 1/CDRH Class 1 laser eye safety.
3.Hot-pluggable XFP footprint
4.Maximum link length of 80km
5.DFB or Temperature-stabilized EML Transmitter
6.XFI Loopback Mode
7.Duplex LC connector
8.Low Power dissipation
9.Superior Thermal and EMI integrity performance to support high port densities
10.LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)
11.Built-in digital diagnostic functions, DDMI
12.Temperature range -5°C to 70°C or Industrial Temperature range on request
13.RoHS-6, CE, FDA, FCC, TUV, UL certificates
Application:
1.SONET OC-192 / SDH STM-64
2.ITU-T G.709
3.10GBASE-SR/LR/ER/EW/ZR
4.10GBASE-SR/LR/ER/EW/ZR+ FEC
5.10/40/80 km 10G Fibre Channel
6.10/40/80 km 10G Fibre Channel + FEC
-----------------------------------------------------------------------
Neton has more than 100 employees, among which about 30 are professional technicians, and most of them have experience of QC field of over 10 years.
More information, please feel free to contact or visit us!
