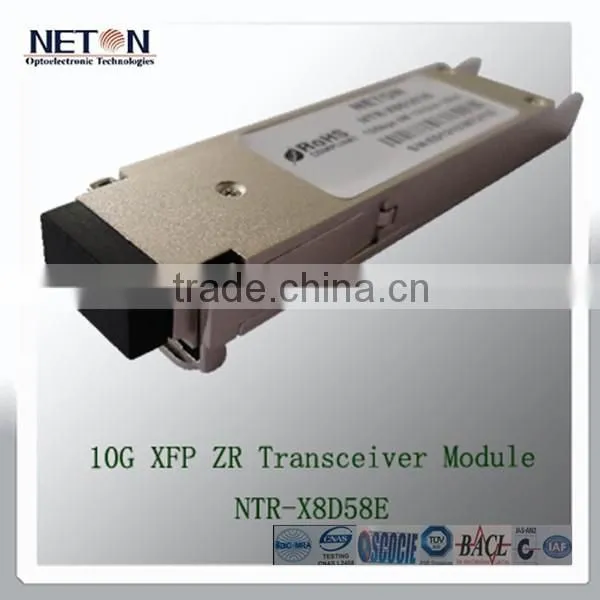

Optical Transceiver ZR of 10G XFP
Neton XFP transceiver is a high performance, cost effective modulse for serial optical data communications applications specified for signal rates of 9.95 Gb/s to 11.3 Gb/s. It is fully compliant to XFP MSA Rev 4.5. The modules are designed for single mode fiber and operates at a nominal wavelength of 850/1310/1550 nm. The transmitter section incorporates uncooled directly modulated 1310 nm distributed feedback laser (DFB) or EML colled laser 1550nm. The receiver section uses PIN photodetector for low dark current and excellent responsivity or APD high sensetivity receiver.
1).Order Information:
| Package | Part No. | Data Rate Range | Wavelength | Optical Components | Distance Range | Connector | Case Temperature range | DDM Function | Application |
| XFP | NTR-X8D58E | Up to 10.3G | 1550nm | EML/PIN | 80Km | LC | Com. | D | Ethernet,SONET,10GFC |
2).Same Serials Products Order Information:
10G/bps XFP LR,ER,ZR Optical Transceiver
| Package | Part No. | Data Rate Range | Wavelength | Optical Components | Distance Range | Connector | Case Temperature range | DDM Function | Application |
| XFP | NTR-X8D31D | Up to 10.3G | 1310nm | DFB/PIN | 10Km | LC | Com. | D | Ethernet,SONET,10GFC |
| XFP | NTR-X8D32D | Up to 10.3G | 1310nm | DFB/PIN | 20Km | LC | Com. | D | Ethernet,SONET,10GFC |
| XFP | NTR-X8D54E | Up to 10.3G | 1550nm | EML/PIN | 40Km | LC | Com. | D | Ethernet,SONET,10GFC |
| XFP | NTR-X8D57E | Up to 10.3G | 1550nm | EML/PIN | 70Km | LC | Com. | D | Ethernet,SONET,10GFC |
| XFP | NTR-X8D58E | Up to 10.3G | 1550nm | EML/PIN | 80Km | LC | Com. | D | Ethernet,SONET,10GFC |
More requirement.....please free to contact us...
Features:
1.Supports 9.95Gb/s to 11.3Gb/s bit rates
2.IEC 60825-1 Class 1/CDRH Class 1 laser eye safety.
3.Hot-pluggable XFP footprint
4.Maximum link length of 80km
5.DFB or Temperature-stabilized EML Transmitter
6.XFI Loopback Mode
7.Duplex LC connector
8.Low Power dissipation
9.Superior Thermal and EMI integrity performance to support high port densities
10.LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)
11.Built-in digital diagnostic functions, DDMI
12.Temperature range -5°C to 70°C or Industrial Temperature range on request
13.RoHS-6, CE, FDA, FCC, TUV, UL certificates
Application:
1.SONET OC-192 / SDH STM-64
2.ITU-T G.709
3.10GBASE-SR/LR/ER/EW/ZR
4.10GBASE-SR/LR/ER/EW/ZR+ FEC
5.10/40/80 km 10G Fibre Channel
6.10/40/80 km 10G Fibre Channel + FEC
-----------------------------------------------------------------------
1.What is the warranty for your 1x9 optical modules?
All our products with strict quality control.1x9 modules have 1 year warranty and 3-5 years for MTBF. Free for maintaining within warranty period. In fact, Our repair rate is almost zero.
2.Do you ship internationally?
Yes.We can ship anywhere you would like.If your order is paid by T/T, and Westem Union we can ship it via our delivery forwarder or on your shipping account number ,to ensure you are getting the best rates and this allows you to handle the export/import taxes.
3.I placed an order,who do i call to get tracking information?
Our colleagues of shipping will send you the tracking information immediately after shipping. You can also get the tracking messages from your sales servicer.
4.How do I know NETON parts are good?
We currently are an approved vendor/a gold supplier for Alibaba. We have a number of testing facilities at our disposal and have on-site counterfeit screening capabilities.Our reputation has been built on providing quality parts and customer service you can count on.
5. What's your best advantage in the optical modules line?
achieve various customized requires is our favourate advantage. Because over 20 excellent technicials act as our strong backers.
6.What's your main products?
Our main products are optical transceiver modules, like 1x9, SFP,XFP.
And we can produce all datarate series of modules from DC~2M, 2M~622M,622M~2.5G to 2.5G~40G,
and all kinds of encapsulations from 1x9, SFP,XFP, SFP+ to PON, GPON,GEPON even copper connector and metal 1x9, and WDM from CWDM to DWDM are acceptable,
and single/double/triple transceiver module,single/double/triple transmitter module, single/double/triple receiver module for your various demands.
