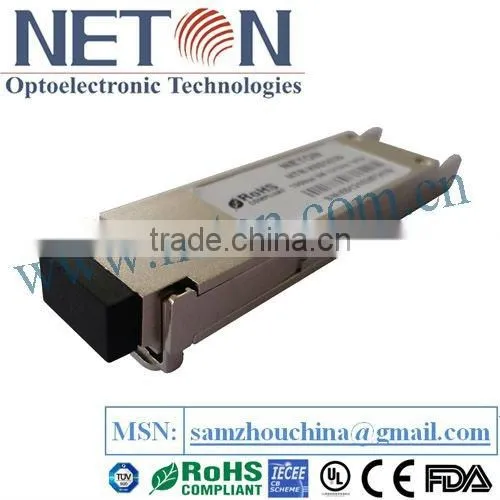

10G XFP 10Km Module 1310nm

Name: 10G XFP 10Km Module 1310nm
Brand: NETON
SKU: 108340967
Availability: InStock

US$ 50 - 2,000 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

NETON

Model Number:

NTR-X8D31D

Chengdu Neton Optoelectronic Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name NETON

Model Number NTR-X8D31D

10G XFP 10Km Module 1310nm

1. XFP 100% compatible with Cisco;

2. XFP Data rate: 10.5Gbps;

3. XFP QC: ISO, CE, CB, UL, ROHS, FDA, etc;

4. XFP Wavelength: 1550nm;

5. XFP Power supply: single 3.3V;

6. XFP Distance: SR, LRM, LR, ER, ZR;

7. XFP Operating temperature: 0C to +70C.

Type	Data rate(Mbps)	Description	Laser Transmitter	Encapsulation	Supply Voltage	Data Level
NTR-X8D31D	10000	SM, LR	1310nm DFB Laser Diode	XFP,LC	+3.3V	CML

Table 3 NTR-X8D31D Transceiver Optical and Electrical Characteristics

(Ambient Operating Temperature Topr= -5 to 70oC, Vcc3 = 3.3V ±5%)

Parameter		Symbol	Min	Typ	Max	Units	Notes
Transmitter
Data rate		B	9.9		10.7	Gb/s
Output Center Wavelength		λc	1260	1310	1355	nm	1
Output Spectral width (-20dB)		λ	-		1	nm
Optical Modulation Amplitude (OMA)		Po,OMA	-7.3		-1	dBm	1
Average Launch Power		Po,Avg	-8.2		0.5	dBm	1
Extinction Ratio		ER	3.5	-	-	dB
Optic Output Eye: Compliant with IEEE 802.3ae 10GBASE
Relative Intensity Noise	RIN			-128		dB/Hz
Transmitter and Dispersion Penalty	TDP			3.2		dB	2
Average Launch Power of OFF Transmitter	POFF			-30		dBm
Receiver
Receiver Sensitivity		P_MIN	-		-14.4	dBm	2
ReceiverSensitivity (OMA)@10.7Gb/s		RSENS	-		-12.6	dBm	2
Maximum Input Power		P_MAX	0.5		-	dBm
LOS De-Assert		LOS_D			-15	dBm	Transition: low to high
LOS Assert		LOS_A	-30			dBm	Transition: high to low
LOS Hysteresis		P_HYS	1.0			dB
Wavelength of Operation		λc	1260		1600	nm
Optical Return Loss		ORL			-12	dB
