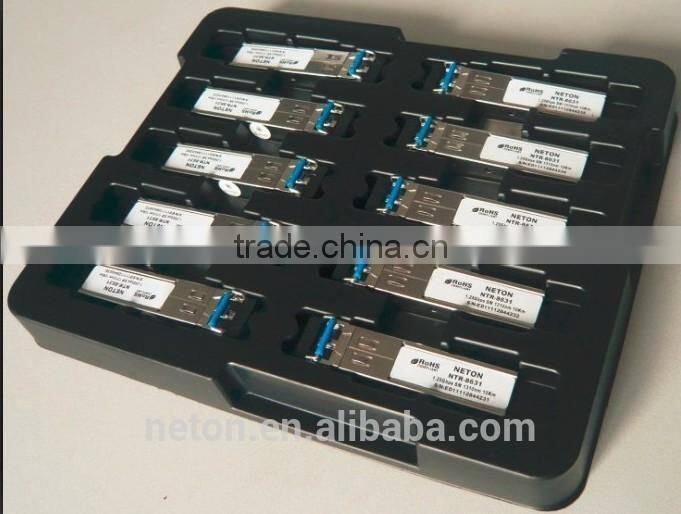

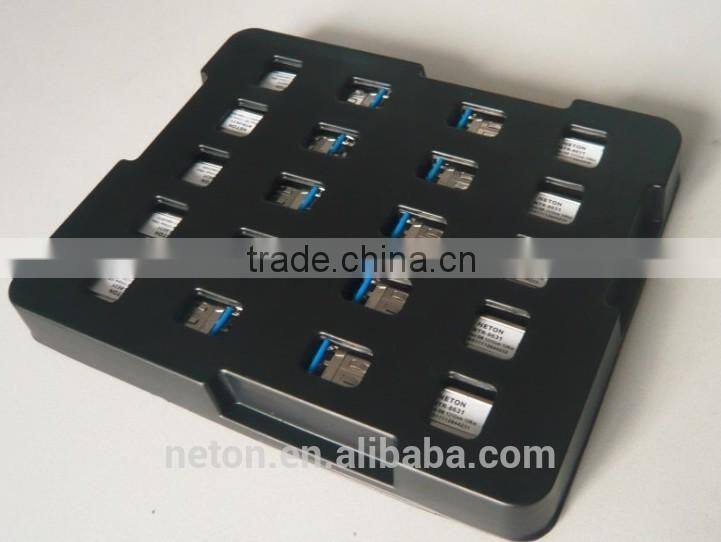

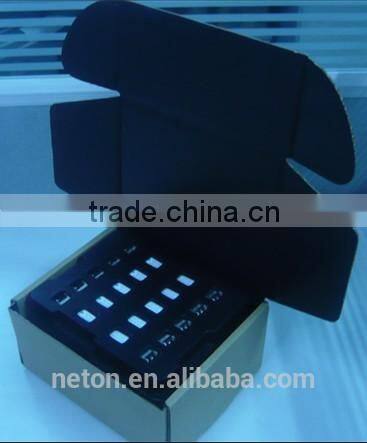

10G SFP transmitter and receiver in generators prices for switches/routers
Product Description
Neton’s NTR-S8D31D series single mode transceiver is small form factor pluggable module for dual fiber serial optical data communications such as IEEE 802 .3ae 10GBASE-LR/LW. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital d iagnostic functions are available via an I 2 C. This module is designed for
single mode fiber and op erates at a nominal wavelength of 1310nm. The transmitter section uses a 1310nm multiple q uantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Product Features
♦Up to 10.7 Gb/s Bi-directional Data Links
♦Complaint with SFP+ MSA
♦Compliant to IEEE 802 .3ae 10GBASE-LR
♦Compliant to IEEE 802 .3ae
♦10GBASE-LW
♦SFF-8472 Digital Diagnostic Function
♦1310 nm DFB LD Tran smitter
♦AC/AC Coupling according to MSA
Distance up to 10 km at SM Fiber
Single +3.3 V Power Supply
RoHS 6/6 Compliant
Operting temperature
Class 1 Laser International Safety Standard
IEC-60825 Compliant
Application
♦10GBASE-LR/LW 10G Ethernet
♦1200-SM-LL-L 10G Fiber Channel
Laser Safety
This single mode transceiver is a Class 1 laser product. It complies with IEC-60825 and FDA 21 CFR 1040.10 and
1040.11. The transceiver must be operated within the specified temperature and voltage limits. The optical ports of the
module shall be terminated with an optical connector or with a dust plug.
