| general | Model | FY18 | ||||
| Power type | LPG&gasoline | |||||
| Rated capacity | kg | 1800 | ||||
| Load center | mm | 500 | ||||
| characteristic&dimension | Lift height | mm | 3000 | |||
| Fork size | L*W*T | mm | 920x120x35 | |||
| Mast tilt angle | F/R | deg | 6°/12° | |||
| Front overhang(wheel center to fork face) | mm | 420 | ||||
| Ground clearance(bottom of mast) | mm | 110 | ||||
| overall dimension | length to face of fork(without fork) | mm | 2295 | |||
| overall width | mm | 1086 | ||||
| mast lowered height | mm | 1995 | ||||
| Mast extended height(with backrest) | mm | 3940 | ||||
| overhead guard height | mm | 2040 | ||||
| Turning radius(outside) | mm | 2055 | ||||
| min. insecting aisle | mm | 2150 | ||||
| performance | speed | Travel(empty load) | km/h | 15 | ||
| Lifting(full load) | mm/s | 440 | ||||
| Max. gradeability | % | 20 | ||||
| chassis | Tire | Front | 6.50-10-10PR | |||
| Rear | 5.00-8-10PR | |||||
| wheelbase | mm | 1400 | ||||
| service weight | kg | 3000 | ||||
| power&transmission | battery | voltage/capacity | v/ah | 12/ 80 | ||
| engine | model | k21 | ||||
| manufacture | nissan | |||||
| rated output/r.p.m. | kw | 31.2/2250 | ||||
| rated torque/r.p.m. | n.m | 143.7/1600 | ||||
| no. of cylinder | 4 | |||||
| bore x stroke | mm | 89x83 | ||||
| displacement | cc | 2065 | ||||
| fuel tank capacity | L | 45 | ||||
| transmission | type | hydraulic | ||||
| stage | FED/RVS | 1/1 | ||||
| operating pressure for attachment | Mpa | 14.5 | ||||

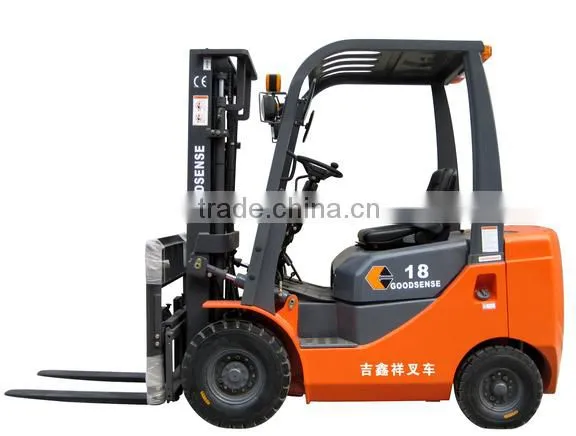

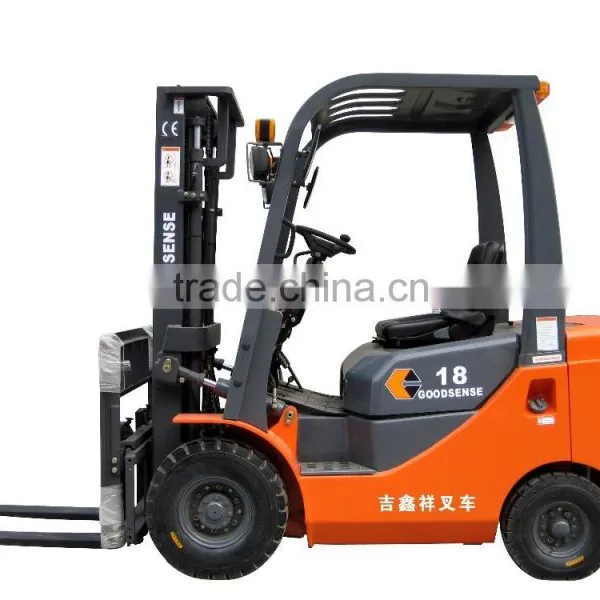

Small ton internal combustion forklift
Character:
- 1. Strong power system
- 2. Wide-view mast
- 3. Unique overhead guard design
- 4. Low non-slip pedal
- 5. Adjustable safety seat
- 6. Solid-state LCD digital meter
- 7. Eco-friendly design
- 8. Adjustable steering wheel
- 9. By a combination of advanced designs and technologies, goodsense forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.
one year warranty

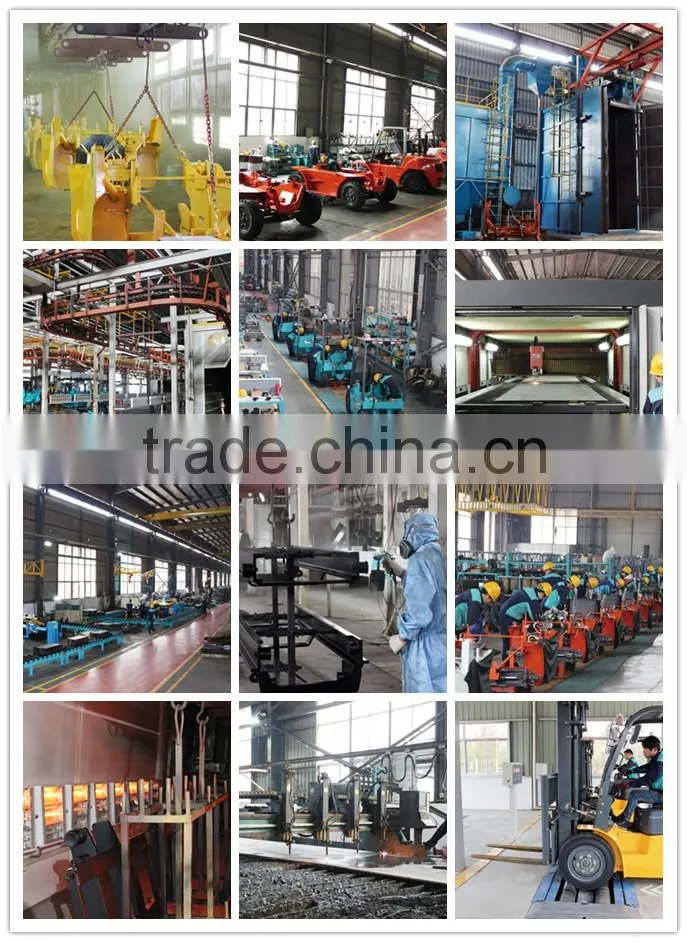

Structure workshop
Precious cutting of various thickness of steels are ensured by applying one set of cutting machine, two sets of high-tech CNC plasma cutting machines and one set on NC flame cutting machine.
Assembly workshop
Several Welding Robots and O2C protection ensure and guarantee the welding requirements of structure components.
Respectively set up small ton, large ton and battery lift truck assemble lines ensure an yearly productivity of 20 units of a full range of forklift trucks.
Painting shop
High-performance ball blasting line ensures that all structural parts are perfectly processed before painting to obtain excellent adhesion of the paint and sheet-metal.
Three stoving vanish painting lines ensure an outstanding painting quality for the plants and the complete truck.
1.What's the Certificate do you have?
Goodsense workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate. Epa approval can be available if needed.
2. Can you customize and design as the clients' requirement?
Goodsense will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 1000 working hours subject to the first.
4. Can you produce the products labeled with the client's brand?
Yes, we do!
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
6.Delivery date:
If clients need normal products, we will deliver the products within 25days. If clients need customerized products, the delivery date depend on the requirements.
