Help CenterNew Design 2X5 SFF 155Mbps 20Km Transceiver Module
Related Products
Specifications
1. 2X5 SFF Module2. 100% Compatible Cisco
3. Competitive Prices
4. Standard:UL,FDA,CE ,CB,ROHS,TU
5.SFP+,SFP,XFP,1X9,SFF
Neton small form-factor (SFF) is a compact optical transceiver used in optical communications for both telecommunication and data communications applications. It is a popular industry format supported by several fiber optic component vendors. SFF transceivers are designed to support SONET/SDH, Gigabit Ethernet, Fibre Channel, and other communications standards. SFF transceivers are available with a variety of different transmitter and receiver types, allowing users to select the appropriate transceiver for each link to provide the required optical reach over the available optical fiber type (e.g. multi-mode fiber or single-mode fiber). Optical SFF modules are commonly available in four different categories: 850 nm (SX), 1310 nm (LX), 1550 nm (ZX), CWDM, WDM/BiDi versions, compliant with STM-1/OC-3, STM-4/OC-12, and STM-16/OC-48, 100BASE & 1000BASE, Fibre Channel 4x/2x/1x, 18-wavelength CWDM Transceiver Compliant with ITU-T G.694.2. RoHS Compliant.
1).Order Information:
2X5 SFF 155Mbps 10Km-120Km Transceiver Module
| Package | Part No. | Data Rate Range | Wavelength | Optical Components | Distance Range | Connector | Case Temperature range | Application |
| 2X5 SFF | NTR-9231 | Up to 155M | 1310nm | FP/PIN | 10Km | LC | Com./Ind. | FE,OC-3 |
| 2X5 SFF | NTR-9232 | Up to 155M | 1310nm | FP/PIN | 20Km | LC | Com./Ind. | FE,OC-3 |
| 2X5 SFF | NTR-9234 | Up to 155M | 1310nm | FP/PIN | 40Km | LC | Com./Ind. | FE,OC-3 |
| 2X5 SFF | NTR-9256 | Up to 155M | 1550nm | DFB/PIN | 60Km | LC | Com./Ind. | FE,OC-3 |
| 2X5 SFF | NTR-9258 | Up to 155M | 1550nm | DFB/PIN | 80Km | LC | Com./Ind. | FE,OC-3 |
| 2X5 SFF | NTR-92510 | Up to 155M | 1550nm | DFB/PIN | 100Km | LC | Com./Ind. | FE,OC-3 |
| 2X5 SFF | NTR-9250 | Up to 155M | 1550nm | DFB/PIN | 120Km | LC | Com./Ind. | FE,OC-3 |
-----------------------------------------------------------------------
Feature:
1. 2X5 SFF 155Mbps 10Km-120Km Transceiver Module
2. 1310nm or 1550nm wavelength Laser Transmitter
3. Up to 120 Km on 9/125μm SMF
4. Single 3.3V power supply
5. Standard 2X5 pin footprint (MSA Compliant)
6. Extended Operating Temperature Range (-40°C to +85°C)
7. Duplex LC connector
8. CML Signal Input / Output
9. TTL Signal Detect
10. Low power dissipation
11. Excellent EMI and ESD protection
12. Compliant with Small Form Factor (SFF) Transceivers Multi-Sourcing Agreement (MSA)
Application:
1. ATM
2. SONET/SDH
3. Fast Ethernet
4. Fiber channel
5. Other optic link

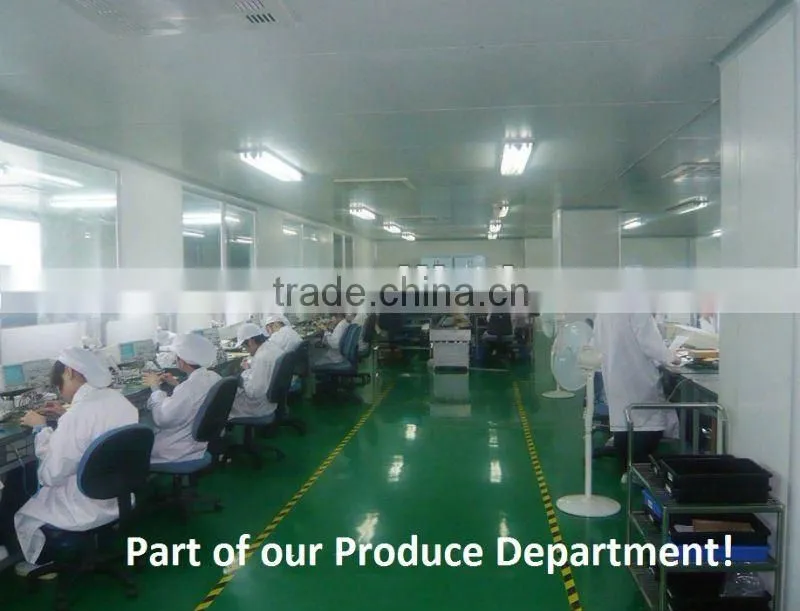

Neton has more than 100 employees, among which about 30 are professional technicians, and MOST of them have experience of QC field of over 10 years.
More information, please feel free to contact or visit us!
