10/100Mb/s fiber to rj45 60km dual sc fiber ethernet optilink media converter
- 500000 Piece / Pieces per Month
- Chengdu China
- T/T L/C D/P D/A Credit Card PayPal
-
ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
-
ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
-
ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
-
ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
-
ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
-
ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
| Place of Origin: | Sichuan, China | Brand Name: | Neton | Model Number: | NMC-3303 |
Product Description

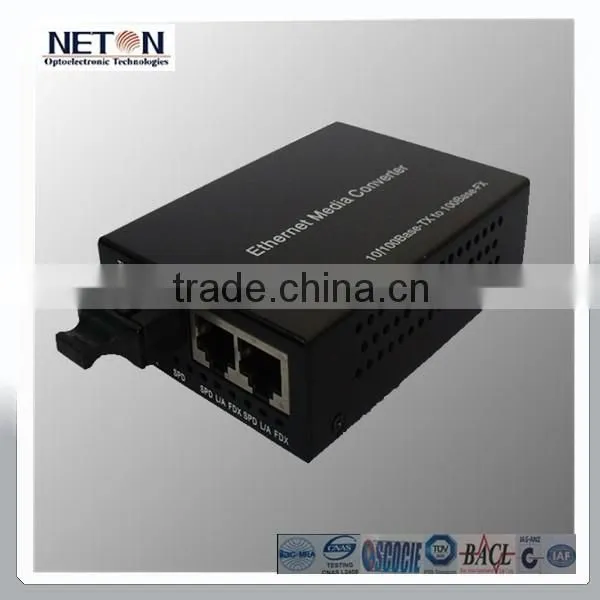

10/100Mb/s fiber to rj45 60km dual sc fiber ethernet optilink media converter
Type: media converter
data rate: ethernet optilink media converter
connector: sc fiber to rj45 ethernet optilink media converter
Product Discription
• complies with IEEE802.3, IEEE802.3u, and IEEE802.3x Standards.
• data rate 10/100 Base-Tx and 10/100 Base-Fx fast Ethernet.
• distance: up to 120Km maximum by Single-mode fiber-optical cable.
• connector: One SC for transmitting-Tx and another SC for receiving-Rx
two RJ-45
one external power supply receptacle.
• Full Duplex or Half Duplex operation.
Order Information
Type | Data rate(Mbps) | Description | Laser Transmitter | Encapsulation | Supply Voltage |
NMC-3303 | 10/100 | SM 60Km | 1310nm FP Laser Diode | Dual SC/ST & one RJ45 | AC 86~260V |
The same serial products order information
Type | Data rate(Mbps) | Description | Laser Transmitter | Encapsulation | Supply Voltage |
NMC-3301 | 10/100 | SM 20Km | 1310nm FP Laser Diode | Dual SC/ST & one RJ45 | AC 86~260V |
NMC-3302 | 10/100 | SM 40Km | 1310nm FP Laser Diode | Dual SC/ST & one RJ45 | AC 86~260V |
NMC-3303 | 10/100 | SM 60Km | 1310nm FP Laser Diode | Dual SC/ST & one RJ45 | AC 86~260V |
NMC-3304 | 10/100 | SM 100Km | 1550nm DFB Laser Diode | Dual SC/ST & one RJ45 | AC 86~260V |
NMC-3305 | 10/100 | MM 2Km | 850nm VCSEL | Dual SC/ST & one RJ45 | AC 86~260V |
Product Features
• Plug-and-Play installation
• Auto-negotiation for 10/100M TP port speed
• High quality and excellent reliability
• Full-duplex 100Mbps Ethernet operation up to 120Km
• Two RJ45 ports for installation easily
• 9 diagnostic and monitoring LEDs for the status of power, FX link/ACT, TX link/ACT
• Half-duplex and full-duplex identify automatically
• Stand-alone with external power adapter
Specifications
Parameter | Min. | Typ. | Max. | Units |
Standard | IEEE802.3 ,IEEE802.3u ,IEEE802.3x | |||
Data Rate |
|
| 100 | Mbps |
Operating Wavelength | 1280 1480 | 1310 1550 | 1335 1580 | nm |
Fiber Interface | SC/PC Fiber Connector, 9/125um Single Mode Fiber SC/PC or ST/PC Fiber Connector, 50/125 or 62.5/125 Multi-Mode | |||
RJ45 Port | UTP-100-ohm Cat.5 cable | |||
Max Segment Length (UTP) | 0 |
| 120 | m |
Max Segment Length (Fiber) |
|
|
|
|
NMC-3301 (1310nm) |
| 20 (SM Fiber) |
|
|
NMC-3302 (1310nm) |
| 40 (SM Fiber) |
|
|
NMC-3303 (1310nm) |
| 60 (SM Fiber) |
| Km |
NMC-3304 (1550nm) |
| 100 (SM Fiber) |
|
|
NMC-3305(1310nm/850nm) |
| 2 (MM Fiber) |
|
|
External Power Supply | AC 86~260V 50~60Hz ; | |||
AC-DC Power Adaptor | +5V DC, 1A | |||
Operating Temperature | 0 |
| 70(Business Level) | ℃ |
Storage Temperature | -40 |
| 85 | ℃ |
Humidity | 5%~90% (Non-condensing) | |||
EMI and Safety | CE,FCC Class A | |||
Dimensions | 95 mm (L)*71 mm (W) *26 mm (H) | |||
1x9 Optic Transceiver Module
Product Series---SFP Transceiver Module
1.What is the warranty for your optical transceivers?
All our products with strict quality control. Optical transceivers have 1 year warranty and 3-5 years for MTBF. Free for maintaining within warranty period. In fact, Our repair rate is almost zero.
2.Are your optical transceivers compatible with Cisco equipment?
Yes.Our optical transceivers can be compatible with Cisco devices.We must 100% test the compatible abilities before leaving our plant as your requires, compatible brand including Cisco,Huawei,Hp,WTD,H3C,JUNIPER,ALCATEL LUSENT,FIBERHOME and son on.
3.I placed an order,who do i call to get tracking information?
Our colleagues of shipping will send you the tracking information immediately after shipping. You can also get the tracking messages from your sales servicer.
4.How do I know NETON parts are good?
We currently are an approved vendor/a gold supplier for Alibaba. We have a number of testing facilities at our disposal and have on-site counterfeit screening capabilities.Our reputation has been built on providing quality parts and customer service you can count on.
5. What's your best advantage in the optical modules line?
achieve various customized requires is our favourate advantage. Because over 20 excellent technicials act as our strong backers.
6.What's your main products?
Our main products are optical transceiver modules, like 1x9, SFP,XFP.
And we can produce all datarate series of modules from DC~2M, 2M~622M,622M~2.5G to 2.5G~40G,
and all kinds of encapsulations from 1x9, SFP,XFP, SFP+ to PON, GPON,GEPON even copper connector and metal 1x9, and WDM from CWDM to DWDM are acceptable,
and single/double/triple transceiver module,single/double/triple transmitter module, single/double/triple receiver module for your various demands.
