Product Details
| Place of Origin: | Sichuan, China | Brand Name: | Neton | Model Number: | NMC-3305 |
Product Description

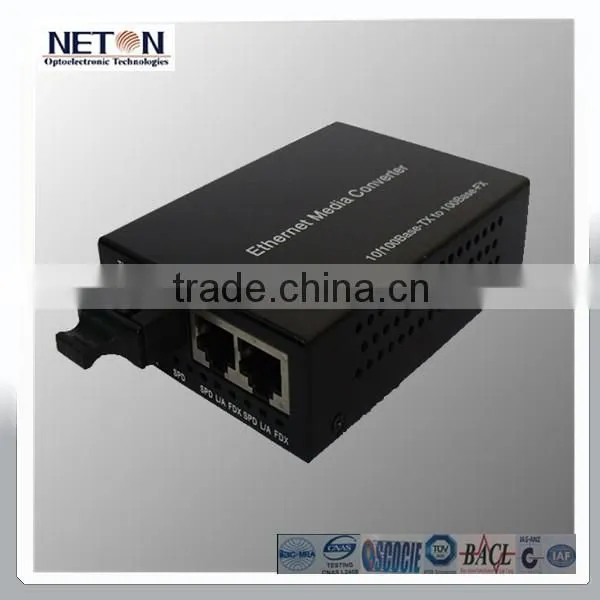

ethernet MMF 10/100Mb/s 2km 850nm VCSEL dual sc fiber optic to rj45 media converter
Type: media converter
data rate: ethernet media converter
connector: fiber optic to rj45 media converter
Product Discription
• complies with IEEE802.3, IEEE802.3u, and IEEE802.3x Standards.
• data rate 10/100 Base-Tx and 10/100 Base-Fx fast Ethernet.
• distance: up to 120Km maximum by Single-mode fiber-optical cable.
up to 2km maximum by Multi-mode fiber cable
• connector: One SC for transmitting-Tx and another SC for receiving-Rx
two RJ-45
one external power supply receptacle.
• Full Duplex or Half Duplex operation.
Order Information
Type | Data rate(Mbps) | Description | Laser Transmitter | Encapsulation | Supply Voltage |
NMC-3305 | 10/100 | MM 2Km | 850nm VCSDL Laser Diode | Dual SC/ST & one RJ45 | AC 86~260V |
The same serial products order information
Type | Data rate(Mbps) | Description | Laser Transmitter | Encapsulation | Supply Voltage |
NMC-3301 | 10/100 | SM 20Km | 1310nm FP Laser Diode | Dual SC/ST & one RJ45 | AC 86~260V |
NMC-3302 | 10/100 | SM 40Km | 1310nm FP Laser Diode | Dual SC/ST & one RJ45 | AC 86~260V |
NMC-3303 | 10/100 | SM 60Km | 1310nm FP Laser Diode | Dual SC/ST & one RJ45 | AC 86~260V |
NMC-3304 | 10/100 | SM 100Km | 1550nm DFB Laser Diode | Dual SC/ST & one RJ45 | AC 86~260V |
NMC-3305 | 10/100 | MM 2Km | 850nm VCSEL | Dual SC/ST & one RJ45 | AC 86~260V |
Product Features
• Plug-and-Play installation
• Auto-negotiation for 10/100M TP port speed
• High quality and excellent reliability
• Full-duplex 100Mbps Ethernet operation up to 120Km in SMF and up to 2km in MMF
• Two RJ45 ports for installation easily
• 9 diagnostic and monitoring LEDs for the status of power, FX link/ACT, TX link/ACT
• Half-duplex and full-duplex identify automatically
• Stand-alone with external power adapter
Specifications
Parameter | Min. | Typ. | Max. | Units |
Standard | IEEE802.3 ,IEEE802.3u ,IEEE802.3x | |||
Data Rate |
|
| 100 | Mbps |
Operating Wavelength | 1280 1480 | 1310 1550 | 1335 1580 | nm |
Fiber Interface | SC/PC Fiber Connector, 9/125um Single Mode Fiber SC/PC or ST/PC Fiber Connector, 50/125 or 62.5/125 Multi-Mode | |||
RJ45 Port | UTP-100-ohm Cat.5 cable | |||
Max Segment Length (UTP) | 0 |
| 120 | m |
Max Segment Length (Fiber) |
|
|
|
|
NMC-3301 (1310nm) |
| 20 (SM Fiber) |
|
|
NMC-3302 (1310nm) |
| 40 (SM Fiber) |
|
|
NMC-3303 (1310nm) |
| 60 (SM Fiber) |
| Km |
NMC-3304 (1550nm) |
| 100 (SM Fiber) |
|
|
NMC-3305(1310nm/850nm) |
| 2 (MM Fiber) |
|
|
External Power Supply | AC 86~260V 50~60Hz ; | |||
AC-DC Power Adaptor | +5V DC, 1A | |||
Operating Temperature | 0 |
| 70(Business Level) | ℃ |
Storage Temperature | -40 |
| 85 | ℃ |
Humidity | 5%~90% (Non-condensing) | |||
EMI and Safety | CE,FCC Class A | |||
Dimensions | 95 mm (L)*71 mm (W) *26 mm (H) | |||
