FF4P-3 space flight PTFE insulated shielded wire
- 500000 Kilometer / Kilometers per Month
- Guangzhou
- T/T
- RCN8687 GORE Advantage products RCN8687 8989 9053
- TE 10612-24-9 Cheminax Spot inventory can be shipped at any time
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
- XTW CXWT 300V UL62 PVC FIexible Cord
- Enameled Copper wire
Product Details
Place of Origin: | Hunan, China | Brand Name: | Shen Zhou Special Cable | Model Number: | FF4P-3 shielded wire |
Type: | Insulated | Application: | Overhead | Conductor Material: | Other, nickel plated copper |
Conductor Type: | Stranded | Insulation Material: | Other, PTEF |
Product Description

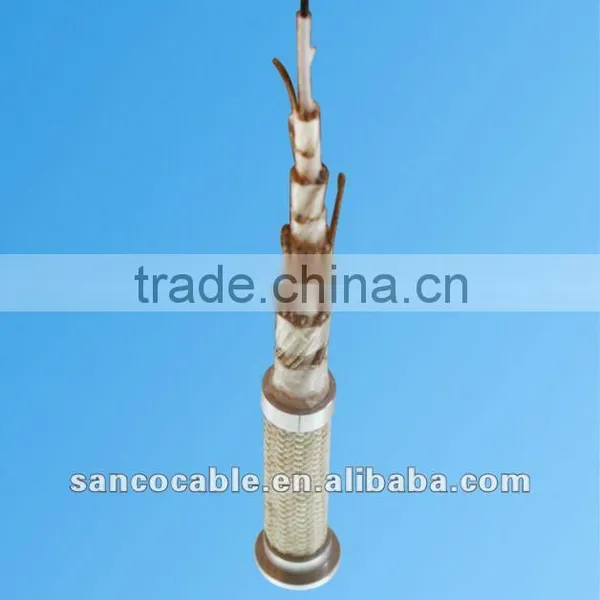

FF4P-3 space flight PTFE insulated shielded wire
Appilication:Mainly design for the connection of internal electric lines of all kinds of aircraft, airship, armored vehicles, under a high temperature condition.
Features:
1.Heat resistance, cold resistance ,
2.acid and alkali resistance,
3.insulation can be easily stripped , conductor can be easily welded.
Specifications
Nominal Cross-section | Core | outer diameter | |||
FF4 Type | FF4P Type | ||||
|
| 250v | 600v | 250v | 600v |
0.012 | 7/0.05 | 0.55±0.07 | 0.82±0.09 | 0.83±0.09 | 1.03±0.12 |
0.035 | 7/0.08 | 0.65±0.07 | 0.82±0.10 | 0.90±0.09 | 1.10±0.12 |
0.06 | 7/0.01 | 0.70±0.07 | 0.9±0.10 | 0.98±0.09 | 1.18±0.12 |
0.08 | 7/0.12 | 0.76±0.07 | 0.96±0.10 | 1.04±0.09 | 1.24±0.12 |
0.12 | 7/0.16 | 0.88±0.07 | 1.08±0.10 | 1.28±0.10 | 1.48±0.13 |
0.20 | 19/0.16 | 1.00±0.07 | 1.20±0.10 | 1.40±0.10 | 1.6±0.13 |
0.3 | 9/0.16 | 1.2±0.07 | 1.4±0.10 | 1.55±0.10 | 1.75±0.13 |
0.50 | 19/0.2 | 1.5±0.10 | 1.7±0.12 | 1.9±0.12 | 2.1±0.15 |
0.75 | 19/0.23 | 1.65±0.10 | 1.85±0.12 | 2.05±0.12 | 2.25±0.15 |
1.00 | 19/0.26 |
| 2.0±0.12 |
| 2.4±0.15 |
1.20 | 19/0.28 |
| 2.1±0.12 |
| 2.7±0.15 |
1.50 | 19/0.32 |
| 2.4±0.12 |
| 3.0±0.20 |
2.0 | 19/0.37 |
| 2.65±0.12 |
| 3.25±0.20 |
2.5 | 37/0.30 |
| 3.1±0.12 |
| 3.7±0.20 |
3 | 37/0.32 |
| 3.24±0.12 |
| 3.84±0.20 |
4 | 37/0.37 |
| 3.59±0.12 |
| 4.19±0.12 |
