Product Description

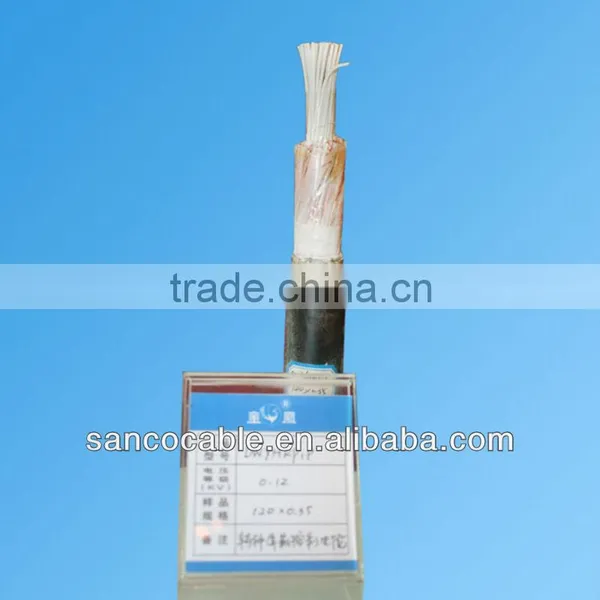

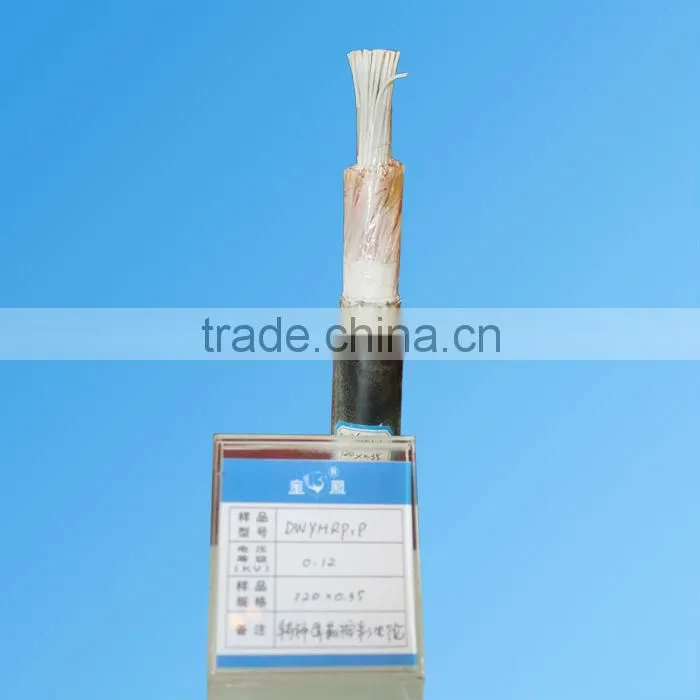

Product Name: Low smoke zero halogen screend cable
Features:
1.Nominal voltage: AC(1000Hz)60V or DC 120V or below
2.Operating temperature:-20~+80 degree
3.High quality and favorable price
4.low smoke, no halogen, fire resistance, anti-interference, aging-resistance, soft
Technical information:
20°C insulation resistance: equal or greater than 50MΩ•km
Puncture test: core n core AC1500V/5min no breakdown; core n shield AC 800V/2min no breakdown
Application:
Mainly used for the connection of electric equipment control circuit of some relative safe place such as marine, aerospace, sea-base, chemical industry, nuclear industry, etc.
CoreNo.×Cross-section |
Maximum Outer diameter (mm) |
|
DWYHRP |
DWYHRP1P |
|
5×0.35 |
9.8 |
13.2 |
12×0.35 |
11.7 |
14.0 |
19×0.35 |
12.5 |
17.0 |
24×0.35 |
15.0 |
17.6 |
32×0.35 |
16.0 |
19.8 |
41×0.35 |
18.0 |
25.0 |
55×0.35 |
19.5 |
22.2 |
65×0.35 |
19.0 |
23.0 |
72×0.35 |
22.5 |
27.1 |
81×0.35 |
23.5 |
27.3 |
100×0.35 |
-- |
25.0 |
120×0.35 |
26.8 |
34.0 |
80×0.35+20×0.5 |
-- |
28.0 |
90×0.35+10×0.5 |
-- |
28.0 |
100×0.35+20×0.5 |
-- |
28.0 |
7×0.5 |
10.0 |
11.7 |
100×0.5 |
25 |
-- |
Company Profile:
Xiangtan Shenzhou Special Cable Co., Ltd is started in 2003 and located in Xiangtan,Hunan.China with more than 1180 employees. It covers an area of 40000 square meters.The predecessor of our company is Xiangtan Cable Factory, which established in 1951 ,once the biggest range of production in south of china.After purchased in 2003,at present,we have had first-class have domestic and imported equipment 1500 sets for production and detection ,providing adequate guarantee for manufacturing high quality cables. We have obtained CE,ABS,BV and DNV.
All of our products comply with international quality standards and can meet the needs of both domestic and overseas markets. Meanwhile, our management team strives to focus on "technology and development", which is regarded as the core of excellent production.
We have strong technical strength. We produce electric wires and cables, such as power cables, control cables, shielding cables, coaxial cables, fire-resistance cables, etc. We are also able to design special cables according to customers' requirements
Certificates:
