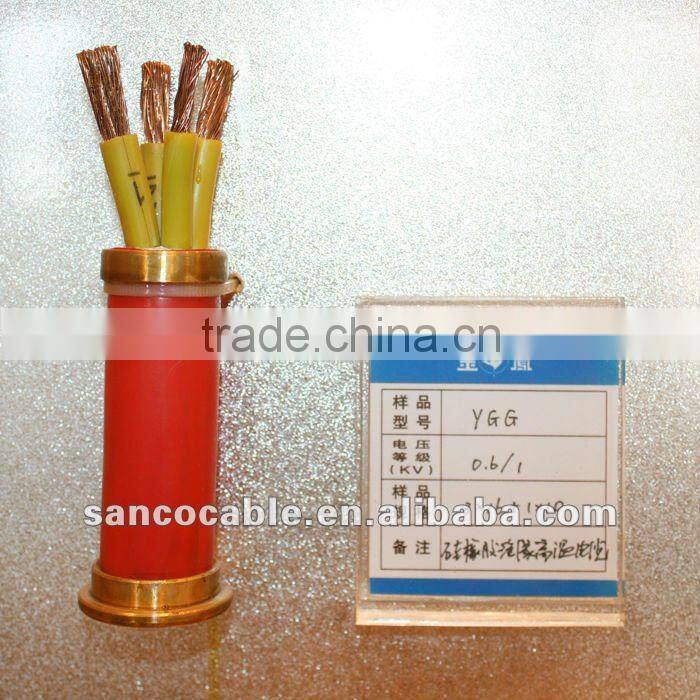

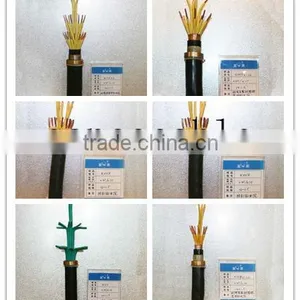

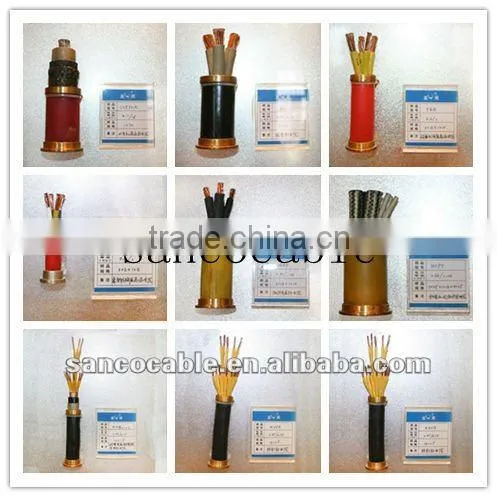

Copper Conductor Motor Winding Connection Flexible Cable

Name: Copper Conductor Motor Winding Connection Flexible Cable
Brand: Shen Zhou Special Cable
SKU: 108334875
Availability: InStock

Negotiable MOQ: 1 Kilometer (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

Shen Zhou Special Cable

Model Number:

Xiangtan Shenzhou Special Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name Shen Zhou Special Cable

Model Number JG

Insulation Material Rubber

Application Other, Motor

Conductor Material Copper

180degree felxible cable and wire

Conductor material: Copper

Insulation material:Rubber

Usage:Used for motor winding connection

Voltage Range: 500V,1000V,3000V,6000V

Specification:

Type	JG
Nominal Cross Section Area (mm²)	Constructure Of Conductor Cores/diameter (mm)	Average Upper limit of outer diameter(mm)		Nominal Cross Section Area (mm²)	Constructure Of Conductor Cores/diameter (mm)	Average Upper limit of outer diameter(mm)
Nominal Cross Section Area (mm²)	Constructure Of Conductor Cores/diameter (mm)	500v	1000v	Nominal Cross Section Area (mm²)	Constructure Of Conductor Cores/diameter (mm)	500v
0.75	24/0.20	3.7 3.9 4.2 5.3 6.2 7.0 8.7	4.1 4.3 4.6 5.7 6.6 7.4 9.2			10.0 12.1 14.1 16.5 18.8 21.5	10.5 12.6 14.6 17.0 19.3 21.9
1.0	32/0.20				126/0.40
1.5	30/0.25				196/0.40
2.5	49/0.25				276/0.40
4	56/0.30				396/0.40
6	84/0.30				360/0.50
10	84/0.40				475/0.50
