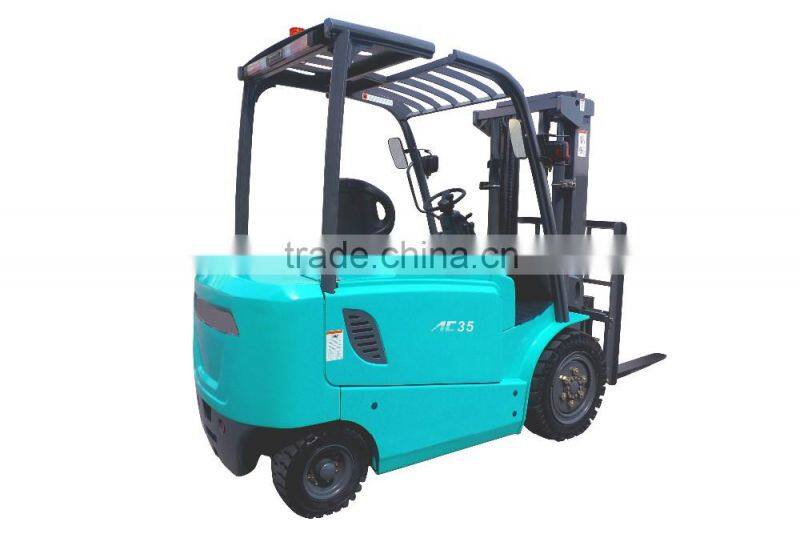

Help CenterElectric Motor Auto Lift Industrial Equipment 3.5ton Powered Truck Lift
Related Products
-
China New Forklift Promotion Battery Lifting Eauipment ac Motor 2.5 Ton Goodsense Electric ForkliftUS$ 12,000 - 25,500MOQ: 1 Set -
Home Lift Equipment New Factory Price Made in China Goodsense Electric 2 Ton Mini Forklift for SaleUS$ 12,000 - 25,500MOQ: 1 Set
-
12 Ton Solid Tire Hydraulic Tranmission Lift Forklift Truck With Fork PositionerUS$ 138750.00 - 138750.00MOQ: 1 Piece
-
High Quality New Price of 1.5t Electric Forklift TruckUS$ 12,000 - 25,500MOQ: 1 Set
-
Warehouse Equipment Goodsense Electric 3.5 Ton Forklift Truck for SaleUS$ 12,000 - 25,500MOQ: 1 Set
| Model | FB35 | |
| Capacity | kg | 3500 |
| Load center | mm | 500 |
| Lift height | mm | 3000 |
| Fork size(LxWxH) | mm | 1070x125x45 |
| Mast tilt angle(F/R) | Deg | 6°/12° |
| Length to face of fork | mm | 2560 |
| Overall width | mm | 1230 |
| Mast lowered height | mm | 2120 |
| Mast extended height | mm | 4160 |
| Overhead guard height | mm | 2250 |
| Turning radius | mm | 2315 |
| Front overhang | mm | 480 |
| Ground clearance(mast) | mm | 120 |
| Wheelbase | mm | 1700 |
| Overall length(with forks) | mm | 3630 |
| Travel (no load) | km/h | 15 |
| Lifting (full load) | mm | 280 |
| Gradeability(laden) | % | 15 |
| Service weight | kg | 5350 |
| Front tire | 7.00-12-12PR | |
| Rear tire | 18x7-8 | |
| Backrest height(from uper face of forks) | mm | 930 |
| Free lift | mm | 130 |
| Rear overhang | mm | 400 |
| Overhead guard clearance(from face of seat) | mm | 1020 |
| Lateral fork adjustment(outside of fork) | mm | 250/1100 |
| Tread(front) | mm | 1000 |
| Tread(rear) | mm | 980 |
| Min. interesecting aisle | mm | 2425 |
| Battery (voltage/capacity) | V/ah | 80/500(550) |
| drive motor SME | kw | 16.6/9 |
| lift motor SME | kw | 13.5/22 |
| Controller manufacturer | SME/ZAPI/CURTIS | |
Forward visibility
Repositioning the mast tie-bar provides optimal visibility when driving, loading and unloading.
Fork tip visibility
The low dashboard,relocated display and redesigned mast give the perator clear visibility right to the tip of the forks when working at low levels.
High strength head guard
Head guard with special-shaped steel pipe design, both beautiful and increase the overall strength.
Reliable accelerator
Built-in and rear working lamp using LED light source, higher brightness, longer service life, which can effectively reduce the cost of customer service.
The neutral safety function
Only the direction selecting switch put in neutral, they open the key switch to activate the Parking brake
Button type parking brake, easy operation and reliable, and can effectively avoid accidents.
Fork lock function(option)
Either start switch is open or not, as long as the operator is not in the operating position, the fork all operational functions are locked, so as to avoid the misoperation.
one year warranty

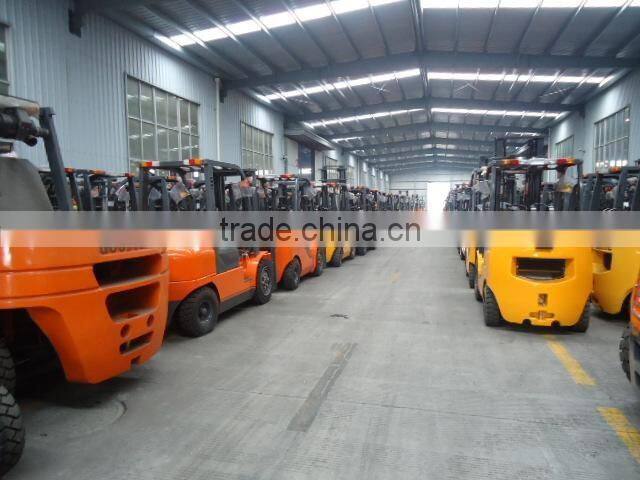

Factory overview
The company`s current plant covers an area of 200000 square meters, which mainly built with spare parts production shop, painting lines shop, assembly lines shop, property management etc, in total 80000 square meters, as well as modern office building and convenient living areas around 40000square meters.
Structure workshop
Precious cutting of various thickness of steels are ensured by applying one set of cutting machine, two sets of high-tech CNC plasma cutting machines and one set on NC flame cutting machine.

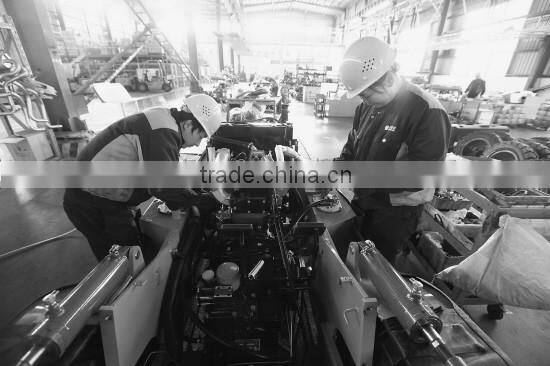

Assembly workshop
Several Welding Robots and O2C protection ensure and guarantee the welding requirements of structure components.
Respectively set up small ton, large ton and battery lift truck assemble lines ensure an yearly productivity of 20 units of a full range of forklift trucks.
Painting shop
High-performance ball blasting line ensures that all structural parts are perfectly processed before painting to obtain excellent adhesion of the paint and sheet-metal.
Three stoving vanish painting lines ensure an outstanding painting quality for the plants and the complete truck.
1. Do we provide after-sales service?
Yes, we provide.
2. How can you get after-sales service?
We can send our technicians to your country or we can contact in the internet about the problem of machine, then our technicians will tell you or your technician how to solve the problem.
Full product range:
Summary:
1. Economical engines for option both domestic and imported.
2. Simple and neat rows of piping design properly layout the hard and soft pipes which greatly reduced the pipeline pressure.
3.Entire truck adopted advanced ergonomic design with easy pivot steering.
4.High strength integral hood with thermal and sound insulating , tilt- cylinder built-in design an large operation space greatly improves the operator`s maximum comfort.
It is featured by reliable performance, easy operation, wide view, flexible steering, reliable braking , strong power, low noise, low pollution and beautiful appearance and many other advantages, are ideal facilities for indoor material handling.
It is widely used in airport, freight yard, warehouse , supermarket, light and textile industries,food processing plant and other places, its compact size appearance and small turning radius especially suitable for narrow spaces.
