Home > Consumer Electronics > LED Display > Indoor LED Display > P3 Smd Full Color 3 in 1 Led Unit Board With High Quantity

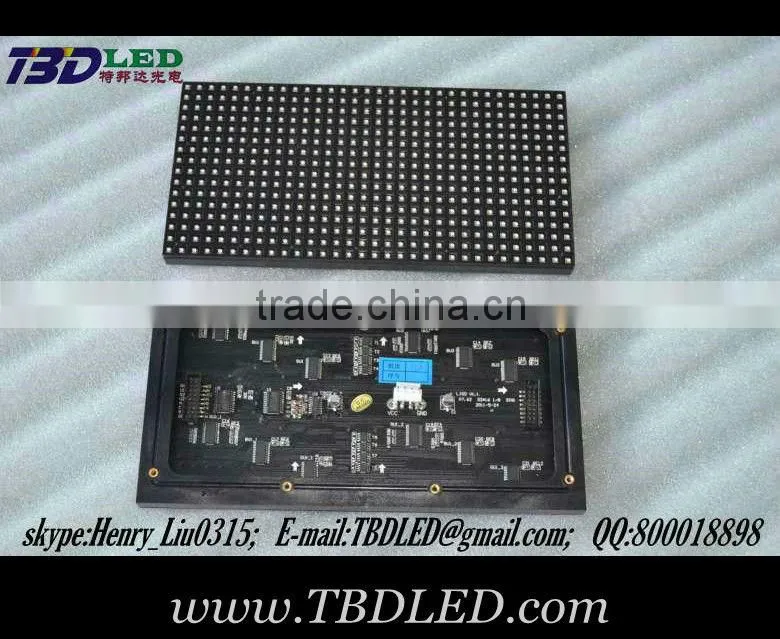

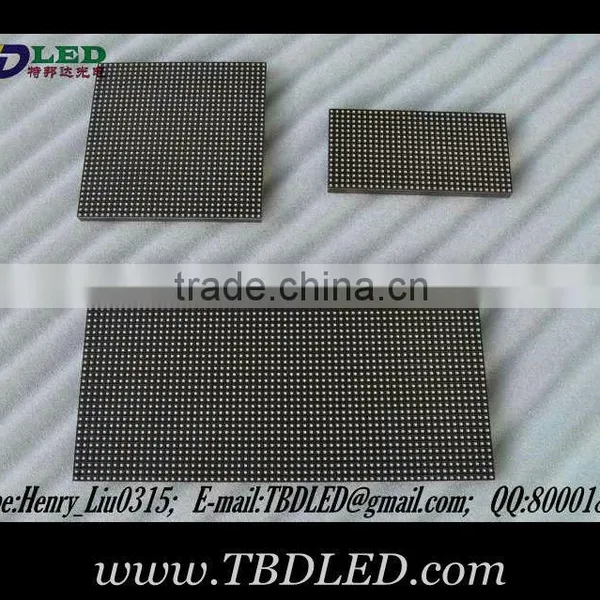

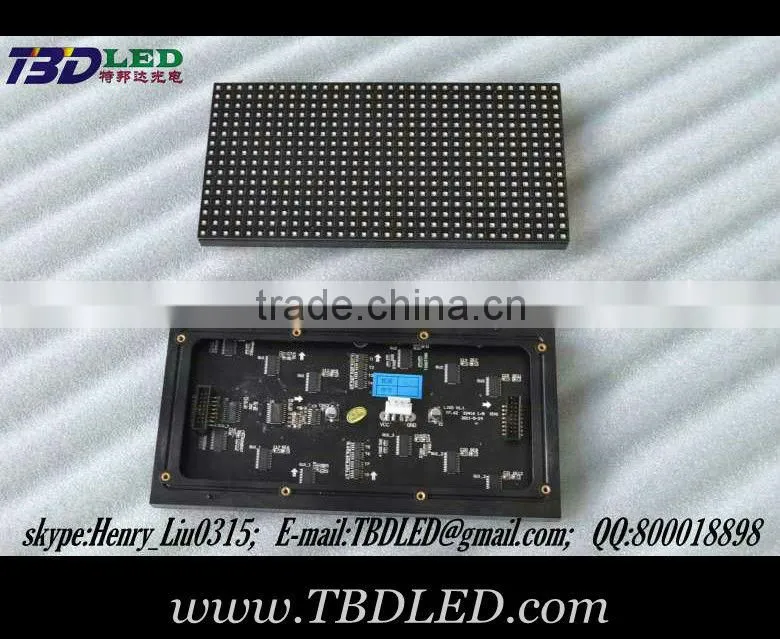

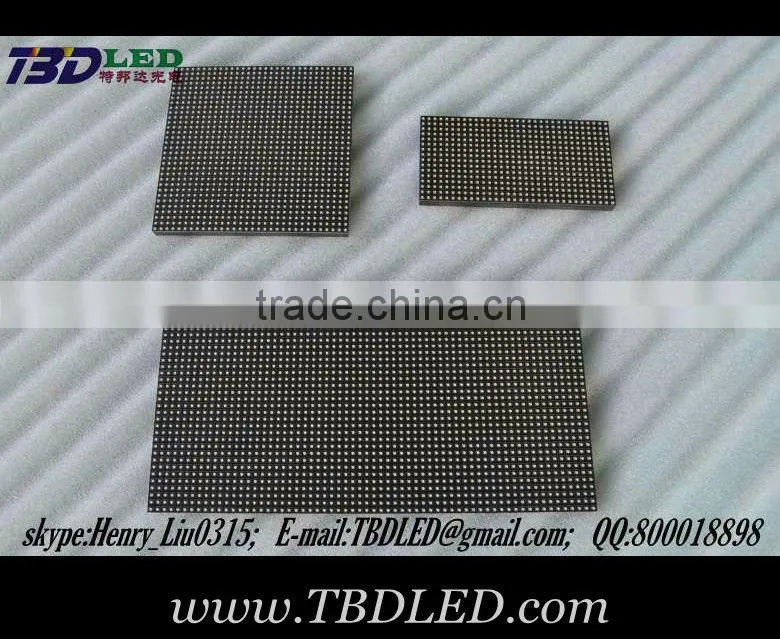

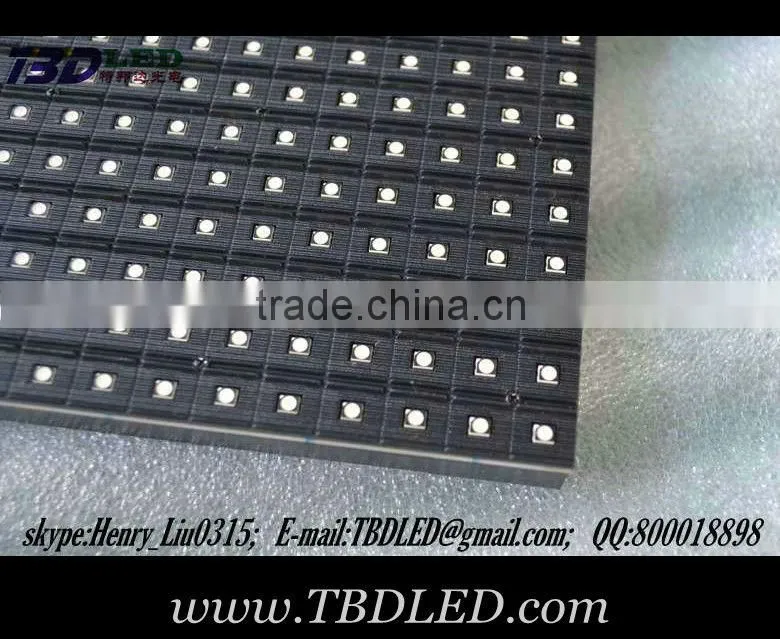

P3 Smd Full Color 3 in 1 Led Unit Board With High Quantity

US$ 1 - 25 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

TBD

Model Number:

P3RGB

Contact Supplier Request Quote Chat Now

Shenzhen TBDLED Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name TBD

Model Number P3RGB

Usage Indoor

Tube Chip Color Full Color

Display Function Animation

Pixels Other, 3

Screen Dimension 192*192 MM

Specifications

1-Direct factory,
2-low price, high quality,
3-good after-sales service,
4-simple operation/Programmable
5-OEM/ODM Acceptabl

TBD optoelectronics is specializing in the production of LED electronic display screen, LED unit board, the SMD full-color specifications have P3, P4, P5, P6, P7.62, P10,etc. welcome to visit our factory, Skype:Henry_Liu0315

PH3 table stick triad indoor full color technology parameter list:

Conventional LED indoor tiles display the main technical parameters
Project classification		PH3 full-color
Unit carton	Packaging form	triad
	LED encapsulation way	2121
	Physical point spacing	3 mm
	Unit board size	192 x 192 mm
	Cell body size	576 x 576 mm
	Physical density of the	111111 / m2
	Light color	1R1G1B
	Case resolution	192 x 192
	Body weight	18 kg
Main technical parameters	The best stadia	3m~25m
	Viewing Angle	Level > 140 % optional, vertical 100 ° or optional
	The average power consumption	<1800w/m2
	Maximum power consumption	<2600w/m2
	The control mode	Synchronization control
	Display card	DVI video card
	Drive way	1/16 of the scan
	In frequency	>60Hz
	The refresh frequency	>180Hz
	White balance, brightness	>2000cd/m2
	Working voltage (ac)
	Brightness control method	Induction automatic brightness adjustment: 16 level is adjustable Software manual regulation: adjustable level 100, 100
	Computer operating system	WIN98,WINXP,WIN2000,etc
	Video signal	The RF, S - Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc
	The control system	PCTV card (optional optional) + DVI display card, master card + optical fiber transmission (optional optional)
	Mean time between failures	> 5000 hours
	life	75000 ~ 10000 hours
	Rate of pixel is out of control	< 0.0002
	software	The LED studio
