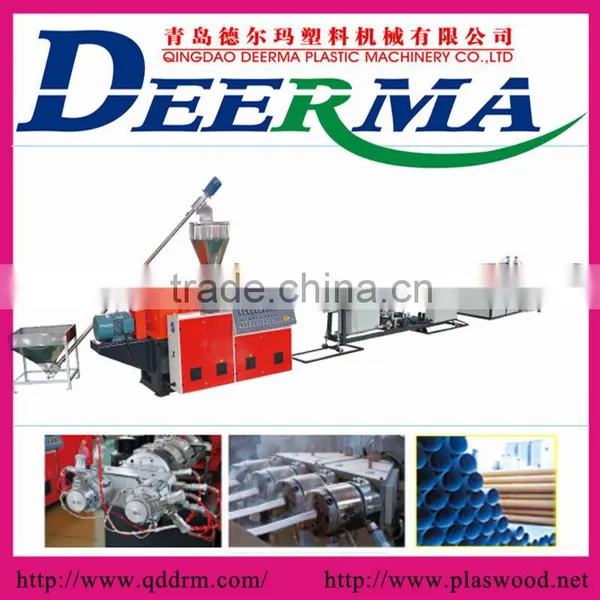

pvc extrusion machine/pvc electrical conduit making machine
A. What is the feature of our PVC Pipe Mahcine
1.High efficiency twin screw extruder.
2.It can produce pvc pipes.
3.The pipe diameter range:16-630mm or customes request.
4. The pvc pipe is mostly used in construction industry water supply, drain,electrical cable coating and under ground sweage treatment and so on.
B. Technical Parameters
Model number |
PVC-16/63 |
PVC-20/110 |
PVC-50/160 |
PVC-75/250 |
PVC-110/315 |
PVC-200/450 |
PVC-315/630 |
PVC-500/800 |
Pipe diameter |
16-63mm |
20-110mm |
50-160mm |
75-250mm |
110-315mm |
200-450mm |
315-630mm |
500-800mm |
Max output |
120kg/h |
120kg/h |
180kg/h |
300kg/h |
450kg/h |
650kg/h |
800kg/h |
1400kg/h |
Production rate |
1.5-15m/min |
0.8-8m/min |
0.5-5m/min |
0.4-4m/min |
0.3-2m/min |
0.1-1m/min |
0.07-0.7m/min |
0.05-1 m/min |
Extruder model |
SJZ-51/105 |
SJZ-51/105 |
SJZ-55/110 |
SJZ-65/132 |
SJZ-80/156 |
SJZ-92/188 |
SJZ-92/188 |
SJZ-105/220 |
Installed power |
45kw |
45kw |
55kw |
75kw |
105kw |
160kw |
205kw |
305kw |
Center height |
1000mm |
1000mm |
1000mm |
1000mm |
1100mm |
1100mm |
1200mm |
1350mm |
Installation area |
22*2.5*2.0m |
24*2.8*2.0m |
24*2.8*2.0m |
30*2.8*2.2m |
35*3.0*2.4 m |
36*3.0*2.4 m |
38*3.2*2.8 m |
42*3.5*3.2 m |
C. Main Composition
| Item | Quantity |
| SJSZ-51/105 conical twin screw extruder (Equipped with automatic feeding unit) | Two sets |
| Die and Mold | One set |
| Vacuum calibration unit | Two sets |
| Haul-off unit | One set |
| Cutter Unit | One set |
| Stacker | One set |
D. Application
The pvc pipe is mostly used in construction industry water supply, drain,electrical cable coating and under ground sweage treatment and so on.
E. Machines's Pictures
1.Twin screw extruder with Automatic feeding system -- SJZ xx series conical twin screw extruder: (The model according to the sizes of final products to choose) The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
| Main Motor | one set |
| Motor Brand | Siemens or as customer demand |
| Gear Box | one set |
| Distrubutor case | one set |
| Screw and Barrel | one set |
| Vacuum Pump | one set |
| Attomatic feeding system | one set |
2.Die Mould and Stock Mould (Matches or according to customer's drawings or samples)
| Mateial | Molding steel |
| Vacuum sizing set material | Cooper nature |
| Die heating ring material | stainless steel |
3.Vacuum Calibration Device
The main function of this machine is for calibrating and cooling pipe
4.Haul-off unit
5. Cutting Device
6.Stacker
7.Electric control system
| Temperatue meter | Omron |
| Contactor | Schneider |
| Relay | Schneider |
| Transducer | ABB |
| Power light, button | Schneider |
| Inveter | ABB |
A. SWP-360 crusher machine
B. SHRL-200/500 high-speed heat/cooling mixer machine
A. Trade Terms
Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before deliverying.
Delivery Time: 30-45 days
MOQ: 1set
B. Certification
C. Company Review
D. Importerd Electric Parts for your choice!
1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.
3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.
Why Choose Us
1.We are China Leading Plastic Machine Manufacturer.
2.Alibaba Assessed 7 years Domestic Supplier .
3.Inspected by the Inspection Institution of SGS Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price.
Our Partner
We have three this production lines in our showroom for other customer , welcome to visit our factory
