Polycarbonate sheet / plate extruder machine
| |
|
Main Technical Parameter of polycarbonte sheet plastic machine
| Main Extruder Dia | 120mm | 130mm |
| Main Screw L/D Ratio | 36:1 | 36:1 |
| Main Motor Power | 185kw | 250kw |
| Co-extruder Dia | 45mm | 45mm |
| Co-extruder L/D Dia | 30:1 | 30:1 |
| Co-extruder Motor Power | 22kw | 22kw |
| Thickness Of Sheet | 1.5-8mm | 2-10mm |
| Width Of Sheet | 1000-1560mm | 1220-2100mm |
| Capacity | 420kg/h | 600kg/h |
| Power Installed | 200kw | 300kw |
Main Composition of polycarbonte sheet plastic machine
| Item | Quantity |
Automatic dry feeding system |
one set |
120/35 Vented single screw extruder |
one set |
45/30 Co-extrusion extruder |
one set |
Hydraulic screen exchanger(for 120 extruder) |
one set |
Metering pump(for 120 extruder) |
one set |
Divider |
one set |
T-die molds |
one set |
Three-roll calender |
one set |
Vacuum Calibration unit |
one set |
The first haul-off unit and Side trimming machine |
one set |
Anneal oven |
one set |
Second haul-off unit |
one set |
Protective film covering unit |
one set |
Transverse cutter |
one set |
Transmission equipment |
one set |
Electrical control system |
one set |
Spare parts list |
one set |
Datum along with equipment |
one set |
Photos of Main Composition-polycarbonate sheet plastic machine
1.Automatic dry feeding system

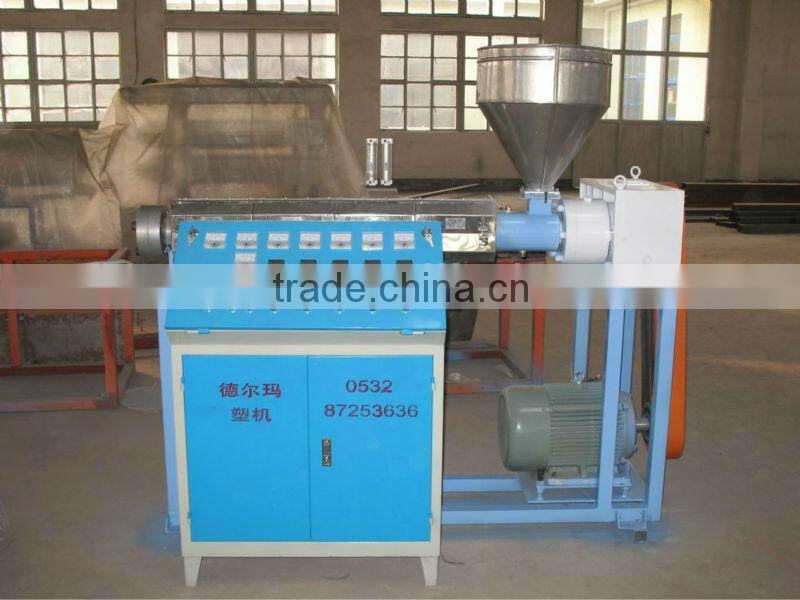

2.SJ120/30 single screw extruder + SJ45/30 single screw extruder
The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding
3.T-die mold
Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate

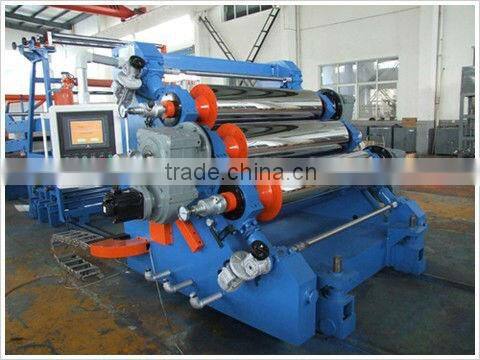

4.Three-rool Calender
5.Vacuum Calibration Unit
Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface
5.Haul-off Device
There are two tractors. The first one is of high powr, high reduction ratio, multi-roller type, well low-speed operation, high traction and is able to draw the plate up from the calibrating table evenly and synchronal.
6.Oven
The advanced large area conductive heating mode can effectively remove the stress of plate and further improve planeness of the plate.
7.The Second Haul-off Device and Cutting Device
The second Haul-Off is designed to remove stress, and in addition it is equipped with edge-cutting device to ensure the valid width and smooth cut of the edges.
Accurate instant length-fixed cutting and automatic up-down discharging system combined with alloy steel sharp blade realize high quality of cutting
8.Bracket
Application |
|

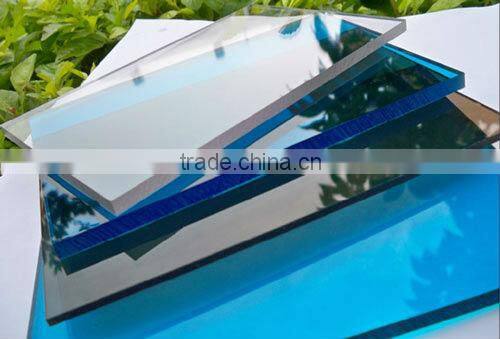

PC sheet be widely used in construction,package and adornment indusries etc. |
| Certification | ||||
|
| Services |
|
1.When machines arrived at buyer's factory,our company will arrange professional engineers to buyer's company,to helo install machines and train workers how to operate machines. 2. Warranty time of machines is 12months. |
