Specifications
1.HSUPA / HSDPA / UMTS / EDGE / GPRS / GSM2.Web Management Settings screen
3.VPN virtual net
4.Performance similar to B970

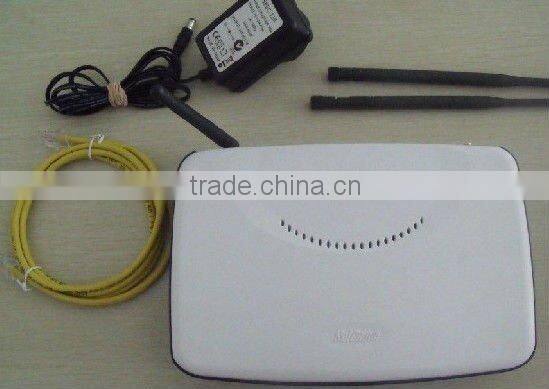

Brand New Bigpond 3G9wb 3G Router
TECHNICAL SPECIFICATIONS:
WAN INTERFACE
* HSPA x 1
LAN INTERFACE
* Ethernet x 4
WLAN
* MAC Address Filtering, WEP, WPA, IEEE 802.1X
* 10, 25, 50, 100mW @ 22MHz channel bandwidth Output power level can be selected according to the environment Standard
* IEEE 802.11g, backward compatible with 802.11b Encryption
* 64, 128-bit Wired Equivalent Privacy (WEP, WPA2) Data Encryption
Channels
* 11 Channels (US, Canada)
* 13 Channels (Europe, Australia)
* 14 Channels (Japan)
WLAN Data Rate
* Up to 54Mbps
WAN CONNECTION PPP
* Yes
Standard
* Comply with the 3GPP release 5 UMTS
specification:
Band
* Support Quad-band GSM/GRPS (850 / 900 / 1800 / 1900 MHz)
* Support tri-band UTMS/HSDPA/HSUPA (850 / 1900 /2100 MHz)
Data Rate
* HSUPA (up to 1.9 Mbps uplink)
* HSDPA and UMTS (up to 7.2 Mbps downlink and 384 Kbps uplink)
* EDGE / GPRS / GSM (up to 247 Kbps)
Antenna Type
* Removable antenna
MANAGEMENT
* SNMP, SNTP, Telnet, Web-based management, Configuration backup and restoration
* Firmware upgrade via HTTP, TFTP client and server, or FTP server
ROUTING FUNCTIONS
* Static route, NAT/PAT, DMZ, DHCP Client/
Server/Relay, DNS Proxy, DDNS SECURITY FUNCTIONS
* Stateful Packet Inspection, Packet filtering,
Denial Of Service protection, Management Authentication protocols
* PAP, CHAP
VPN
* PPTP/L2TP/IpSec pass-through
LED
* Power, LAN 4, LAN 3, LAN2, LAN 1, Wi-Fi, Internet, 3G, 2G, Signal Strength for Low, Med and High LEDs
POWER
* External power adapter
* 100-240Vac to 12Vdc /1.5A
ENVIRONMENTAL CONDITIONS Operating temperature
* 0 ~ 50 degrees Celsius
Relative humidity
* 5 ~ 90% (non-condensing)
DIMENSIONS
* 205 mm (W) x 47 mm (H) x 145 mm (D)
soho tri-band UTMS/HSDPA/HSUPA 3G9WB bigpond 3G wifi router
