M4509 Three Lobe Roots Type Blower
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Cast Iron
Mounting:
Other, Belt
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO SHANGHAI NINGBO etc.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Electric Current Type
AC
Blade Material
Cast Iron
Mounting
Other, Belt
Place of Origin
Shandong, China
Brand Name
Greentech
Model Number
M4509
Power
7.5~45KW
Voltage
380~440V
Air Volume
6.8~18.3m3/min
Speed
0~98KPA, 2000~4000RPM
Certification
CE, Other, CE, ISO9001:2008
After-sales Service Provided
Overseas third-party support available
M4506 three lobe roots type blower
Product Description

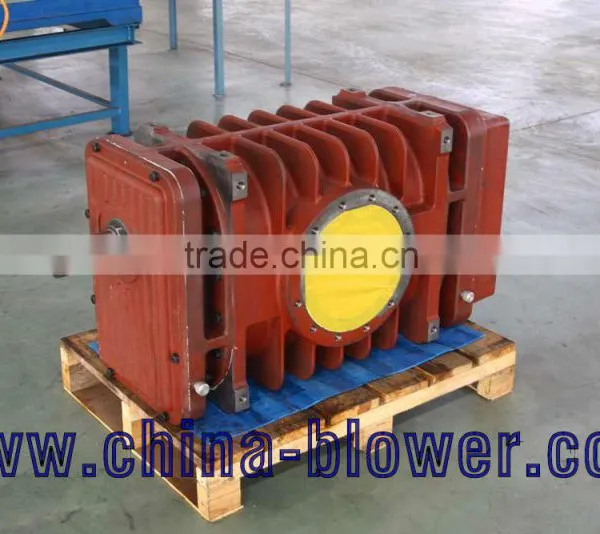

M4509 three lobe roots type blower

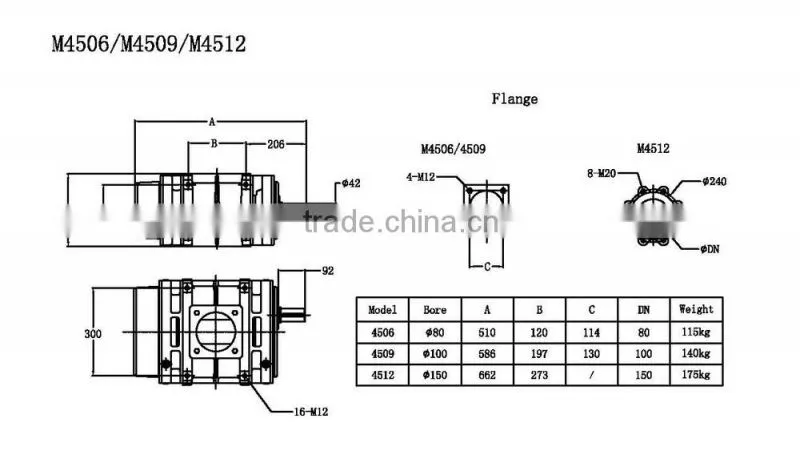

Bore: 100mm
Flow capacity: 6.8~18.3m3/min
Pressure rise: 9.8kPa~98.8kPa
Vacuum: -49kPa
Packaging & Shipping
Iron case suitable for sea transport
FAQ
skype: guanglin_jiang
Company Information
Series M Roots Blower (also called Positive Displacement Blower - PD Blower, or Rotary Blower) with tri-lobe are heavy duty style new products which technology is from America. It is the replacement for Duroflow models of Gardner Denver, RAM/RCS models of Dresser Roots, and RBS models of Robuchi.
Features:
· Low noise tri-lobe rotor
· Noise-reduction know-how application for casing
· Integral-shaft ductile iron impellors
· Dual splash lubrication
· Over sized cylindrical roller bearings
· Hardened teeth face for precision helical timing gear, taper-lock shaft mounting
· Versatile configuration
· Piston ring air seals
· Lip type viton oil seals
· Air cooling
· Automatic belt tensioner and integrated discharge silencer base frame application for the blower package.
Duty:
Pressure to 103 KPa / Vacuum to -51 KPa
Flow: 4.4~102.8m3/min
Flow: 4.4~102.8m3/min
Application:
Widely used in waste water treatment, petro-chemical, cement, power, metallurgy and pneumatic conveying diverse industries.
Our Services

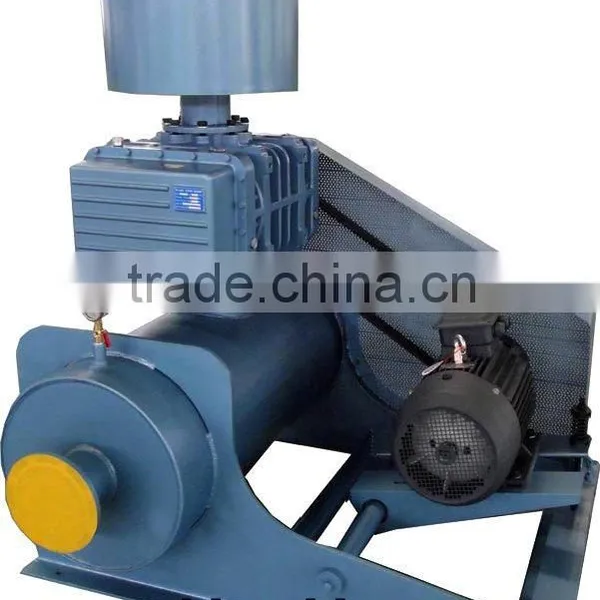

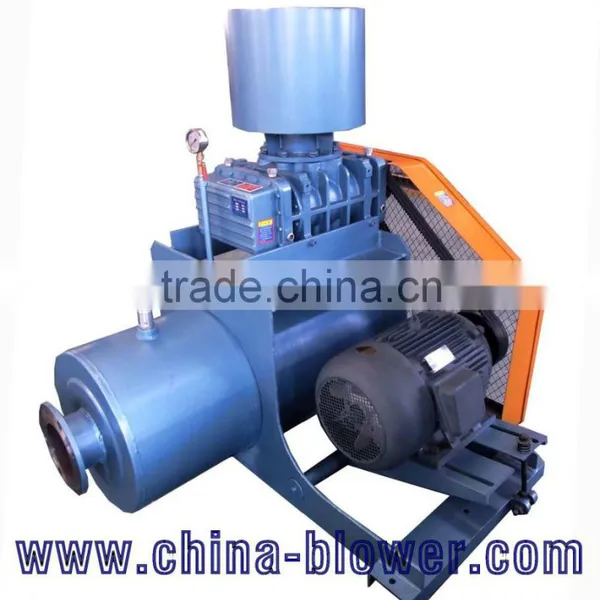

Standard accessories include:
bare shaft blower, pulley, pulley cover, belts, inlet silencer with filter, outlet silencer, check valve, safety valve, pressure gauge, flexible joint and anchor bolts.
Greentech International (Zhangqiu) Co., Ltd
Add: Mingshui Economic Development Zone, Zhangqiu City, Shandong, China 250200
Tel: 86-531-83117088
Fax: 86-4006358835 EXT. 15523
Cell: 86-15306415523
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2011
Factory Size
Below 1,000 square meters
Total Employees
101 - 200 People
